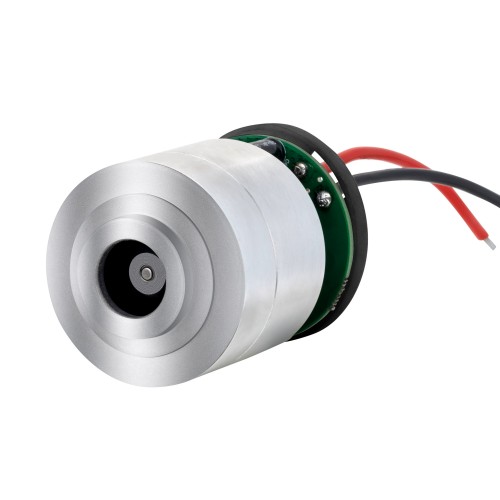

HJ-BLD45
Zhong Hua Jiang
Availability: | |
---|---|
Quantity: | |
Electrical category | Value |
Rated voltage | 12VDC |
Voltage operating range | 9V~16.5VDC |
Rated high/low power | 145±5%W-36±5%W |
Maximum operating current | 10A |
Low power consumption current | ≤30uA |
Starting voltage | 9VDC |
Rated speed | Low range 36W:63000rpmHigh range 140W:95000rpm |
Functional requirements | 1. The switch on/off is controlled by a battery pack microswitch. |
2. The switch between high and low gears is controlled by PWM with a 4PIN signal line led out from the motor interface (4PIN is FG PWM EN GND respectively). | |
3. During normal operation, FG outputs a speed signal and the motor outputs a square wave (TTL level) per revolution. | |
4. Control method: PWM speed regulation 40W-140W. | |
5. Shutdown requirements: with brakes. | |
6. PWM speed regulation (duty cycle 10% -100%). | |
7. Life test ≥ 1000H. | |
8. tartup method: default off state when powered on, low power consumption 30 μ APWM control mode activated |
Protection function | Protection trigger condition generates | Motor protection |
Undervoltage protection | 8VDC±0.5V | |
Overvoltage protection | 16.5VDC±0.5V | |
Overcurrent protection | 17A | |
Motor short circuit protection or phase line short circuit protection | √ | |
Blocking protection | blocking holes 3-5 seconds shutdown | |
Overspeed protection | >160000rpm@0.3S;>120000rpm@4S |
