CNC Spindle Motor

 Types of CNC Spindle Motors

CNC spindle motors are the core of precision machining. They drive cutting tools with accuracy and speed, ensuring excellent performance in every engraving or milling process. Understanding their types is essential for choosing the right motor for your CNC machine. The two main categories are air-cooled spindle motors and water-cooled spindle motors.

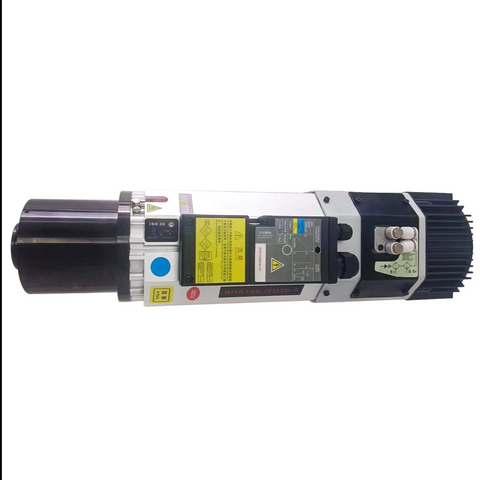

 Air-Cooled Spindle Motors

Air-cooled spindle motors use an internal fan or air circulation system to cool the motor body. The airflow removes heat generated during operation, maintaining consistent performance. These motors are popular for woodworking, plastic engraving, and medium-duty CNC applications due to their simplicity and durability.

 Key Advantages

• Simple and Compact Design
  Air-cooled spindle motors have fewer components, which reduces the risk of failure.

• No External Cooling Equipment
  They don’t require water pumps, pipes, or coolant tanks, making setup easier and more affordable.

• Low Maintenance Costs
  Maintenance is straightforward since there are no fluids to monitor or replace.

• Reliable for Long-Term Use
  For example, Zhong Hua Jiang air-cooled spindle motors feature patented designs that ensure long working life and stable temperature control. These spindles deliver consistent power and precision, ideal for engraving and light milling tasks.

 Water-Cooled Spindle Motors

Water-cooled spindle motors use circulating coolant to manage heat efficiently. The coolant flows through internal channels, absorbing excess heat and transferring it away from the motor body. This process maintains a lower operating temperature, ensuring smooth and quiet performance, especially under high-load conditions.

 Key Advantages

• Superior Cooling Efficiency
  Water cooling is more effective at controlling temperature, even during continuous heavy-duty machining.

• Quiet Operation
  Unlike air-cooled motors, these models operate silently since they lack a built-in fan.

• Extended Bearing Life
  Lower temperatures help preserve bearing integrity, resulting in longer service life and smoother performance.

• High-Speed Stability
  Water-cooled spindles can run at higher RPMs without overheating, making them perfect for metal engraving, precision milling, and industrial cutting tasks.

 Applications of CNC Spindle Motor

A CNC spindle motor is one of the most essential components in computer numerical control (CNC) machines. It is responsible for driving the cutting tools that shape, drill, engrave, or mill materials with high precision. Because of its accuracy, power, and efficiency, the CNC spindle motor is widely used across many industries that require precision machining and automation.

 1. CNC Milling Machines

In CNC milling, spindle motors rotate cutting tools at high speed to remove material from metal, wood, or plastic workpieces. The spindle’s speed and torque determine the cutting quality and surface finish. High-speed air-cooled or water-cooled spindle motors are commonly used for:

• Aluminum and steel part production

• Mold and die manufacturing

• Custom metal fabrication

 2. CNC Engraving Machines

CNC engraving machines rely on spindle motors for detailed carving and surface marking. They are ideal for:

• Jewelry engraving

• Woodcraft decoration

• Signboard and nameplate making

• PCB (Printed Circuit Board) engraving

A high-precision spindle motor ensures smooth engraving lines and stable operation even at micro-scale detail levels.

 3. CNC Routers

CNC routers, used in woodworking and plastic cutting, use spindle motors to perform various operations such as cutting, drilling, and shaping. Common applications include:

• Furniture manufacturing

• Cabinet making

• Acrylic cutting

• 3D relief carving

Air-cooled spindle motors are often preferred for their easy maintenance and long lifespan.

 4. CNC Grinding Machines

Spindle motors in CNC grinding machines provide the rotation needed for the grinding wheel to achieve smooth finishes and tight tolerances. They are widely used in:

• Precision tool manufacturing

• Automotive component finishing

• Bearing and gear production

High-speed spindle motors help maintain consistent grinding accuracy and reduce vibration.

 5. CNC Lathe Machines

In CNC lathes, spindle motors rotate the workpiece while cutting tools move along it. This setup is perfect for:

• Shaft and cylinder part machining

• Thread cutting

• Turning metal or plastic rods

The spindle motor’s stability directly affects roundness, accuracy, and surface finish.

 6. CNC Drilling and Boring Machines

Spindle motors are crucial for CNC drilling and boring machines used to make precise holes in various materials. Applications include:

• Automotive parts

• Aerospace components

• Electronic device housings

The spindle motor’s torque and speed must be precisely controlled for accurate depth and diameter.

 7. CNC Dental and Medical Equipment

In the medical and dental industries, small high-speed spindle motors are used in compact CNC milling systems for:

• Dental prosthetics fabrication

• Surgical instrument production

• Medical device prototyping

 Zhong Hua Jiang CNC Spindle Motor

The Zhong Hua Jiang CNC Spindle Motor represents advanced engineering and precision craftsmanship in the field of CNC machinery. Designed and manufactured by Huajiang, a company with over 20 years of experience in spindle motor research and development, Zhong Hua Jiang spindle motors have earned a strong reputation for their high performance, durability, and stability in a wide range of industrial applications.

 High-Quality Manufacturing

Founded in 2000, Huajiang established the “Zhong Hua Jiang” brand in 2018 to bring professional-grade spindle motors to the global market. Each spindle motor is built using high-grade materials, advanced production techniques, and strict quality control standards to ensure long working life and reliable performance.

The company holds several patents for innovative air-cooled spindle motor designs, making Zhong Hua Jiang one of the leading brands in CNC motion technology.

 Advantage of Zhong Hua Jiang Spindle  Motor

•  High Precision and Stability




  Every spindle motor is dynamically balanced to reduce vibration and ensure smooth operation even at high speeds.

•  Long Service Life


  Zhong Hua Jiang spindle motors can operate continuously for up to 2 years when used 8 hours per day, thanks to durable bearings and efficient cooling systems.

•  Multiple Cooling Options


  Available in air-cooled and water-cooled models to suit different machining environments and materials.

•  Wide Speed Range


  Supports variable frequencies for flexible speed control, allowing compatibility with a wide range of VFDs (Variable Frequency Drives).

•  Low Noise & Vibration


  Designed with precision balancing technology for quiet, stable, and energy-efficient operation.

•  High Torque & Power Output


  Delivers consistent performance for cutting, engraving, milling, and drilling across metals, wood, plastics, and composite materials.

 Working Life of Zhong Hua Jiang Spindle  Motor

The Zhong Hua Jiang CNC Spindle Motor is designed for long-term, stable performance in demanding industrial environments. Built with high-quality materials, precision bearings, and advanced cooling systems, it ensures reliable operation over extended periods of use.

Under normal operating conditions, the working life of a Zhong Hua Jiang CNC spindle motor is up to 2 years when used for 8 hours per day. This impressive lifespan is the result of Huajiang’s continuous focus on innovation, strict quality control, and the use of patented spindle motor technology.

 Factors Ensuring Long Service Life

• High-Quality Bearings
  Premium-grade bearings reduce friction and wear, extending the lifespan of the spindle motor even under heavy workloads.

• Efficient Cooling System
  Available in both air-cooled and water-cooled designs, the spindle motors maintain stable operating temperatures, preventing overheating and prolonging service life.

• Precision Manufacturing
  Every Zhong Hua Jiang spindle motor undergoes dynamic balancing to minimize vibration, ensuring smoother operation and reduced mechanical stress.

• Stable Electrical Performance
  When paired with a compatible VFD (Variable Frequency Drive), the motor maintains consistent speed and torque, protecting it from voltage fluctuations and overload.

 Maintenance Tips of Zhong Hua Jiang Spindle  Motor

Proper maintenance is essential to keep your CNC spindle motor operating efficiently and to extend its working life. By following these simple yet effective maintenance practices, you can ensure long-term performance and avoid unnecessary downtime or repair costs.

 1. Keep the Spindle Motor clean

Regularly clean the spindle motor to remove dust, chips, and debris. Accumulated particles can affect heat dissipation, cause imbalance, and damage internal components. Always use dry compressed air or a soft cloth for cleaning—avoid using moisture near the motor.

 2. Inspect and Replace Bearings

Bearings are crucial to the smooth rotation of the spindle. Over time, they may wear out due to continuous use. Regularly check for unusual noise, vibration, or heat, and replace bearings promptly if any issue is detected to prevent further damage.

 3. Use Proper Cooling Methods

Choose the right cooling system based on your environment and workload.

• Air-cooled motors are suitable for general CNC applications.

• Water-cooled motors are ideal for high-speed or heavy-duty operations where extra cooling is needed.
  Proper cooling prevents overheating and ensures stable operation.

 4. Operate Within Rated Limits

Never run the spindle motor beyond its rated speed or load capacity. Overloading or overspeeding can lead to excessive heat, bearing wear, and potential motor failure. Always follow the manufacturer’s specifications for safe operating parameters.

 5. Set the VFD Correctly

A Variable Frequency Drive (VFD) controls the spindle’s speed and torque. Make sure the VFD parameters are set correctly to avoid overcurrent, voltage spikes, or overheating. Proper tuning of the VFD also improves energy efficiency and protects the spindle motor from electrical damage.

By maintaining a clean environment, monitoring bearing conditions, using suitable cooling, and configuring the VFD properly, you can significantly extend the lifespan of your CNC spindle motor. Consistent care not only improves machine performance but also ensures the reliability and durability of your Zhong Hua Jiang CNC spindle motor for years to come.
