ER11 65mm 1.5KW 4 Bearings 110V/220V Quiet Water Cooled CNC Spindle Motor for CNC Router Engraving Machine

ER11 65mm 1.5KW Water Cooled Spindle Motor Video

Zhong Hua Jiang CNC Catalogue PDF Download

  CNC Router Machine Catalogue 2025.pdf

ER11 65mm 1.5KW Water Cooled Spindle Motor for Sale

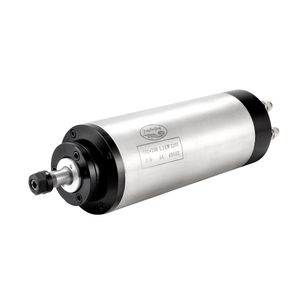

The Zhong Hua Jiang ER11 65mm 1.5KW water cooled spindle motor is designed for CNC routers, engraving machines, desktop CNC systems, woodworking machines, acrylic cutting equipment, PCB milling, and light-duty soft metal machining. It provides a compact spindle solution for buyers who need stable speed, low noise, and precise cutting performance in a smaller 65mm round body.

This model features a 1.5KW rated power output, ER11 collet connection, 110V/220V voltage options, 8A current, 400Hz rated frequency, and a 10,000–24,000 RPM speed range. The water-cooled structure supports continuous machining by controlling spindle temperature during long engraving and cutting cycles.

For B2B buyers, machine builders, distributors, and OEM projects, this ER11 1.5KW CNC water cooled spindle motor offers a practical balance of compact size, precise tool holding, easy VFD integration, and dependable supply. It is suitable for small CNC router upgrades, batch machine assembly, replacement spindle supply, and customized CNC solutions.

When matched with a suitable 400Hz VFD inverter, cooling pump, water hose, and correctly grounded wiring, this spindle motor helps improve machining stability, reduce vibration, and deliver consistent surface finish on wood, acrylic, plastics, PCB materials, and soft metals.

Technical Specifications of ER11 1.5KW Water Cooled Spindle Motor

Key specifications include 1.5KW rated power, ER11 collet connection, Φ65mm round body, 110V/220V voltage options, 8A current, 400Hz frequency, 10,000–24,000 RPM speed range, water cooling, approximately 3KG weight, and recommended 400Hz VFD control for CNC engraving machines.

Applications & Use Cases for CNC Engraving

Wood CNC Engraving and Cutting

Acrylic CNC Engraving and Cutting

Soft Metals CNC Machining

Features of ER11 65mm 1.5KW Water Cooled Spindle Motor

Zhong Hua Jiang ER11 65mm 1.5KW Water-Cooled Spindle Motor features an intelligent control system and is designed for simple, user-friendly operation, suitable for users of all skill levels.

This is a Φ65mm round water-cooled spindle motor with ER11 collet chuck. It delivers 1.5KW of power, supports 10000–24,000 RPM speed range, and achieves runout less than 0.005mm. Equipped with four upgraded high-precision steel bearings for up to 3× longer lifespan than standard models, it incorporates advanced dynamic balancing technology for minimal noise and vibration.

The water-cooled design provides excellent heat dissipation, significantly lower operating temperatures, and much quieter performance, making it ideal for long-duration, high-precision engraving and cutting.

Key Features of ER11 1.5KW Water Cooled CNC Spindle Motor

VFD Speed Control and Easy Operation

The spindle is designed for VFD speed control, allowing operators to adjust spindle speed from 10,000 to 24,000 RPM according to cutter diameter, feed rate, and material requirements.

ER11 High-Precision Collet System

The ER11 collet system provides secure tool clamping for small-diameter engraving cutters, helping reduce runout and improve accuracy for fine carving, PCB milling, acrylic cutting, and detailed CNC work.

VFD / PLC Speed Control Compatibility

The spindle can be integrated with a compatible 400Hz VFD and CNC control system. Speed can be adjusted through VFD parameters, analog signal, or controller output depending on the machine configuration.

Reliable 110V/220V Electrical Configuration

The 110V/220V configuration and 8A current rating support common CNC workshop power setups. Correct wiring, grounding, and VFD parameter settings are important for stable performance and spindle protection.

10,000–24,000 RPM Speed Regulation

The 10,000–24,000 RPM speed range supports high-speed engraving, cutting, drilling, and finishing operations across wood, acrylic, plastics, PCB boards, and light non-ferrous metals.

Optimized Φ65mm Water-Cooling Design

The Φ65mm × 254mm water-cooled body and approximately 3KG weight provide compact installation while maintaining efficient heat dissipation and reduced operating noise during extended CNC machining.

Advantages of 1.5KW Water Cooled CNC Spindle Motor

Advanced Dynamic Balance Design

Innovative & advanced dynamic balancing technology

Effectively reduce the noise

Increase stability in the working process

Extended Working Life

Authentic 4pcs upgraded

Superior durability steel bearings

All copper lengthening coil of rotor

Working life can reach 2 years for 8 hours / day

Our Spindle Motor	Other Spindle Motor
Runout off less than 0.005mm	Runout off 0.05mm

High Accuracy and Concentricity

Further processing for spindle motor

Runout off of the spindle motor is less than 0.005mm

10 times precision beyond normal spindle motor

 10 TIMES PRECISION RUNOUT OFF

Easy and Fast Installation

Equipped with pre-soldered aviation wire and power wire for quick installation

Package of ER11 1.5KW Water Cooled Spindle Motor

Whether you're a hobbyist or a professional CNC workshop, we have the ideal Zhong Hua Jiang water cooled spindle motor solution for you. Our water cooled spindle motors support a wide range of projects, from intricate engravings to heavy-duty cuts, suitable for various skill levels. If the standard configuration doesn't meet your needs, please feel free to contact our professional sales team to customize the perfect water cooled spindle motor solution for your projects.

Recommended Water Cooled Spindle Motor Models

Besides the Zhong Hua Jiang 1.5KW ER11 water cooled spindle motor, we offer a variety of other water cooled spindle motor models to suit diverse CNC project needs. Our lineup includes the 0.8KW water cooled spindle motor for compact precision tasks, the 1.5KW/2.2KW water cooled spindle motor for high-performance engraving and cutting on wood, acrylic, and soft metals, the 3KW water cooled spindle motor for professional projects, and specialized air-cooled spindle options for enhanced versatility.

ER11 0.8KW Water Cooled Spindle Motor

ER20 2.2KW Water Cooled Spindle Motor

ER20 3KW Water Cooled Spindle Motor

ER11 1.5KW Water Cooled Spindle Motor Kits

ER20 2.2KW Water Cooled Spindle Motor Kits

ER20 3KW Water Cooled Spindle Motor Kits

Company Profile: CNC Spindle Motor Manufacturer

CNC Spindle Motor Manufacturer

Why Choose Zhong Hua Jiang

Quality Assurance Superior quality performance Strict quality control	Patents and Certifications Several patents for air-cooled spindle motors	Additional Brand Value Brand value highly recognized by the market
Reasonable Price Direct factory sales Highly cost performance	Full Time Service Professional technical support Close and quick customer service	Fast and Reliable Delivery Fast and efficient delivery Real-time tracking and updates

Leading CNC Machine and CNC Spindle Motor Manufacturer

Manufacturer Since 2000

Our CNC Product Range

CNC Router Machines

Our state-of-the-art Zhong Hua Jiang CNC router machines, including models like the 3018, 3020, 3040, and 6090, guarantee precision, efficiency, and reliability, essential for high-quality engraving and cutting projects.

CNC Spindle Motors

Power your CNC projects with our advanced spindle motors, including air-cooled and water-cooled options, designed to meet rigorous performance standards for diverse materials.

CNC Accessories

Enhance your CNC operations with our precision accessories, such as limit switches, Z probes, and emergency stop buttons, perfect for ensuring safety and accuracy.

Electrical Wires

Ensure reliable and safe connections with our double-shielded cables and shielded chain cables, designed to minimize signal interference and enhance durability.

Stepper Motors

Drive your CNC machine with our high-performance stepper motors, offering precise control and robust operation for consistent project outcomes.

Product Certification

Customer Feedback

FAQ: ER11 65mm 1.5KW Water Cooled Spindle Motor

What is the ER11 65mm 1.5KW water cooled spindle motor used for?

It is used for CNC engraving, woodworking, acrylic cutting, PCB milling, plastic machining, sign making, small CNC router upgrades, and light-duty soft metal processing such as aluminum or brass finishing.

What are the main specifications of this 1.5KW CNC spindle motor?

The main specifications include 1.5KW power, ER11 collet, Φ65mm round body, 110V/220V voltage options, 8A current, 400Hz frequency, 10,000–24,000 RPM speed range, water cooling, and approximately 3KG weight.

What VFD should I use with this spindle motor?

This spindle should be used with a suitable 400Hz VFD inverter. The VFD must be configured according to the spindle voltage, current, rated frequency, maximum speed, acceleration time, and control method before operation.

Why choose a water cooled spindle motor for CNC engraving?

A water cooled spindle offers better heat dissipation and lower operating noise than many air-cooled options, making it suitable for long engraving cycles, fine detail work, and workshops that require stable spindle temperature.

What materials can this ER11 1.5KW spindle machine?

It can process wood, MDF, acrylic, PVC, plastics, PCB board, plexiglass, and light soft metals when the correct cutter, feed rate, speed, cooling, and machining parameters are used.

Can I purchase this 1.5KW water cooled spindle motor in bulk?

Yes. Zhong Hua Jiang supports bulk orders for distributors, resellers, machine builders, repair suppliers, and CNC equipment integrators. We can provide stable supply, factory-direct pricing, and export support.

Do you provide OEM or customized spindle motor service?

Yes. OEM and ODM options can include logo, packaging, voltage configuration, cable length, bearing specification, accessory matching, and other project-based requirements for B2B customers.

What is the MOQ for this spindle motor?

Small trial orders are available for standard models. MOQ for OEM or customized orders depends on voltage, packaging, labeling, and configuration requirements.

What warranty and after-sales support do you provide?

Zhong Hua Jiang provides a 12-month warranty for spindle motors and accessories, with technical support for installation, VFD parameter setup, wiring, troubleshooting, and distributor service documentation.
