ER11 1.5KW 65mm 110V/220V Quiet Water Cooled Spindle Motor Kit With VFD for CNC Router Engraving Machine

 1.5KW Water Cooled Spindle Motor VFD Kit Video

 CATALOGUE OF ZHONG HUA JIANG (PDF Download)

  CNC Router Machine Catalogue 2025.pdf

 ER11 65mm 1.5KW Water Cooled Spindle Motor VFD Kit for Sale

The Zhong Hua Jiang ER11 65mm 1.5KW water cooled spindle motor VFD kit is a ready-to-install CNC spindle solution for engraving, cutting, carving, and light milling. The kit combines a Φ65mm 1.5KW round water cooled spindle motor with a matched 1.5KW VFD inverter, clamp mount, water pump, water hose, ER11 collets, drill bits, aviation wire, power wire, and wrenches.

This 1.5KW CNC spindle motor kit is designed for CNC routers, desktop CNC machines, engraving machines, woodworking machines, acrylic cutting systems, PCB engraving, and small workshop production. It supports stable 10,000–24,000 RPM operation and helps machine builders reduce sourcing time by receiving the spindle, inverter, cooling parts, and accessories in one matched package.

For B2B buyers, distributors, OEM machine builders, and professional CNC users, the ER11 1.5KW water cooled spindle motor kit offers compact size, quiet operation, reliable water cooling, accurate speed control, and convenient installation. The VFD is supplied as part of the kit to simplify spindle speed setup and improve integration efficiency.

Zhong Hua Jiang supports sample orders, bulk purchasing, OEM customization, distributor cooperation, and export supply for CNC spindle motor kits. Buyers can request technical support for wiring, VFD parameter setup, spindle matching, and CNC machine integration.

 Technical Specifications of 1.5KW Spindle Motor VFD Kit

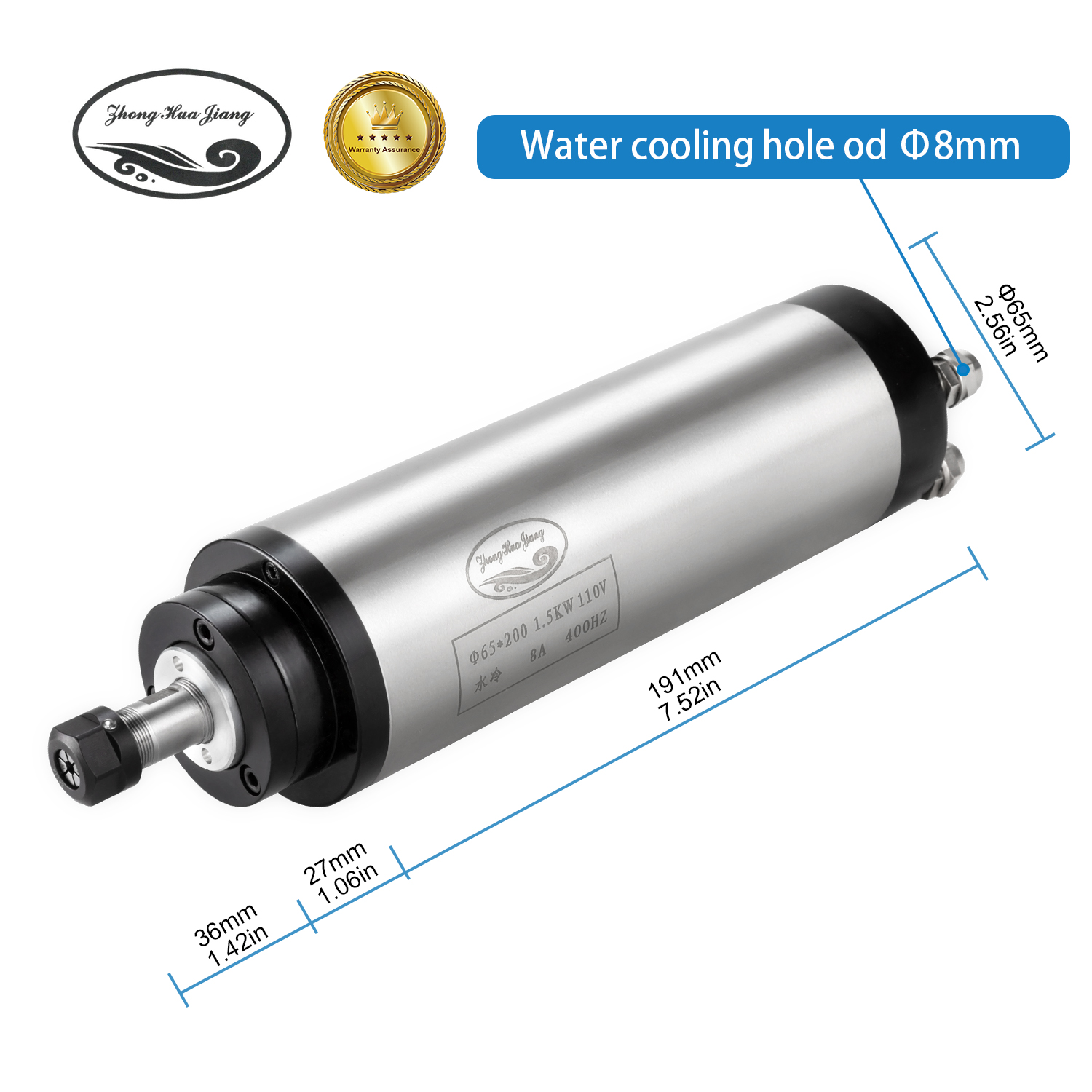

Key kit specifications include a Φ65mm 1.5KW round water cooled spindle motor, 1.5KW VFD inverter, Φ65mm clamp mount, 110V water pump, 5-meter water hose, ER11 collets from 1mm to 7mm, drill bits from 0.8mm to 3mm with 1/8-inch shank, aviation wire, power wire, and wrenches. The spindle body size is Φ65mm × 267mm with approximately 3.6kg spindle weight, suitable for 10,000–24,000 RPM CNC engraving and cutting.

 Applications & Use Cases for CNC Engraving

Wood CNC Engraving and Cutting

Acrylic CNC Engraving and Cutting

Soft Metal CNC Engraving

 Features of ER11 1.5KW Water Cooled Spindle Kit

The ER11 65mm 1.5KW water cooled spindle motor VFD kit is built for users who need a compact, quiet, and stable CNC spindle package with matched accessories. The water cooled design supports longer machining cycles than small air cooled spindles, while the ER11 collet system provides accurate clamping for small engraving and cutting tools.

The included VFD inverter allows speed adjustment for different materials and machining tasks. With the spindle, inverter, cooling components, collets, wiring, and wrenches supplied together, this kit is suitable for CNC router upgrades, OEM CNC machine assembly, workshop replacement, and distributor stocking.

Zhong Hua Jiang ER11 65mm 1.5KW Water-Cooled Spindle Motor features an intelligent control system and is designed for simple, user-friendly operation, suitable for users of all skill levels.

This is a Φ65mm round water-cooled spindle motor with ER11 collet chuck. It delivers 1.5KW of power, supports 10,000–24,000 RPM speed range, and achieves runout less than 0.005mm. Equipped with four upgraded high-precision steel bearings for up to 3× longer lifespan than standard models, it incorporates advanced dynamic balancing technology for minimal noise and vibration.

The water-cooled design provides excellent heat dissipation, significantly lower operating temperatures, and much quieter performance, making it ideal for long-duration, high-precision engraving and cutting.

Key Features of Water Cooled CNC Spindle Motor

Pre-Configured VFD Control

Zhong Hua Jiang ER11 1.5KW Quiet Water Cooled Spindle Motor kit features an intelligent control system, designed for ease of operation, making it accessible for users of all skill levels.

ER11 Precision Collet System

Equipped with an ER11 collet, ensuring secure tool holding, minimal runout, and precise machining for consistent results.

VFD / CNC Controller Compatibility

Integrated with programmable logic controller (PLC) compatibility, allowing easy adjustments for speed (10,000–24,000 RPM) and other parameters to suit various project needs.

Reliable Electrical and Cooling Components

All electrical components, supporting 110V/220V and 8A current, are branded for stability and reliability, ensuring long-lasting performance.

Accurate 10,000–24,000 RPM Speed Regulation

Features precise speed control with a range of 10,000–24,000 RPM, enabling smooth and accurate operation for diverse CNC applications.

Optimized 65mm Water-Cooling Design

The specially designed water-cooling system (Φ65mm spindle body) ensures efficient heat dissipation with reduced noise, enhancing durability and performance for extended CNC operations.

 Advantages of the 1.5KW Water Cooled CNC Spindle Kit

Advanced Dynamic Balance Design

Innovative & advanced dynamic balancing technology

Effectively reduce the noise

Increase stability in the working process

Extended Working Life

Authentic 4pcs upgraded

Superior durability steel bearings

All copper lengthening coil of rotor

Working life can reach 2 years for 8 hours / day

Our Spindle Motor	Other Spindle Motor
Runout less than 0.005mm	Runout 0.05mm

High Accuracy and Concentricity

Further processing for spindle motor

Runout of the spindle motor is less than 0.005mm

10 times precision beyond normal spindle motor

 10 TIMES PRECISION RUNOUT OFF

Easy and Fast Installation

Equipped with pre-soldered aviation wire and power wire for quick installation

 THE VFD HAS BEEN PROGRAMMED

 Package of 1.5KW Water Cooled Spindle Motor Kit

Whether you're a hobbyist or a professional CNC workshop, we have the ideal Zhong Hua Jiang water cooled spindle motor solution for you. Our water cooled spindle motors support a wide range of projects, from intricate engravings to heavy-duty cuts, suitable for various skill levels. If the standard configuration doesn't meet your needs, please feel free to contact our professional sales team to customize the perfect water cooled spindle motor solution for your projects.

 Recommended Water Cooled Spindle Motor Kits

Besides the Zhong Hua Jiang 1.5KW ER11 water cooled spindle motor kit, we offer a variety of other water cooled spindle motor models to suit diverse CNC project needs. Our lineup includes the 2.2KW water cooled spindle motor kit for high-performance engraving and cutting on wood, acrylic, and soft metals, the 3KW water cooled spindle motor kit for professional projects, and specialized air-cooled spindle options for enhanced versatility.

ER20 2.2KW Water Cooled Spindle Motor Kits

ER20 3KW Water Cooled Spindle Motor Kits

 Company Profile: CNC Spindle Motor Manufacturer

CNC Spindle Motor Manufacturer

 Why Choose Zhong Hua Jiang

Quality Assurance Superior quality performance Strict quality control	Patents and Certifications Several patents for air-cooled spindle motors	Additional Brand Value Brand value highly recognized by the market
Reasonable Price Direct factory sales Highly cost performance	Full Time Service Professional technical support Close and quick customer service	Fast and Reliable Delivery Fast and efficient delivery Real-time tracking and updates

Leading CNC Machine & Spindle Motor Manufacturer

Manufacturer Since 2000

 Our CNC Product Range

CNC Router Machines

Our state-of-the-art Zhong Hua Jiang CNC router machines, including models like the 3018, 3020, 3040, and 6090, guarantee precision, efficiency, and reliability, essential for high-quality engraving and cutting projects.

CNC Spindle Motors

Power your CNC projects with our advanced spindle motors, including air-cooled and water-cooled options, designed to meet rigorous performance standards for diverse materials.

CNC Accessories

Enhance your CNC operations with our precision accessories, such as limit switches, Z probes, and emergency stop buttons, perfect for ensuring safety and accuracy.

Electrical Wires

Ensure reliable and safe connections with our double-shielded cables and shielded chain cables, designed to minimize signal interference and enhance durability.

Stepper Motors

Drive your CNC machine with our high-performance stepper motors, offering precise control and robust operation for consistent project outcomes.

 Product Certification

 Customer Feedback

 FAQ: ER11 1.5KW Water Cooled Spindle Motor VFD Kit

What is included in the ER11 1.5KW water cooled spindle motor VFD kit?

The kit includes one Φ65mm 1.5KW round water cooled spindle motor, one 1.5KW VFD inverter, one Φ65mm clamp mount, one 110V water pump, a 5-meter water hose, ER11 collets from 1mm to 7mm, drill bits from 0.8mm to 3mm with 1/8-inch shank, aviation wire, power wire, and two wrenches.

What CNC machines is this 1.5KW spindle motor kit suitable for?

This kit is suitable for CNC routers, engraving machines, woodworking CNC machines, desktop CNC machines, acrylic cutting machines, PCB engraving machines, and small workshop CNC systems that need a compact Φ65mm water cooled spindle with VFD speed control.

What are the main specifications of the spindle motor?

The spindle motor is a Φ65mm 1.5KW water cooled CNC spindle with ER11 collet connection, 10,000–24,000 RPM speed range, compact round body, and approximately 3.6kg spindle weight. The spindle body size is listed as Φ65mm × 267mm in the original specification table.

Why choose a water cooled spindle motor kit with VFD?

A water cooled spindle motor provides stable heat dissipation, lower operating noise, and better long-duration performance. The matched VFD inverter makes speed control easier and helps users integrate the spindle into CNC routers with fewer compatibility issues.

Is the VFD pre-programmed for this spindle kit?

The page states that the VFD has been programmed. Buyers should still confirm local voltage, wiring, cooling circulation, and parameter settings before operation to ensure safe installation and reliable spindle performance.

Can this kit be used for wood, acrylic, plastics, PCB, and soft metals?

Yes. The 1.5KW ER11 water cooled spindle motor kit is suitable for engraving and light cutting on wood, acrylic, MDF, plastics, PCB boards, PVC, plexiglass, and light soft-metal machining such as aluminum or brass when matched with suitable tools, feeds, speeds, and cooling conditions.

Can Zhong Hua Jiang supply this spindle kit for OEM or bulk orders?

Yes. Zhong Hua Jiang supports sample orders, bulk purchasing, distributor cooperation, OEM branding, packaging customization, and technical support for CNC machine builders and resellers.

What warranty and after-sales support are provided?

Zhong Hua Jiang provides a 12-month warranty for spindle motors, power converters, and accessories, along with technical support for installation, VFD parameter setup, wiring, troubleshooting, and product selection.
