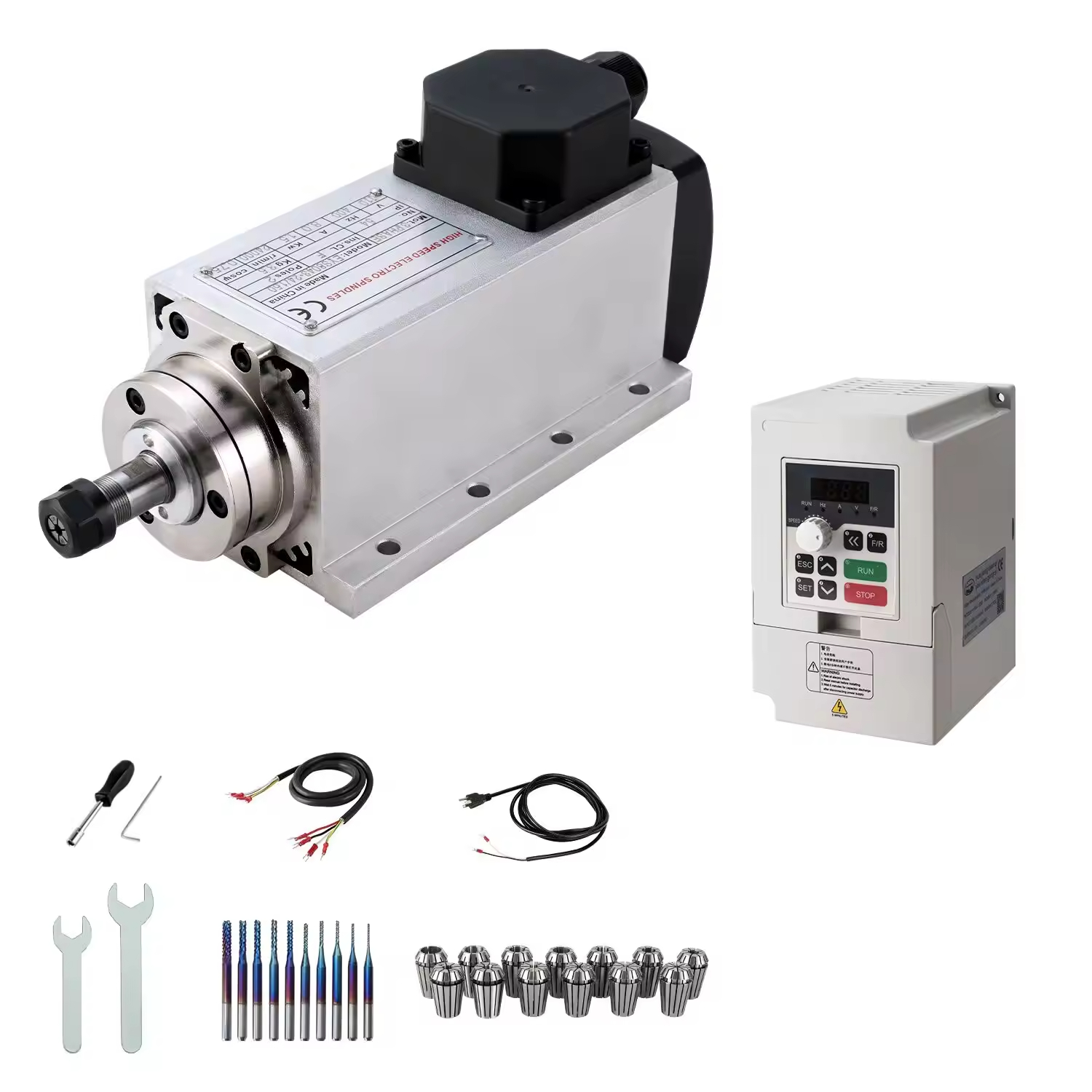

ER16 1.5KW Square Air Cooled
Zhong Hua Jiang
110V/220V
10000-24000 RPM
4.3kg
Air Cooled
ER16
1.5KW
8A
242X90X105mm
Availability: | |
---|---|
Quantity: | |
01 Package List
Voltage | 110V/220V | 1 pcs 1.5KW Squire Spindle Motor. |
Speed | 10000-24000 | 1 pcs Pre-soldered aviation wire and 2 pcs wrenches for quick installation. |
Power | 1.5KW | This spindle should be equipped with 400Hz VFD. |
Electric Current | 8A | |
Frequency | 400Hz | |
KG | 4.3KG | |
Connection | ER16 | |
Cooling | Air Cooled | |
Usage | Engraving Machines |
02 Product Advantage
Advanced Dynamic Balance Design
Innovative & advanced dynamic balancing technology
Effectively reduce the noise
Increase stability in the working process
Extended Working Life
Authentic 4pcs upgraded
Superior durability steel bearings
All copper lengthening coil of rotor
Working life can reach 2 years for 8 hours / day
Our Spindle Motor | Other Spindle Motor |
![]() | ![]() |
Runout off less than 0.005mm | Runout off 0.05mm |
High Accuracy & Concentricity
Further processing for spindle motor
Runout off of the spindle motor is less than 0.005mm
10 times precision beyond normal spindle motor
10 TIMES PRECISION RUNOUT OFF
Easy and Fast Installation
Equipped with pre-soldered aviation wire for quick installation
Installation holes on both sides
The VFD has been Programmed
03 Company Profile
"Zhong Hua Jiang" Brand Story
How we started?
Huajiang was founded in 2000,starting in the production of CNC engraving spindle motor,then expanded production to VFD(Variable Frequency Drive) and engraving machines .
To explore and develop more market,we established Brand “Zhong Hua Jiang” on 2018.
What makes us proud ?
We have registered patent for our series of air cooling spindle motor. The patent No:200730184245.5.
We have 20 years manufacturing experience in this field.
We have been exporting our products to all over the world including well-known company in USA and Germany.
04 Why Choose us
![]() | ||
Quality Assurance Superior quality performance Strict quality control | Patents and Certifications Several patents for air-cooled spindle motors | Additional Brand Value Brand value highly recognized by the market |
![]() | ||
Reasonable Price Direct factory sales Highly cost performance | Full time Service Professional technical support Close and quick customer service | Fast and Reliable Delivery Fast and efficient delivery system Real-time tracking and updates |
LEADING CNC MACHINE/CNC SPINDLE MOTOR
MANUFACTURER SINCE 2000
05 Product Certificate
06 Product Application
Wood/PVC/PCB/PMMA/Piastic/Aiuminum carving/engraving machine, advertisement
engraving machine, CNC router machine, small sized processing center,
high speed centrifuge etc.
07 Customer Feedback
08 FAQ
1. About Zhong Hua Jiang
Founded in 2000,we has over 20 years of experience in CNC engraving spindle motors and has expanded the product range to include Variable Frequency Drives (VFD) and engraving machines.
2. What are your main products?
Our company manufactures various models and specifications of spindle motors, all of which are compatible with CNC machine tools produced by medium and large professional manufacturers both domestically and internationally. Notably, the company's patented air-cooled spindle series has been especially well-received.
3. How should we guarantee the products' quality?
Each category of products will undergo strict quality control before leaving the factory and we will also check them one by one when shipping.
