ER20 80mm 2.2KW 4 Bearings 110V/220V/380V Air Cooled CNC Spindle Motor for CNC Router Engraving Machine

ER20 2.2KW Air Cooled CNC Spindle Motor for CNC Router

Zhong Hua Jiang supplies ER20 2.2KW air cooled CNC spindle motors for CNC router manufacturers, distributors, resellers, machine builders, repair workshops, and professional engraving or cutting users. This 80mm round spindle motor is designed for stable high-speed machining, easy VFD integration, and reliable B2B procurement.

With 2.2KW output power, ER20 tool holding, 400Hz operation, and 10,000–24,000 RPM speed control, this air cooled spindle motor is suitable for woodworking, acrylic cutting, MDF engraving, PVC machining, PCB engraving, and light soft-metal processing.

Video of 2.2KW Air Cooled CNC Spindle Motor

Catalogue of Zhong Hua Jiang

  CNC Router Machine Catalogue 2025.pdf

2.2KW ER20 Air Cooled Spindle Motor for Sale

The Zhong Hua Jiang ER20 2.2KW air cooled spindle motor is built for buyers who need a practical balance of power, precision, cooling efficiency, and easy installation. It is a suitable spindle choice for CNC router upgrades, replacement spindle projects, small production workshops, CNC machine assembly, and spare-parts distribution.

Unlike water-cooled spindle systems, the air-cooled structure does not require a water pump, coolant tank, or circulation pipe. This reduces installation complexity and maintenance cost while keeping the spindle compact and easy to service.

For B2B buyers, Zhong Hua Jiang supports factory-direct supply, bulk purchase, OEM branding, voltage configuration, packaging customization, and distributor cooperation for global CNC machine and CNC accessory markets.

Technical Specifications of 2.2KW ER20 Air Cooled Spindle Motor

Applications and Use Cases

This 2.2KW ER20 spindle motor is suitable for CNC users who process wood, acrylic, MDF, PVC, PCB materials, plastics, plexiglass, and soft metals such as aluminum or brass. It is commonly used in CNC router machines, engraving machines, woodworking equipment, sign-making machines, small production lines, and maintenance or retrofit projects.

Wood Engraving and Cutting

Acrylic Engraving and Cutting

Soft Metal Engraving

Features of ER20 2.2KW CNC Air Cooled Spindle Motor

Zhong Hua Jiang ER20 2.2KW air cooled spindle motor is engineered for stable high-speed engraving, milling, and cutting. It combines ER20 tool holding, 2.2KW power, efficient air cooling, and VFD speed control for professional CNC routers and workshop applications.

User-Friendly Control

The spindle motor is designed for easy VFD speed control and practical daily operation. With a compatible 400Hz VFD, users can adjust spindle speed according to material type, tool size, and machining requirements.

High-Precision ER20 Collet System

The ER20 collet connection provides secure tool holding and supports larger tools than compact ER11 spindle models. This improves versatility for engraving, cutting, and light milling applications.

CNC Controller and VFD Compatibility

The spindle can be integrated with common CNC router control systems and matched VFDs. This makes it suitable for machine upgrades, OEM machine assembly, and replacement spindle projects.

Reliable Electrical Components

Voltage options include 110V, 220V, and 380V configurations. The 8.5A current specification and 400Hz frequency support stable high-speed spindle performance when paired with a suitable VFD.

Accurate Speed Regulation

The spindle supports a speed range of 10,000–24,000 RPM, helping users choose suitable cutting conditions for wood, acrylic, plastic, PCB, and soft metal materials.

Optimized Air-Cooling Design

The air-cooled structure helps dissipate heat efficiently without water-cooling accessories. With a Φ80mm × 300mm body and approximately 5KG weight, it provides a practical balance of compact installation and stable operation.

Advantages of Air Cooled Spindle Motor

Advanced Dynamic Balance Design

Advanced dynamic balancing technology helps reduce vibration during high-speed operation, lowers operating noise, and improves machining stability during engraving, cutting, and milling.

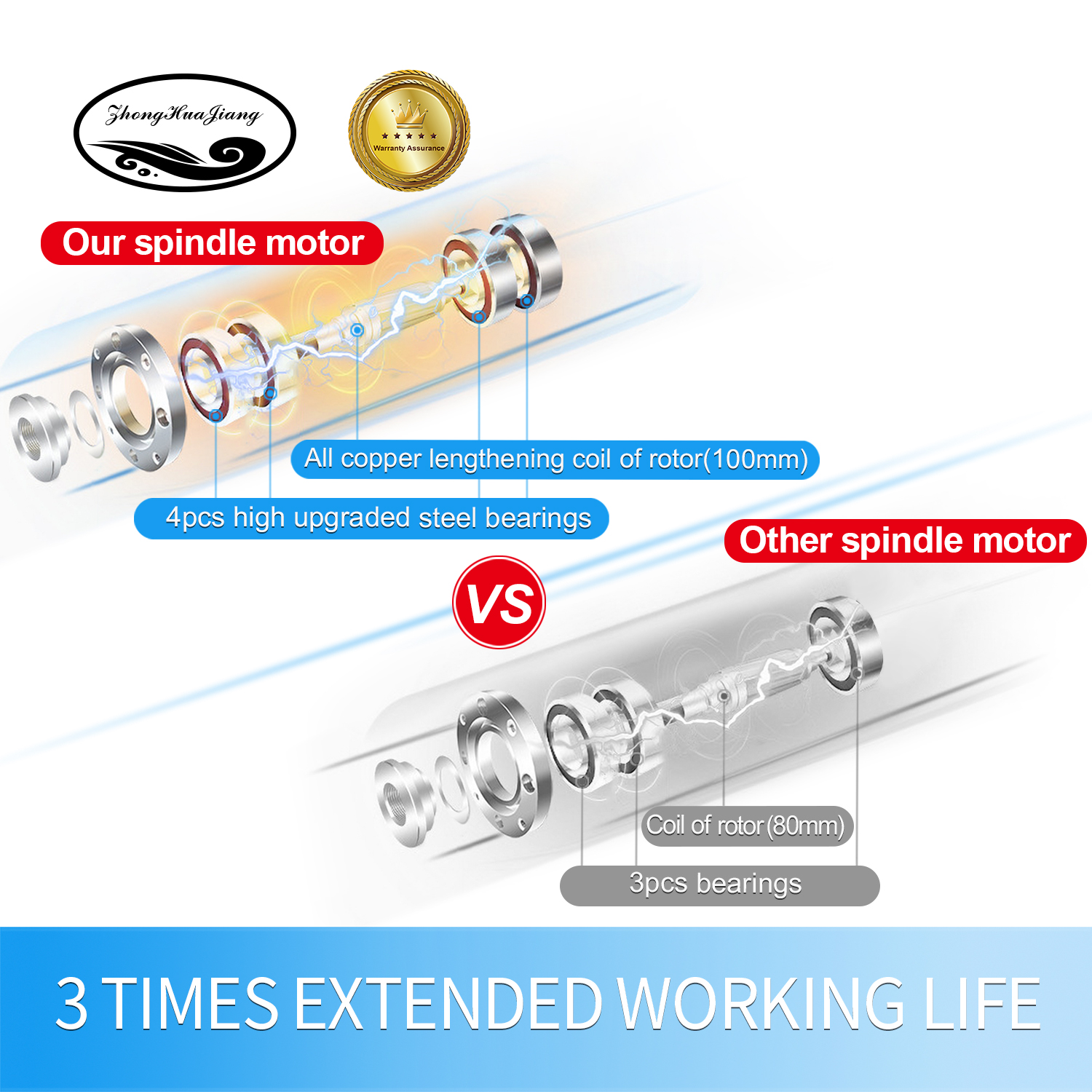

Extended Working Life

The spindle uses four upgraded steel bearings and an all-copper rotor coil design to support stable electrical performance and longer service life under regular CNC workshop use.

Our Spindle Motor	Other Spindle Motor
Runout less than 0.005mm	Runout around 0.05mm

High Accuracy and Concentricity

Precision processing improves spindle concentricity and machining consistency. The spindle runout can be less than 0.005mm, supporting high-precision CNC engraving and cutting.

10 TIMES PRECISION RUNOUT

Easy and Fast Installation

The pre-soldered aviation wire supports quick installation, and the spindle body is designed for straightforward mounting in compatible CNC router systems. This helps reduce assembly time for workshops, machine builders, and distributors.

Package List of 2.2KW Air Cooled Spindle Motor

Whether you are a distributor, machine builder, reseller, or professional CNC workshop, Zhong Hua Jiang can provide a suitable air cooled spindle motor solution. Standard models are available for fast delivery, and customized configurations can be discussed for OEM, bulk purchase, and project-based requirements.

Recommended Air Cooled Spindle Motor Models

Besides the Zhong Hua Jiang 2.2KW ER20 80mm air cooled spindle motor, we offer a complete air cooled spindle motor range for different CNC machine sizes, tool requirements, and production workloads. This helps distributors and machine builders select suitable models for compact engraving machines, standard CNC routers, and higher-power industrial applications.

ER11 0.8KW Air Cooled Spindle Motor

ER11 1.5KW Air Cooled Spindle Motor

ER20 3KW Air Cooled Spindle Motor

Square ER11 1.5KW Air Cooled Spindle Motor

Square ER20 2.2KW Air Cooled Spindle Motor

Square ER20 3KW Air Cooled Spindle Motor

ER25 4KW Air Cooled Spindle Motor

ER32 5KW Air Cooled Spindle Motor

ER32 6KW Air Cooled Spindle Motor

ER32 7.5KW Air Cooled Spindle Motor

Round Air Cooled Spindle Motor Kits

Square Air Cooled Spindle Motor Kits

Company Profile

CNC Spindle Motor Manufacturer Since 2000

How We Started

Huajiang was founded in 2000, starting with the production of CNC engraving spindle motors, and later expanding into VFDs, CNC router machines, and related CNC accessories.

To develop international markets and serve global CNC users, we established the Zhong Hua Jiang brand in 2018.

What Makes Us Proud

We hold registered patents for our air cooled spindle motor series, including patent No. 200730184245.5.

With more than 20 years of manufacturing experience, Zhong Hua Jiang supports global buyers with stable product quality, technical support, and export service.

Our products are exported worldwide, including customers in the United States, Germany, and other industrial markets.

Why Choose Zhong Hua Jiang

Quality Assurance Stable product quality and reliable spindle performance. Strict inspection before shipment.	Patents and Certifications Patented air-cooled spindle motor designs. CNC spindle motor manufacturing know-how.	Additional Brand Value Recognized Zhong Hua Jiang brand value. Trusted by users in global markets.
Reasonable Price Direct factory supply for competitive pricing. High cost-performance ratio for B2B procurement.	Responsive Technical Support Professional technical support. Fast response for pre-sales and after-sales questions.	Fast and Reliable Delivery Efficient delivery for standard spindle motors. Order tracking and export shipping support.

LEADING CNC MACHINE / CNC SPINDLE MOTOR MANUFACTURER SINCE 2000

Our CNC Product Range

CNC Router Machines

Our Zhong Hua Jiang CNC router machines, including models such as 3018, 3020, 3040, and 6090, are designed for precision engraving, cutting, and small production applications.

CNC Spindle Motors

We supply air cooled and water cooled CNC spindle motors for different power ranges, machine structures, materials, and machining requirements.

CNC Accessories

Our CNC accessories include limit switches, Z probes, emergency stop buttons, and other components that improve CNC machine safety, accuracy, and user convenience.

Electrical Wires

We provide double-shielded cables and shielded chain cables to support reliable connections, reduce signal interference, and improve CNC system durability.

Stepper Motors

Our stepper motors help CNC machines achieve precise motion control and stable operation for engraving, cutting, and automation applications.

Product Certification

Customer Feedback

FAQ About 2.2KW Air Cooled CNC Spindle Motor

1. What materials can the 2.2KW air cooled CNC spindle motor work with?

It is suitable for engraving, milling, and cutting wood, acrylic, MDF, plastics, PCB boards, PVC, plexiglass, and soft metals such as aluminum or brass.

2. Can I purchase the 2.2KW air cooled CNC spindle motor in bulk or as a distributor?

Yes. Zhong Hua Jiang welcomes global distributors, resellers, wholesalers, CNC machine builders, and repair service providers. We offer factory-direct pricing, stable supply, and export support for bulk orders.

3. Do you offer OEM or customization services?

Yes. We provide OEM and ODM services for logo, packaging, voltage specification, spindle configuration, bearing configuration, and project-based customization. Our engineering team can help match the spindle motor to your machine requirements.

4. What is your minimum order quantity?

We are flexible with order quantities. For standard 2.2KW air cooled spindle motors, small trial orders can be accepted before bulk purchase. For OEM or customized models, MOQ can be discussed according to project details.

5. How long is your production and delivery time?

For standard models, the typical lead time is 3–7 working days after payment. For large or customized orders, production usually takes 10–20 days. International shipping support is available for global buyers.

6. What warranty do you provide?

Our spindle motors, power converters, and accessories are covered by a 12-month warranty. Each product is inspected before shipping. During the warranty period, we provide technical support and replacement support for quality-related parts.

7. Do you provide after-sales technical support?

Yes. Zhong Hua Jiang provides lifetime technical support by email, video call, or online chat. Our engineers can assist with installation, VFD parameter setup, and troubleshooting. For large distributors, we can also provide documentation and training support for local service teams.
