Zhong Hua Jiang Square ER32 6KW 380V 4 Bearings Air Cooled CNC Spindle Motor for CNC Router Engraving Machine

Zhong Hua Jiang Square ER32 6KW 380V Air Cooled CNC Spindle Motor ensures high precision, stability, and durability for CNC engraving machines.
  • ER32 6KW Squire Air Cooled

  • Zhong Hua Jiang

  • 380V

  • 10000-18000 RPM

  • 15.3kg

  • Air Cooled

  • ER32

  • 6KW

  • 12A

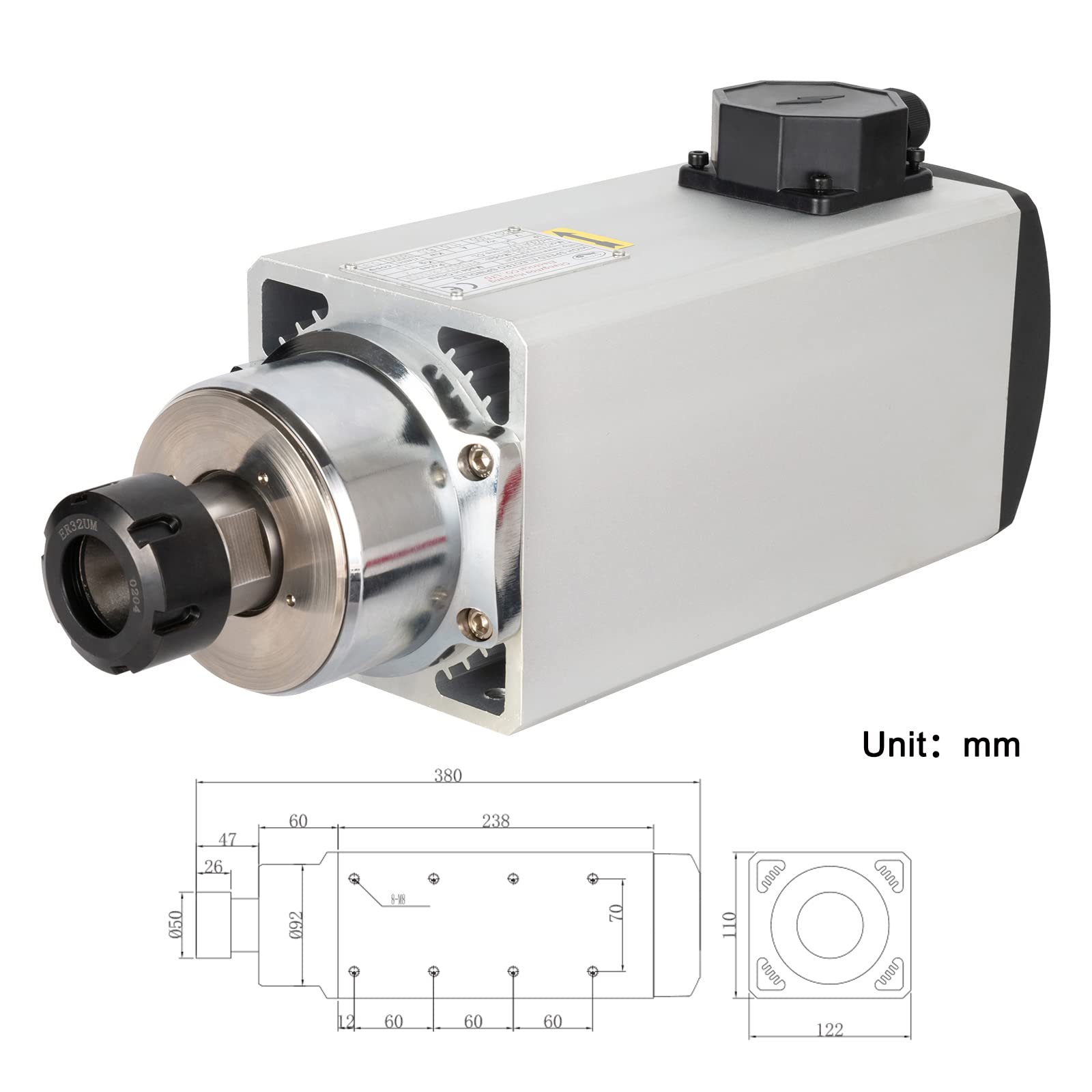

  • 430X122X110mm

Availability:
Quantity:






    01       Package List



6KW ER32-011


Voltage

380V 1 pcs 6KW Squire Spindle Motor.

Speed

10000-18000 Collet: ER32-6&12.7mm and 2 pcs wrenches for quick installation.

Power

6KW This spindle should be equipped with 300Hz VFD.

Electric Current

12A

Frequency

300Hz

KG

15.3KG

Connection

ER32

Cooling

Air Cooled

Usage

Engraving Machines


6KW ER32-06





    02       Product Advantage




300改400hz, 18000改24000-2_副本



 Advanced Dynamic Balance Design



Innovative & advanced dynamic balancing technology


Effectively reduce the noise


Increase stability in the working process





 Extended Working Life



Authentic 4pcs upgraded


Superior durability steel bearings


All copper lengthening coil of rotor


Working life can reach 2 years for 8 hours / day




 Our Spindle Motor   Other Spindle Motor
微信截图_20250311093106 Main-032
Runout off less than 0.005mm Runout off 0.05mm




 High Accuracy & Concentricity



Further processing for spindle motor


Runout off of the spindle motor is less than 0.005mm


10 times precision beyond normal spindle motor




 10 TIMES PRECISION RUNOUT OFF



1

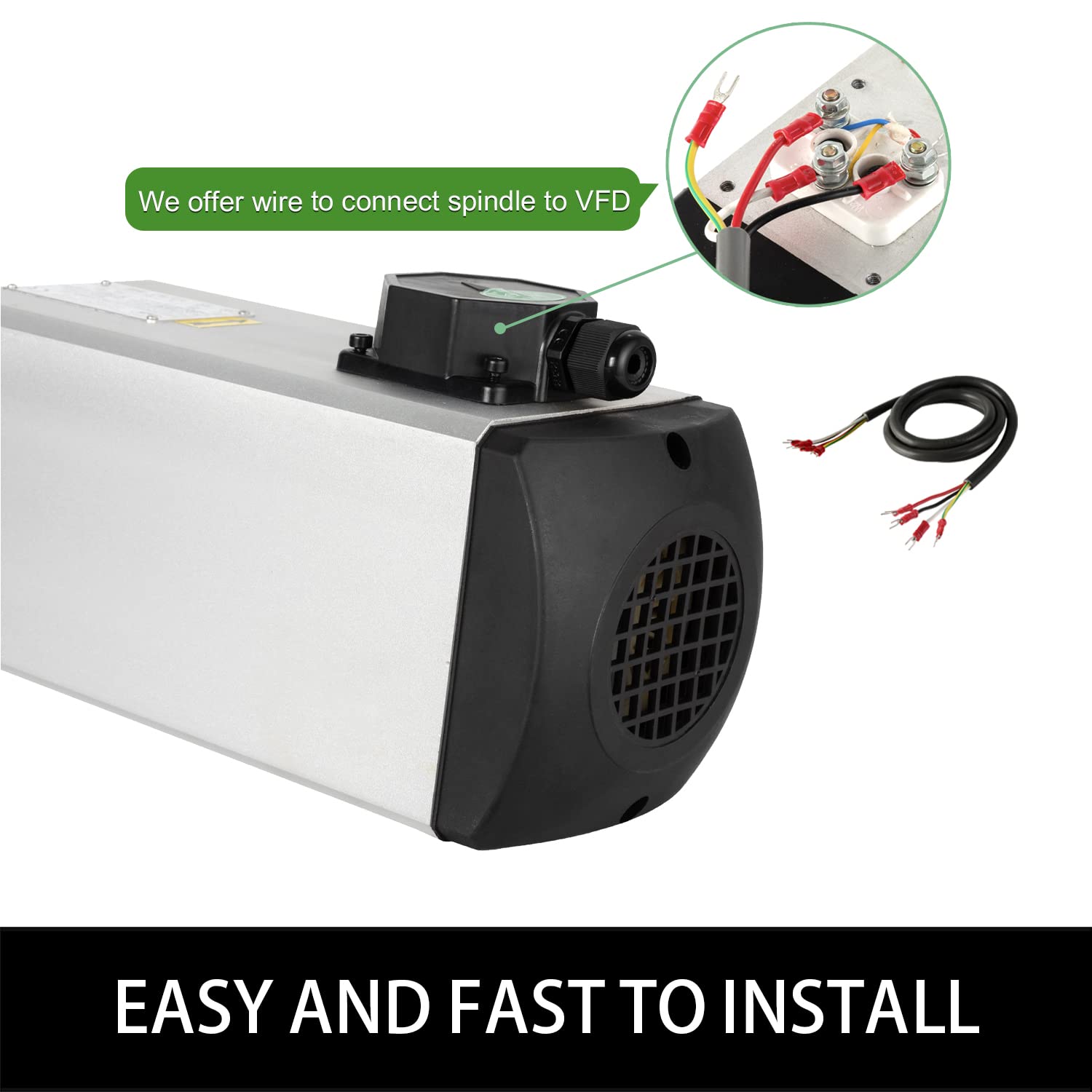

 Easy and Fast Installation



Equipped with pre-soldered aviation wire for quick installation


Installation holes on both sides





 The VFD has been Programmed







    03       Company Profile



 "Zhong Hua Jiang" Brand Story


公司头像

 How we started?

Huajiang was founded in 2000,starting in the production of CNC engraving spindle motor,then expanded production to VFD(Variable Frequency Drive) and engraving machines .

To explore and develop more market,we established Brand “Zhong Hua Jiang” on 2018.

 What makes us proud ?

We have registered patent for our series of air cooling spindle motor. The patent  No:200730184245.5.

We have 20 years manufacturing experience in this field.

We have been exporting our products to all over the world including well-known company in USA and Germany.




    04       Why Choose us


111

Quality Assurance

Superior quality performance

Strict quality control

Patents and Certifications

Several patents for air-cooled

spindle motors

Additional Brand Value

Brand value highly recognized

by the market

222

Reasonable Price

Direct factory sales

Highly cost performance

Full time Service

Professional technical support

Close and quick customer service

Fast and Reliable Delivery

Fast and efficient delivery system

Real-time tracking and updates


LEADING CNC MACHINE/CNC SPINDLE MOTOR


 MANUFACTURER SINCE 2000





    05       Product Certificate






    06       Product Application






Wood/PVC/PCB/PMMA/Piastic/Aiuminum carving/engraving machine, advertisement


 engraving machine, CNC router machine, small sized processing center,


high speed centrifuge etc.






    07       Customer Feedback








                08       FAQ




1. About Zhong Hua Jiang


Founded in 2000,we has over 20 years of experience in CNC engraving spindle motors and has expanded the product range to include Variable Frequency Drives (VFD) and engraving machines.



2. What are your main products?


Our company manufactures various models and specifications of spindle motors, all of which are compatible with CNC machine tools produced by medium and large professional manufacturers both domestically and internationally. Notably, the company's patented air-cooled spindle series has been especially well-received.



3. How should we guarantee the products' quality?


Each category of products will undergo strict quality control before leaving the factory and we will also check them one by one when shipping.
