ER11 0.8KW 65mm 4 Bearings 110V/ 220V Air Cooled CNC Spindle Motor for CNC Router Engraving Machine

ER11 0.8kW 65mm Air-Cooled CNC Spindle Motor

The Zhong Hua Jiang 0.8kW (800W) air-cooled CNC spindle motor is a round, high-speed spindle for CNC routers, engraving equipment, woodworking and light milling applications. It features an ER11 tool-holding interface, a nominal 65 mm body diameter and a published spindle speed range of 10,000–24,000 RPM.

Choose the appropriate 110V or 220V motor version and pair it with a correctly configured 400 Hz variable frequency drive (VFD). The motor uses air cooling, so there is no separate cooling-water circuit to install. Buyers should verify the mounting clamp, VFD output specifications, collet size and machine clearance before ordering.

At a glance: 0.8kW power · ER11 collet system · 65 mm round housing · 400 Hz VFD requirement · air-cooled design · CNC engraving and light routing.

Request a Quote for the 0.8kW Spindle

0.8kW Air-Cooled Spindle Motor Key Specifications

The table below summarizes the published details of this spindle model. Confirm the selected voltage version, VFD parameters and final unit weight on the order specification.

CNC Spindle Motor Video

The following video is part of the original product media. For a demonstration of the exact ER11 0.8kW configuration, request model-specific operating footage.

Zhong Hua Jiang Product Catalogue (PDF)

Review the broader range of CNC spindle motors and CNC router equipment in the downloadable Zhong Hua Jiang catalogue. Confirm current model specifications with our team before purchase.

Download Zhong Hua Jiang Catalogue 2025 (PDF)

0.8kW Air-Cooled CNC Spindle Motor Technical Specifications

Check both electrical and mechanical data when replacing a CNC spindle: the VFD must match the selected motor voltage and current requirements, while the mounting hardware must suit the cylindrical housing and available Z-axis travel.

Electrical Matching and Installation

Use a suitable 400 Hz VFD programmed for the exact motor and local power-supply arrangement. The 110V and 220V references identify available spindle versions; they do not mean the spindle can be wired directly to either mains supply. Connections, grounding, motor current and VFD parameters should be checked by qualified personnel.

The original packaging description lists one round 0.8kW spindle and one pre-soldered aviation cable. A VFD, collet set and mounting clamp are not identified as standard package contents in the supplied list. Ask for a written packing confirmation when requesting a quote.

Check 110V/220V Spindle and VFD Compatibility

CNC Router Applications and Workpiece Materials

This spindle can support routing, engraving and light milling within the limits of the host machine, cutting tool and workholding setup. Depth of cut, feed rate, spindle speed and tool diameter must be selected for each material.

Wood and MDF Engraving

Suitable applications include lettering, decorative patterns, small signage, woodworking details and CNC craft components. Plan appropriate dust extraction and secure the workpiece before machining.

Acrylic, PVC and Plastic Machining

Used for engraving acrylic signage, plastic panels, display components, patterns and light profile cutting. Use suitable cutters and machining settings to reduce heat buildup and edge melting.

PCB and Light Soft-Metal Work

PCB isolation work and controlled, light engraving in aluminum or brass may be possible with a rigid machine and appropriate tooling. This compact spindle is not represented as a heavy-duty steel-cutting solution. Machining results depend on the complete CNC setup.

Key Features of the ER11 0.8kW Air-Cooled Spindle

ER11 Collet Tool-Holding System

The ER11 collet interface supports a range of cutter shank sizes when fitted with the correctly sized ER11 collet. Match collet bore to the actual cutter shank; do not assume every collet size is included with the spindle.

10,000–24,000 RPM Operating Range

The published product specification lists 10,000–24,000 RPM. Actual permissible operating speed and torque depend on the motor configuration and VFD settings. Do not use another kit listing’s wider speed range as the operating specification for this motor without written confirmation.

Compact 65 mm Air-Cooled Housing

The round 65 mm housing is intended for appropriately sized CNC spindle mounts. The product information also cites a housing length of approximately 244 mm. Check clamp fit, overall clearance and airflow before installing or replacing a spindle.

Four-Bearing Construction and Runout

The product information describes a four-bearing design and a runout claim of less than 0.005 mm. For precision purchasing, request the inspection method and report, including the measurement position, test conditions and applicable tolerance for the selected motor.

Air Cooling Without a Water Circuit

Integrated air cooling simplifies installation where a cooling tank, pump and hoses are undesirable. Keep air inlets and outlets clear, and assess noise, ambient temperature and duty cycle for the application.

Design and Performance Details

Dynamic Balancing and Vibration Control

The spindle is presented with a dynamically balanced rotating assembly intended to support smoother high-speed operation. Final vibration and machining finish also depend on tool balance, holder condition, mount rigidity and the host machine.

Bearing Assembly and Service Considerations

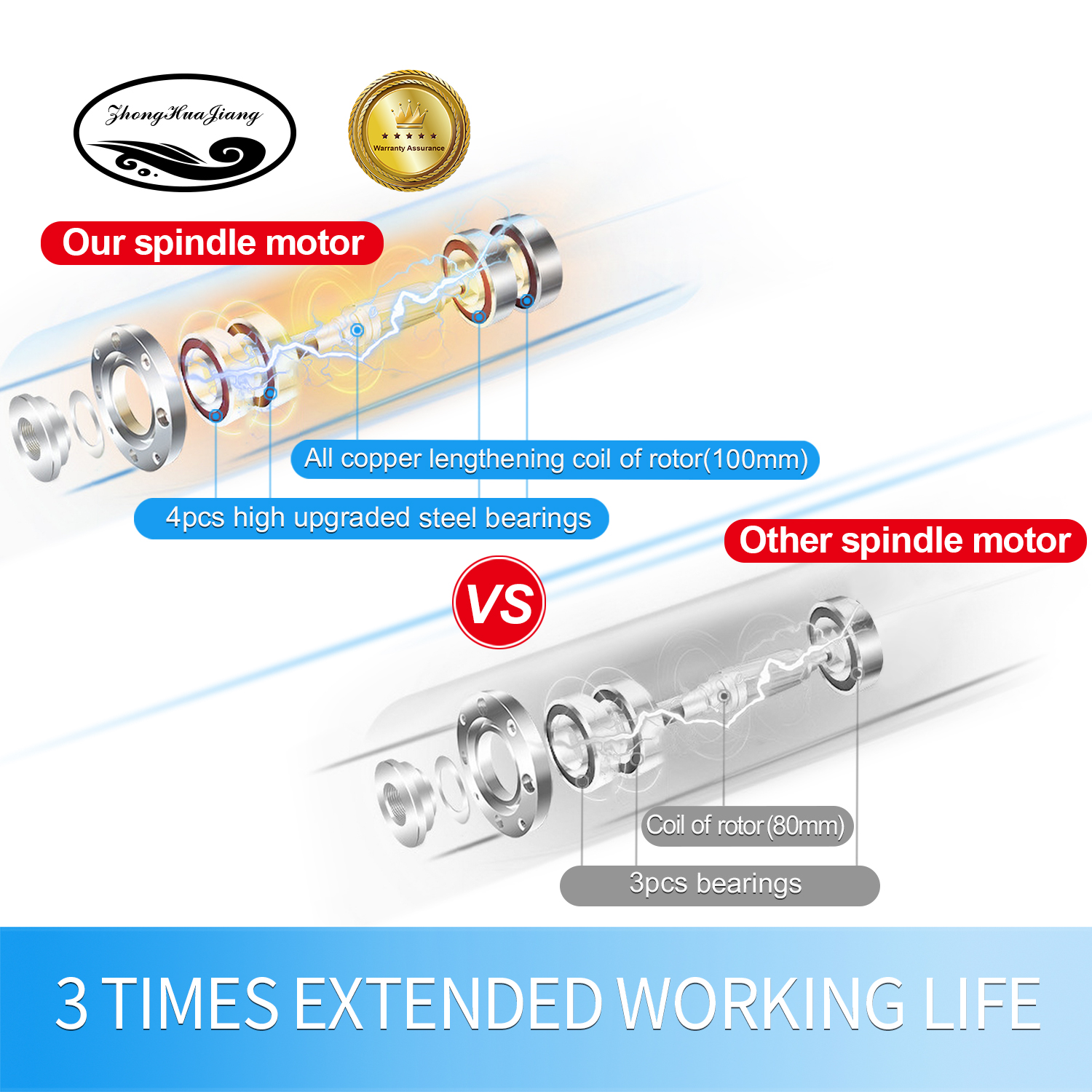

The original product information describes four upgraded steel bearings and copper winding construction. Proper speed setting, ventilation and spindle loading are important to service life; operating lifetime varies with conditions and maintenance.

For process validation, buyers can request detailed bearing and inspection information rather than relying on a fixed service-life prediction.

Zhong Hua Jiang Spindle	Illustrative Comparison
Published runout reference: less than 0.005 mm (request inspection data)	Illustrative reference shown in the original comparison: 0.05 mm (not a universal competitor specification)

Runout comparisons are illustrative. Ask for model-specific measurement conditions and test results before assessing precision differences.

Concentricity and Tool Setup

Spindle runout, ER11 collet condition, cutter shank accuracy and tool installation all affect engraving quality. Use clean, correctly sized collets and verify assembled tool runout before demanding work.

Pre-Soldered Aviation Connector

The listed motor package includes a pre-soldered aviation wire for installation. Connector and cable details should be checked against the selected VFD and the machine electrical layout before energizing the spindle.

Discuss Motor Dimensions and Runout Requirements

Standard 0.8kW Air-Cooled Spindle Package

The supplied packing table lists the motor and pre-soldered aviation cable. Other components such as a VFD, 65 mm mount, collets and cutters should be specified separately unless included in the written quotation.

For distributors and machine builders, please provide the target machine model, required spindle voltage, collet bore, annual purchase estimate and destination market so the supplied configuration can be checked.

Request the 0.8kW Spindle Packing List
