“Zhong Hua Jiang” Brand story
How we started?
Huajiang was founded in 2000,starting in the production of CNC engraving spindle motor,then expanded production to VFD(Variable Frequency Drive) and engraving machines 3018,3020,3040,6040.
To explore and develop more market,we established Brand”Zhong Hua Jiang” on 2018.
What makes us proud ?
We have registered patent for our series of air cooling spindle motor .We have registered patent.
We have 20 years manufacturing experience in this field.
We have been exporting our products to all over the world including well-known company in USA and Germany.
Specification of 3018-PROVer

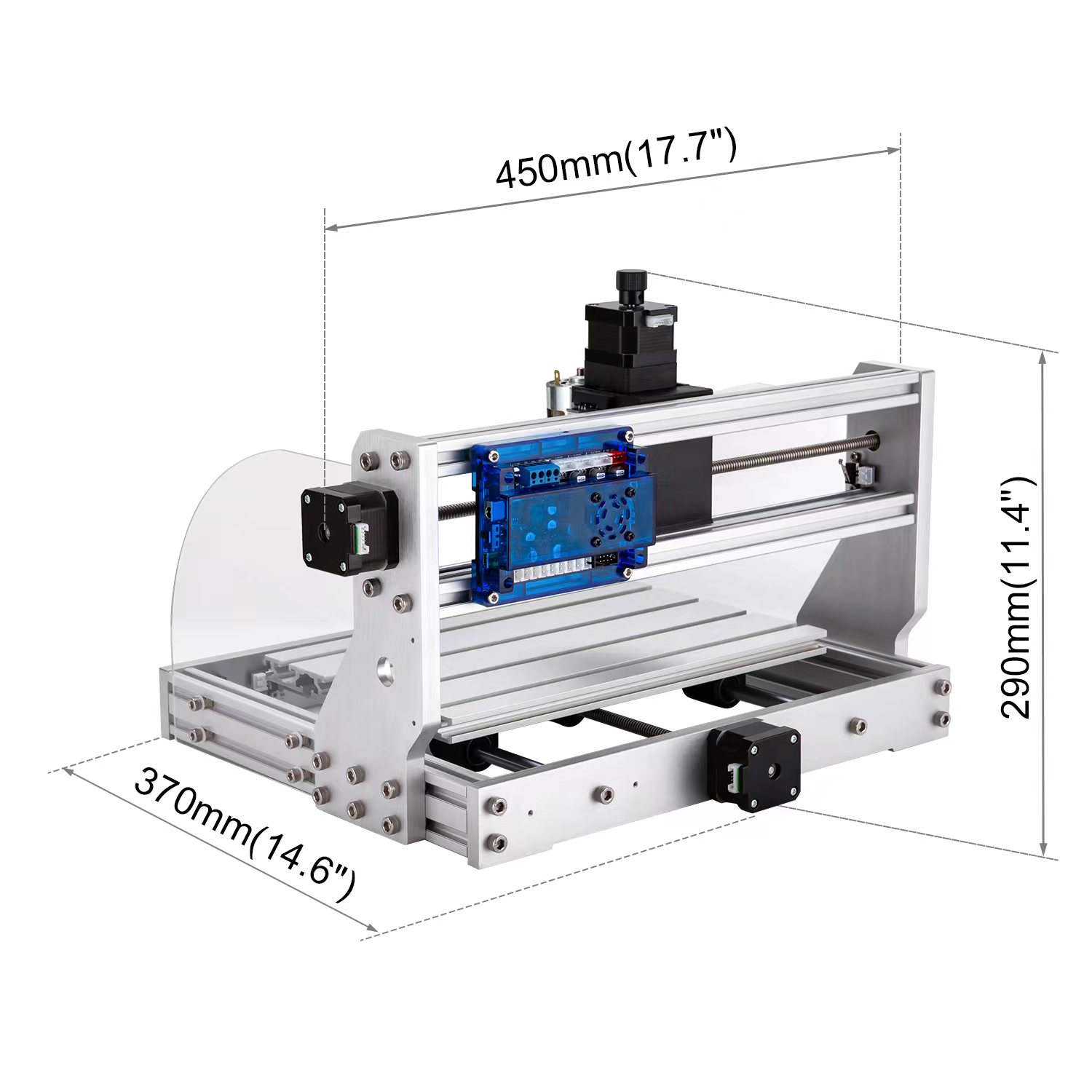

Effective Engraving Area: 270 x 155 x 40mm(10.6" x 6.1" x 1.6”)
Frame Material: Aluminum, Z-Axis Component Material: ABS
Spindle: 775 motor, 12V~24V, 10000 RPM;
Rated power: 60W; Maximum power: 120W
Step Motor:2.0 A, 4.5 N torque
Drill Bits: Tip 0.1 mm, Diameter 3.175 mm 15 degrees(5pcs), 30 degrees(5pcs)
Supported OS: Windows XP, Windows 7 32/64 bits, Windows 8, Windows 10, Linux, MAC OS
Software: Grbl control(Candle)
Power Supply: 24V/5A
KEY FEATURE of 3018-PROVer
An entry-level CNC machine for DIY and best value for new users.Pre-assembled and easy assembly taking less than 30 minutes out of the box.
Based on open-source Grbl v1.1 the PROVer has stepped up to more powerful but silent drivers with added life and performance along with added Optocouplers to protect your mainboard from hard stops without risk of damage and eliminate signal noise for more consistent projects and longevity.
All-aluminum body and take advantage of the added stability for milling a wider range of materials while also making clean up even easier with acrylic safety baffles to help contain dust and provide a safety barrier.
Increase your output and reduce your failures with included limit switches and Z Probe. The included spindle features Motor Noise Suppression for enhanced work performance. If something does go wrong the Emergency STOP button will ensure you can safely stop operations immediately.
Wide application: Capable of carving and cutting different materials right out of the box, such as plywood, MDF, PCB, acrylic, nylon, carbon fiber, leather, graphite blocks, inlays in wood, plexiglass, vinyl, brass, and other soft metals.
Product Description

【X and Y Axis parts pre-assembled】
This mostly pre-assembled desktop CNC machine gets you up and running in 30 minutes instead of hours, making it no challenge for beginners. A perfect gift for someone who would like to get into CNC.

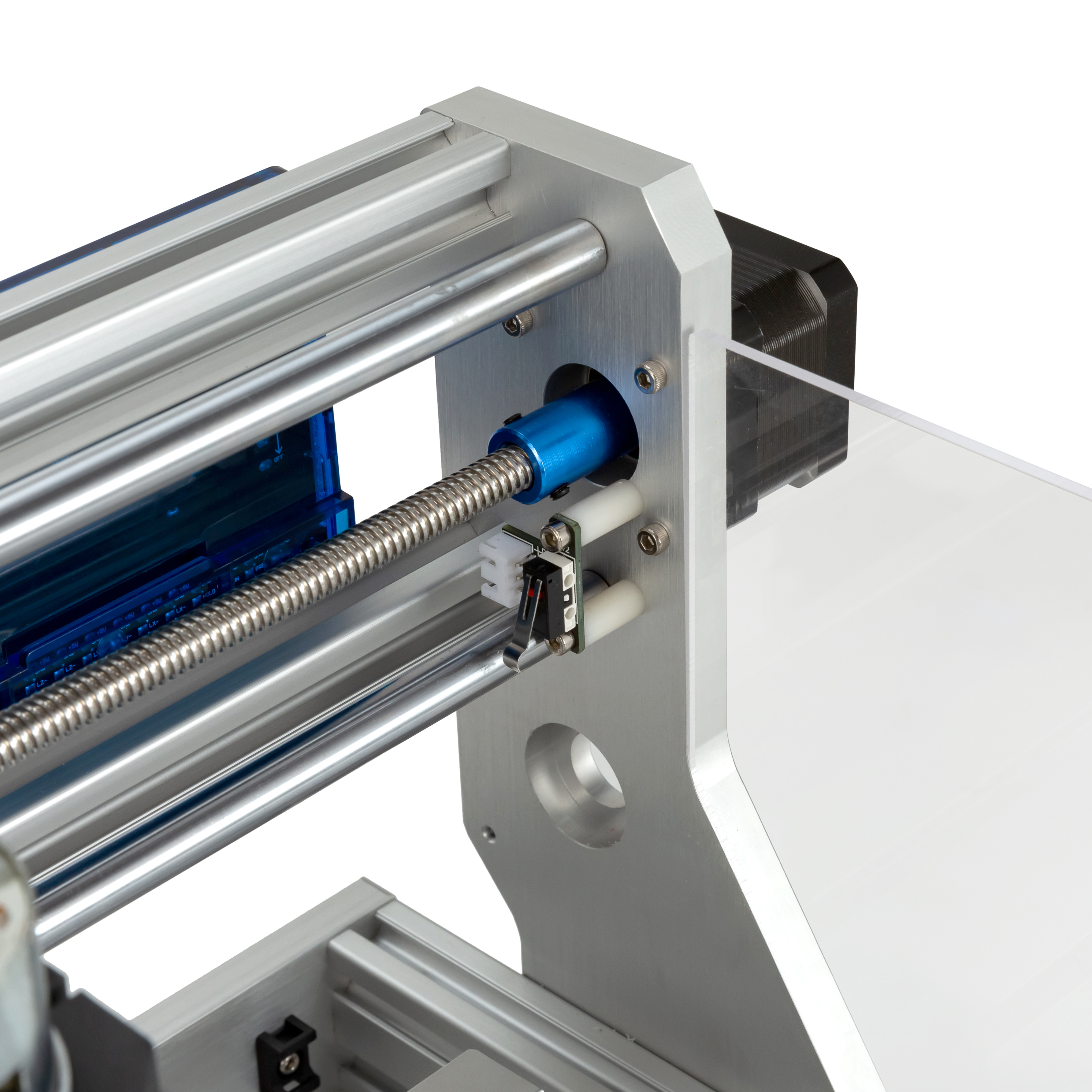

【Limit switches】
This package is with 6pcs limit switch ( X-Axis 2pcs,Y-Axis 2pcs, Z-Axis 2pcs).

【Controller】
Based on open-source Grbl v1.1 the PROVer has stepped up to more powerful but silent drivers with added life and performance along with added Optocouplers to protect your mainboard from hard stops without risk of damage and eliminate signal noise for more consistent projects and longevity.

【Safety Design】
The included acrylic baffles reduce debris from getting all over your desk and make it easier to keep an eye on your current projects while working.

【All-aluminum body】
All-aluminum body and take advantage of the added stability for milling a wider range of materials.

【Emergency stop Button】
The emergency stop button can make cnc machine stop working immediately when you meet any accident or engraving mistake while working.
Package list of 3018-PROVer

1 x 3018-PROVer CNC Router (Some parts need to be assembled)
1 x Offline Control Module
1 x Tools Box (includes limit switches, emergency stop button, Z probe, etc)
1 x Nut Accessories Box
4 x CNC Clamps
10 x Engraving Bits
What makes our product Unique?
Easy assembly and built to perform with its all metal frame and included accessories.
This package is with fully additional accessories, offline module, limit switches, emergency stop button, Z probe, etc
Professional and close technical support
We have 20 years manufacturing experience in this field
