3040
Zhong Hua Jiang
Availability: | |
---|---|
Quantity: | |
01 Product Specification
3020 3 Axis | 3020 3 Axis | 3020 3 Axis | 3020 3 Axis | 6040 3 Axis | 6040 3 Axis | 6090 3 Axis | 6090 4 Axis | |
Effective working area | 210*300 *60mm (X*Y*Z) | 210*300 *60mm (X*Y*Z) | 290*380 *60mm (X*Y*Z) | 290*380 *60mm (X*Y*Z) | 400*570 *75mm (X*Y*Z) | 400*570 *75mm (X*Y*Z) | 900*570 *150mm (X*Y*Z) | 900*570 *150mm (X*Y*Z) |
Maximum thickness of engraving material | ≤70mm | ≤70mm | ≤70mm | ≤70mm | ≤100mm | ≤100mm | ≤150mm | ≤150mm |
Frame dimension | 440*310 *290mm | 440*310 *290mm | 525*400 *290mm | 525*400 *290mm | 750*570 *390mm | 750*570 *390mm | 1350*1030 *780mm | 1350* 1030 *780mm |
Frame material | 6061 T5 aluminum alloy | 6061 T5 aluminum alloy | 6061 T5 aluminum alloy | 6061 T5 aluminum alloy | 6061 T5 aluminum alloy | 6061 T5 aluminum alloy | 6061 aluminum alloy | 6061 aluminum alloy |
Screw type | Ball screw, diameter 12mm, | Ball screw, diameter 12mm, Thread pitch 2mm | Ball screw, diameter 12mm, Thread pitch 2mm | Ball screw, diameter 12mm, Thread pitch 2mm | Ball screw, diameter 16mm, Thread pitch 5mm | Ball screw, diameter 16mm, Thread pitch 5mm | ||
Postioning accurancy | 0.05mm | 0.05mm | 0.05mm | 0.05mm | 0.05mm | 0.05mm | 0.03mm | 0.03mm |
Speed (RPM) | 11000 | 11000 | 11000 | 11000 | 24000 | 24000 | 24000 | 24000 |
Stepper drive | 57 Stepper motor 2A | 57 Stepper motor 2A | 57 Stepper motor 2A | 57 Stepper motor 2A | 57 Stepper motor 2A | 57 Stepper motor 2A | 86 Stepper motor 3A | 86 Stepper motor 3A |
Spindle motor | 300W/800W /1500W | 300W/800W /1500W | 300W/800W /1500W | 300W/800W /1500W | 800W/ 1500W | 800W/ 1500W | 1500W /2200W | 1500W /2200W |
02 Product Advantage
Large Working Area

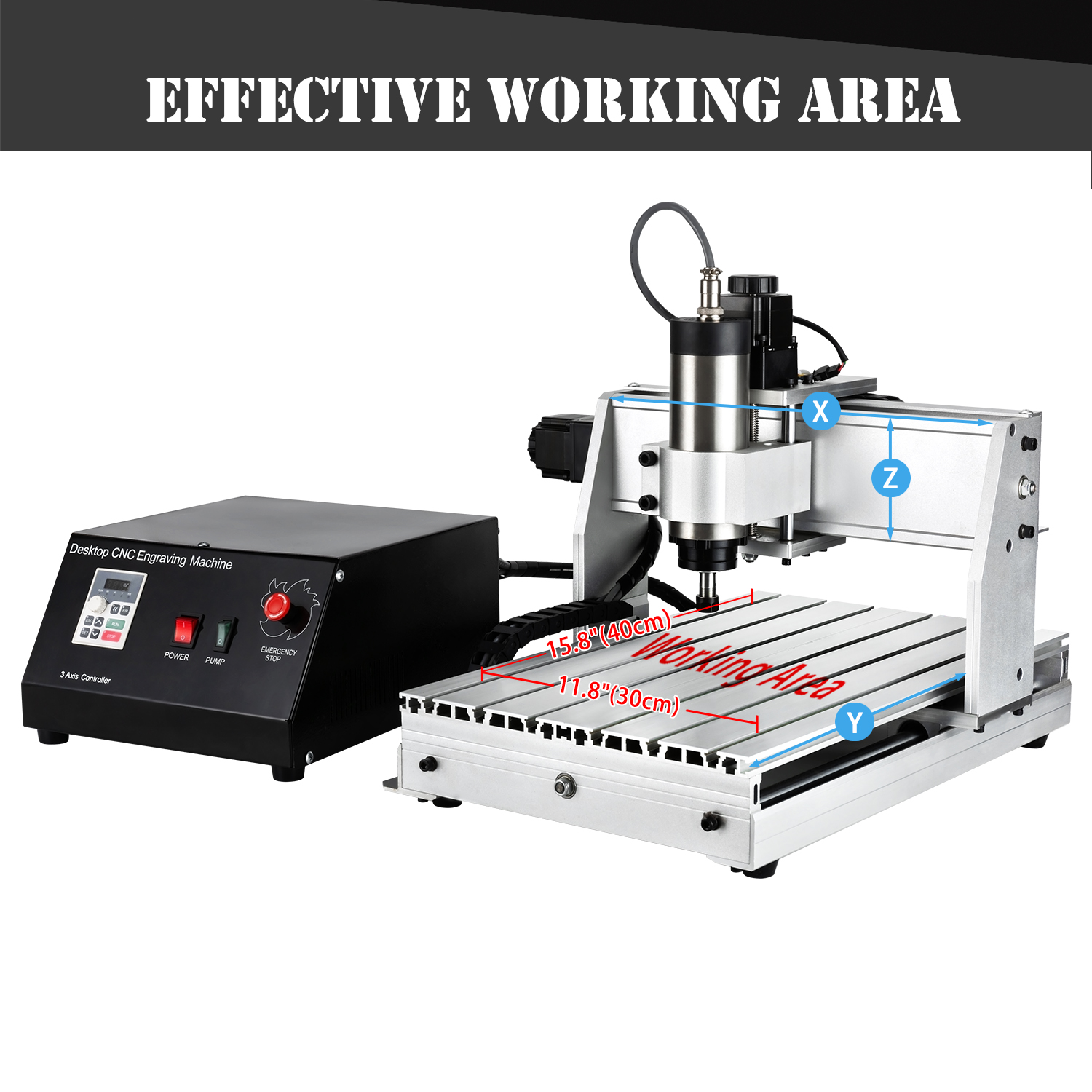

The effective engraving area of this engraving machine is 15.8(X) x 11.8(Y) x 2.4(Z) inches.
Three refined axes are designed to achieve plane engraving.
With the Knob, the axes can be moved manually, which facilitates the carving tool settings.
X & Y axis ball screw and nuts can reduce friction and improve accuracy.
Excellent Motor
This CNC engraving machine is equipped with three stepper motors(2A: 18V) and 300W DC Spindle motors with a 12000 r/min rotational speed or 800W/1500W air cooled spindle motor.
And the engraver supports Windows XP, Windows 7, Windows 8, Windows 10 system, and other software to directly import .nc/.ncc/.txt/.tap/ format files for engraving. High precision: less than 0.002 inches.
Upgraded Control Box
Flexible coupling can be used for high torque transmission.
This cutting machine has an independent offline controller.
1. No need to connect to the computer.
2. Arbitrary selection of offine files for engraving.
3. Manually adiust the X, Y, and Z axes position as the engraving starting point, manually turn on or off the spindle.
4. Helpful speed control and emergence stop bottoms.
5. Supported software: Mach 3.
Sturdy Material
The frame is mainly made of aluminum alloy materials, with high strength.
The chrome shafts are not easy to deform, designed aluminum dust-proof plate for easy cleaning, and suitable for long time use.
Moreover, it is durable enough to withstand the rigors of all-day use repeatedly.
03 Company Profile
"Zhong Hua Jiang" Brand Story
How we started?
Huajiang was founded in 2000,starting in the production of CNC engraving spindle motor,then expanded production to VFD(Variable Frequency Drive) and engraving machines .
To explore and develop more market,we established Brand “Zhong Hua Jiang” on 2018.
What makes us proud ?
We have registered patent for our series of air cooling spindle motor. The patent No:200730184245.5.
We have 20 years manufacturing experience in this field.
We have been exporting our products to all over the world including well-known company in USA and Germany.
04 Why Choose us
![]() | ||
Quality Assurance Superior quality performance Strict quality control | Patents and Certifications Several patents for air-cooled spindle motors | Additional Brand Value Brand value highly recognized by the market |
![]() | ||
Reasonable Price Direct factory sales Highly cost performance | Full time Service Professional technical support Close and quick customer service | Fast and Reliable Delivery Fast and efficient delivery system Real-time tracking and updates |
LEADING CNC MACHINE/CNC SPINDLE MOTOR
MANUFACTURER SINCE 2000
05 Product Certificate
06 Customer Feedback
07 FAQ
1. About Zhong Hua Jiang
Founded in 2000,we has over 20 years of experience in CNC engraving spindle motors and has expanded the product range to include Variable Frequency Drives (VFD) and engraving machines.
2. What are your main products?
Our company manufactures various models and specifications of spindle motors, all of which are compatible with CNC machine tools produced by medium and large professional manufacturers both domestically and internationally. Notably, the company's patented air-cooled spindle series has been especially well-received.
3. How should we guarantee the products' quality?
Each category of products will undergo strict quality control before leaving the factory and we will also check them one by one when shipping.
