3018 CNC Enclosure with Acrylic Panels and Magnetic Door

3018 CNC Enclosure with Acrylic Panels and Magnetic Door

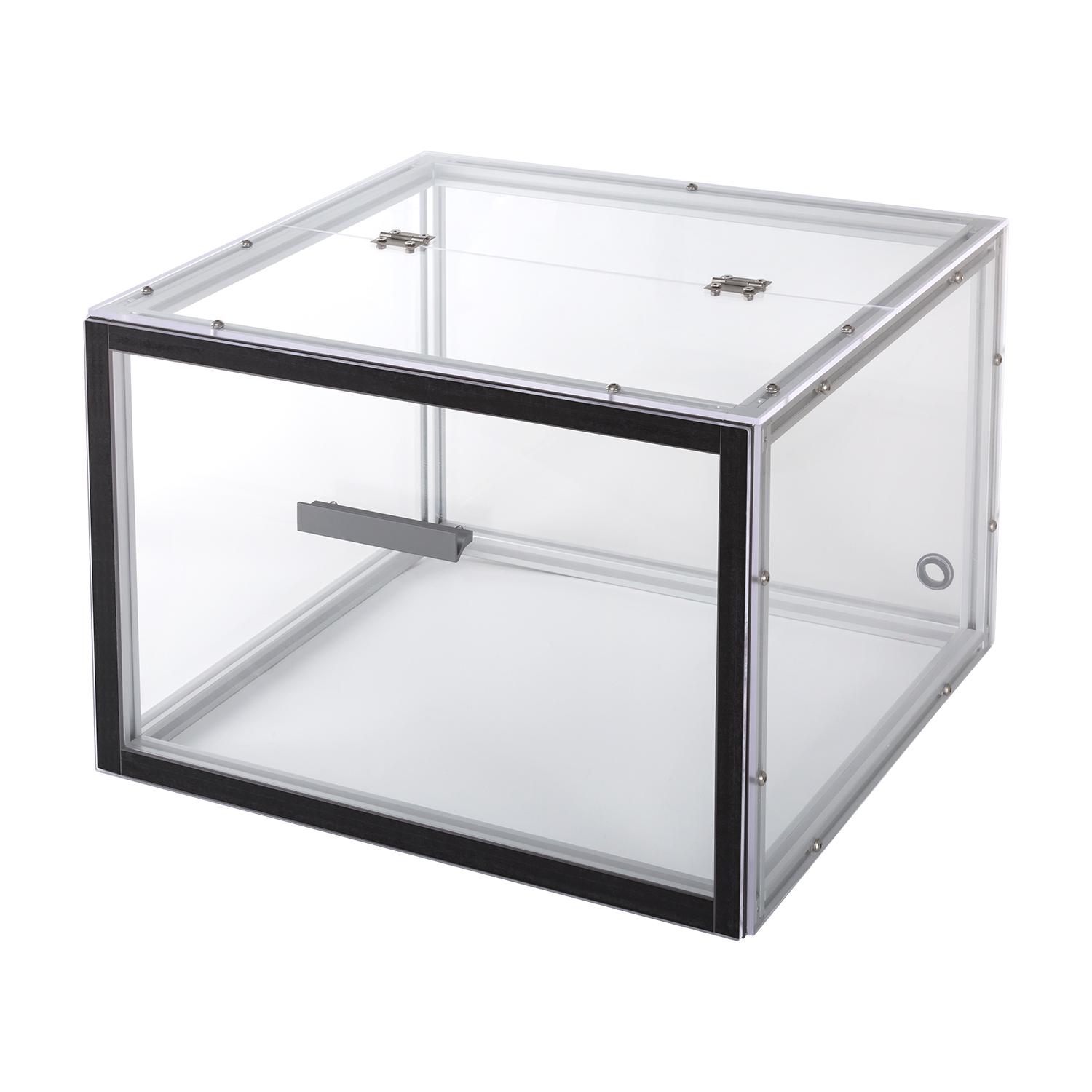

The Zhong Hua Jiang 3018 CNC Enclosure is designed to surround compatible desktop CNC router machines and help contain machining dust and reduce operating noise. It uses aluminum profiles, acrylic shields and a pre-installed magnetic front door, allowing operators to observe the machining process through the panels.

With an overall size of 510 × 455 × 335 mm (approximately 20 × 17.9 × 13.2 inches), this enclosure is listed for CNC Router 3018 PRO, 3018, 3018 MX3, 1810 PRO and 1610 machines. Confirm the actual machine dimensions and any installed accessories before purchase.

Request Product Details & Quotation

Key Features of the 3018 CNC Router Enclosure

Compatibility with Popular Desktop CNC Routers

The enclosure is listed as compatible with 3018 PRO, 3018, 3018 MX3, 1810 PRO and 1610 CNC router machines. Because frames, upgrades and attachments can vary, verify available internal clearance and cable routing for your exact configuration.

Dust Containment and Noise Reduction

The surrounding acrylic panels help limit the spread of chips and dust outside the working area and can reduce perceived machining noise. The enclosure is not described as fully sealed or soundproof, and a verified noise-reduction rating is not provided.

Magnetic Front Door and Detailed Frame Construction

The front door and door frame are pre-installed with magnetic tape for convenient access. ABS strips are fitted within the frame sections to help limit dust entering the profiles. A soft mat supports easier cleaning, while a rubber-lined wire opening helps protect cables passing through the enclosure.

Assembly-Friendly Design

Selected components, including the front door, are pre-assembled. The original package information includes an installation manual to support assembly of the remaining enclosure parts.

3018 CNC Enclosure Product Details

Reduced Operating Noise

The acrylic enclosure creates a physical barrier around the desktop router and can help make machining operations quieter. Actual sound reduction depends on the router, spindle, cutting material and operating conditions.

Cleaner Workspace and Visible Machining Area

The acrylic shields help keep chips and some machining dust within the enclosure while allowing the operation to remain visible. Use suitable dust extraction and personal protective equipment as required for the material and machining process.

Pre-Installed Magnetic Door

The front door and frame are supplied pre-installed with magnetic tape. This arrangement supports convenient opening and closing for machine setup, cleaning and material access when the router is stopped.

Straightforward Enclosure Assembly

The enclosure uses aluminum profiles, acrylic shields and joint parts. Some components are pre-assembled, and the package includes an installation manual. Follow the instructions carefully and check that all panels, joints and door fittings are secured before operation.

Dimensions and CNC Router Compatibility

The overall enclosure size is 510 × 455 × 335 mm (L × W × H), equivalent to approximately 20 × 17.9 × 13.2 inches. Listed compatible machines are CNC Router 3018 PRO, 3018, 3018 MX3, 1810 PRO and 1610. Check the complete machine footprint, spindle travel, wiring and attachments before selecting the enclosure.

3018 CNC Enclosure Specifications

3018 CNC Enclosure Package List

The original product package list specifies the following enclosure components:

• 8 × Aluminum Profiles

• 4 × Acrylic Shields

• 1 × Door Frame

• 1 × Pre-Installed Door

• 1 × Door Handle

• 1 × Soft Mat

• 4 × Joint Parts

• 4 × Small Tool and Screw Bags

An installation manual is also described in the original product information. The CNC router machine itself is not listed among the enclosure package components.

Selection Notes for CNC Equipment Buyers

Before ordering an enclosure for a CNC 3018-series machine, confirm the machine's actual footprint and maximum movement envelope. Allow for protruding motors, upgraded spindles, cable connectors and any added accessories. Check whether the intended cutting process needs a separate dust extraction connection.

The acrylic panels are described as dust- and noise-reducing enclosure components, not as a certified machine guard, complete dust collection system or laser protective barrier. Do not assume suitability for laser operations without verified protective material specifications and application-specific safety measures.

Ask About Compatibility & Bulk Orders

About Zhong Hua Jiang

Huajiang began manufacturing CNC engraving spindle motors in 2000 and later expanded into variable frequency drives (VFDs) and CNC engraving machines, including the 3018, 3020, 3040 and 6040 series. The Zhong Hua Jiang brand was established in 2018.

The company also describes its patented air-cooled spindle motor series, patent number 200730184245.5. This patent relates to its spindle motor products rather than a stated certification or patent for this CNC enclosure.

Frequently Asked Questions About the 3018 CNC Enclosure

Which CNC machines are compatible with this enclosure?

The listed compatible models are CNC Router 3018 PRO, 3018, 3018 MX3, 1810 PRO and 1610. Actual fit can vary with machine revisions, spindle upgrades and attachments, so please verify dimensions before ordering.

What are the overall dimensions of the CNC 3018 enclosure?

The specified overall dimensions are 510 × 455 × 335 mm (length × width × height), or approximately 20 × 17.9 × 13.2 inches. These are overall enclosure dimensions, not confirmed internal working clearances.

Does the acrylic enclosure reduce CNC router noise?

The enclosing panels can help reduce perceived machining noise. No verified decibel reduction is provided in the available product information, and actual results depend on operating conditions.

Does the enclosure prevent CNC machining dust from escaping?

It is designed to help contain dust and chips in the machine area, using acrylic shields and frame details. It is not specified as airtight and does not replace appropriate dust extraction or workplace ventilation.

What materials are used in the enclosure?

The original product details identify aluminum frame profiles and acrylic shields, along with magnetic door tape, ABS frame strips, a soft mat and a rubber-lined wire opening. Panel thickness is not specified in the available description.

Is the CNC router included with the enclosure?

The listed package contents cover enclosure panels, frame parts, door components, mat and hardware. A CNC router machine is not included in the published package list.

Is assembly required?

Yes. Some components, including the door and front frame, are pre-installed, while the remaining parts require assembly. The original product description states that an installation manual is supplied.

Can this acrylic CNC enclosure be used for laser engraving?

Do not assume that standard acrylic CNC enclosure panels provide suitable laser radiation protection. Laser use requires verified shielding designed for the laser wavelength and power, together with appropriate ventilation and safety measures.

How can distributors request product and order information?

Contact Zhong Hua Jiang with the required enclosure quantity, target CNC machine models, delivery destination and any fitting questions. This helps clarify the appropriate product configuration and quotation requirements.
