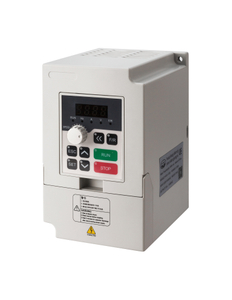

VFD 110V 1.5KW 2hp Variable Frequency Drive CNC VFD Motor Drive Inverter Converter for CNC Spindle Motor

Zhong Hua Jiang 110V 1.5KW 2HP CNC VFD Inverter for Spindle Motor

This Zhong Hua Jiang 110V 1.5KW CNC VFD inverter is designed for three-phase 110V asynchronous CNC spindle motors. It converts single-phase 110V input into three-phase 110V output, making it suitable for CNC routers, engraving machines, woodworking machines, and other spindle speed control applications.

The VFD supports 0–400Hz output frequency, MODBUS485 communication, Mach3 control, built-in brake unit connection, DSP vector control, multi-speed operation, and multiple fault protection. It is pre-programmed with basic spindle parameters to help users complete installation and commissioning more efficiently.

Key Features

• 1.5KW / 2HP CNC VFD inverter for three-phase 110V spindle motors.

• Single-phase 110V input and three-phase 110V output.

• 0–400Hz output frequency for CNC spindle speed control.

• Pre-programmed basic parameters for easier setup.

• MODBUS485 communication and Mach3 control support.

• Built-in brake unit for direct brake resistor connection.

• DSP vector control for high torque at low speed.

• Multiple fault protection for safer CNC operation.

• Large cooling fan and independent heat dissipation channel.

• Suitable for CNC routers, engraving machines, and spindle motor systems.

Technical Parameters

• Product: CNC VFD inverter / variable frequency drive

• Power: 1.5KW / 2HP

• Input voltage: Single-phase 110V

• Output voltage: Three-phase 110V

• Input frequency: 50/60Hz

• Output frequency: 0–400Hz

• Applicable motor: Three-phase 110V asynchronous CNC spindle motor only

• Dimension: 90 × 118 × 150mm / 3.5 × 4.65 × 5.9 inches

• Weight: 1.3kg / 2.87lbs

Product Description

Pre-Programmed CNC VFD for Easy Setup

The VFD has been pre-programmed with basic spindle parameters, so users do not need to complete complex initial configuration before operation. The default maximum frequency is 400Hz, and spindle speed can be adjusted through the frequency button or external control system.

This inverter is designed with single-phase input and three-phase output, making it a practical choice for workshops using 110V power supply while operating three-phase CNC spindle motors.

Brake Resistor Connection and MODBUS485 Communication

This CNC VFD supports Mach3 and MODBUS485 communication. The built-in brake unit allows the inverter to connect directly with a brake resistor, helping improve deceleration performance and spindle control stability in CNC machining applications.

Large Air Volume Cooling Fan

The cooling fan provides more than 20% higher air volume than ordinary fans. An independent heat dissipation air channel inside the VFD helps protect the circuit board from dust and water mist, supporting stable operation in CNC workshops.

Multiple Fault Protection

The inverter includes built-in PID setting, speed tracking, multi-function relay output, multiple fault protection, multiple status feedback, torque control, and analog setting. These functions help protect the VFD and spindle motor during CNC routing and engraving operation.

High Torque at Low Speed

DSP vector control enables the spindle motor to achieve high torque during low-speed rotation. Dead zone compensation and automatic torque difference compensation can provide low-frequency 0.25Hz and 180% high torque output for demanding CNC spindle applications.

Adjustable 16kHz Carrier Frequency

The carrier frequency is adjustable up to 16kHz. Automatic voltage regulation technology helps ensure VFD load capacity and stable spindle motor performance during CNC machining.

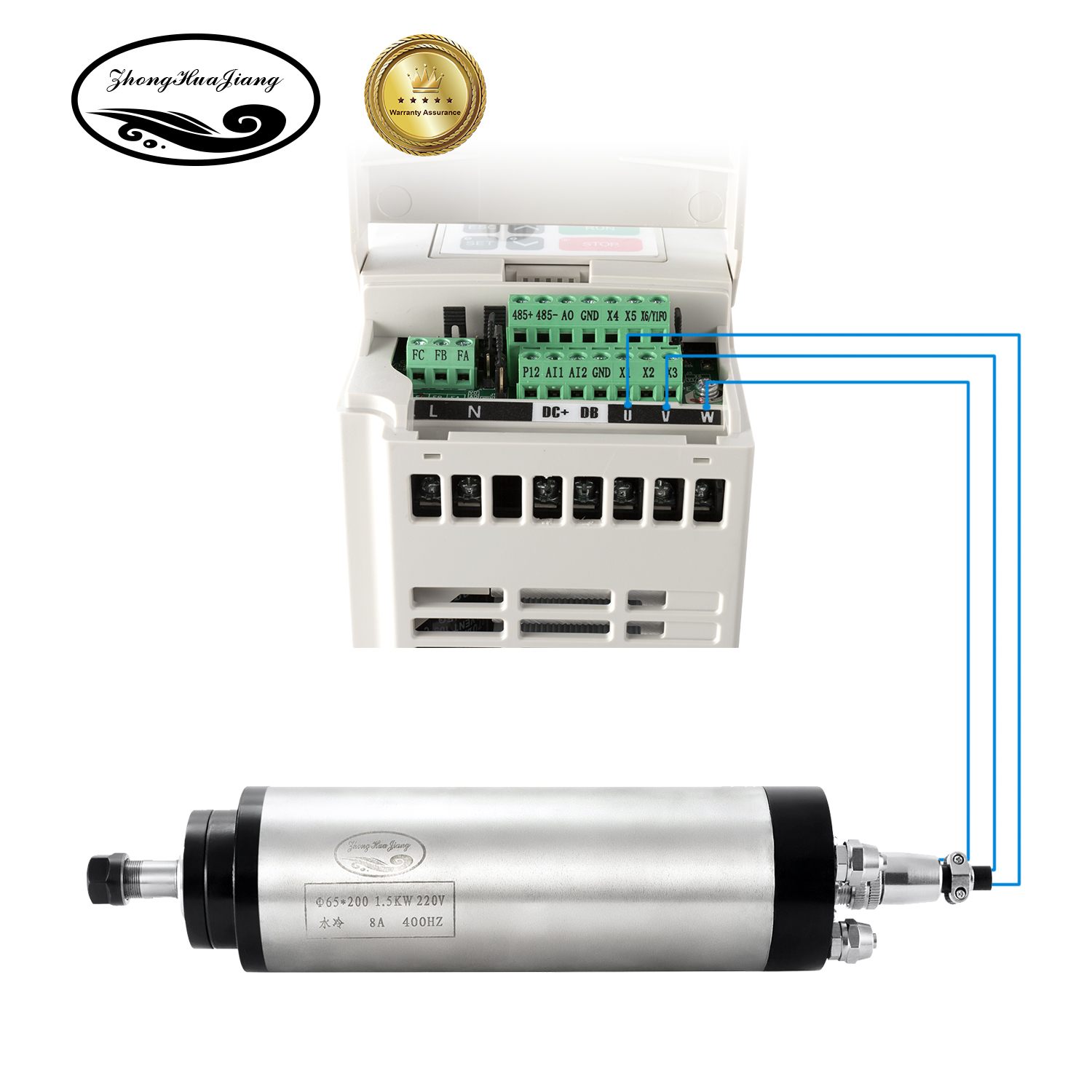

Wiring Diagram of VFD

Wiring Diagram Between VFD and Control Board

This VFD is applicable only to three-phase 110V asynchronous CNC spindle motors.

Connect the spindle motor to the U / V / W terminals on the VFD.

What Makes This CNC VFD Unique?

• Designed for 110V 1.5KW / 2HP CNC spindle motor applications.

• Pre-programmed basic parameters reduce setup time.

• Brake resistor connection supports better deceleration control.

• DSP vector control provides high torque at low speed.

• Multiple fault protection improves operational safety.

• Independent cooling channel helps reduce dust and moisture impact.

• Zhong Hua Jiang has long-term manufacturing experience in CNC spindle motors, VFDs, and engraving machines.

Brand and Manufacturing Background

Huajiang was founded in 2000, beginning with the production of CNC engraving spindle motors and later expanding into VFD variable frequency drives and engraving machines. The Zhong Hua Jiang brand was established in 2018 to support broader international market development.

The company has manufacturing experience in CNC spindle motors and VFD products, exports to global markets, and provides support for CNC router machine users, distributors, and B2B buyers.

FAQ

What spindle motor is this 1.5KW VFD compatible with?

This VFD is suitable only for three-phase 110V asynchronous CNC spindle motors. It should not be used with motors that do not match the voltage, phase, and power requirements.

Can this VFD convert single-phase 110V to three-phase 110V?

Yes. The VFD uses single-phase 110V input and provides three-phase 110V output for compatible CNC spindle motors.

Is this CNC VFD pre-programmed?

Yes. The VFD is pre-programmed with basic parameters. Users can adjust the frequency according to the required spindle RPM, with the default maximum frequency set at 400Hz.

Does this VFD support Mach3 and MODBUS485?

Yes. This VFD supports Mach3 control and MODBUS485 communication, making it suitable for CNC router control systems.

Can I connect a brake resistor to this VFD?

Yes. The VFD includes a built-in brake unit and can be connected directly to a compatible brake resistor for improved deceleration control.

What CNC applications is this VFD used for?

It is commonly used for CNC routers, CNC engraving machines, woodworking machines, and other equipment that requires variable speed control for a compatible 110V three-phase spindle motor.
