Square ER25 220V/380V 4KW Air Cooled Spindle Motor Kit With VFD Kit for CNC Router Engraving Machine

ER25 4kW Square Air-Cooled CNC Spindle Motor VFD Kit

The     ER25 4kW square air-cooled spindle motor kit    combines a 4kW CNC spindle, matching 4kW VFD and listed accessories for CNC router manufacturers, distributors and professional workshops. The spindle offers ER25 toolholding and published 220V/380V options; verify the chosen motor and drive versions before ordering.

  Request ER25 4kW Spindle VFD Kit Pricing

ER25 4kW Spindle Motor Video

ER25 4kW Square Spindle and VFD Kit Overview

The     Zhong Hua Jiang ER25 4kW square air-cooled CNC spindle motor VFD kit    is a matched spindle-and-inverter package for CNC router manufacturers, professional machining shops, equipment resellers and industrial retrofit projects. It combines a 4kW square spindle motor with an included 4kW variable-frequency drive (VFD) for controlled CNC routing and engraving.

The published kit provides an     ER25 collet interface    , a     4kW VFD    , ER25 collets, drill bits, aviation cable, power cable and wrenches. Motor options are listed as     220V / 380V    , with a published speed range of     10,000–18,000 RPM    . Confirm the correct motor voltage, inverter input/output specification and packing configuration for each order.

Air cooling uses the motor’s fan and airflow path instead of an external cooling pump, tank or water circuit. This makes the set practical for woodworking CNC routers, sign-making machines and other suitable workshop systems where installation footprint, service access and machine compatibility are important.

  Get an ER25 4kW Square Spindle Kit Quote

  View Zhong Hua Jiang CNC Product Catalogue 2025 (PDF)

Zhong Hua Jiang CNC Product Catalogue (PDF)

ER25 4kW Square Spindle and VFD Specifications

The specification overview below distinguishes the included VFD from the spindle motor and identifies dimensions or accessory descriptions that should be checked before machine integration.

The 4kW square spindle-and-VFD kit is intended for high-frequency machining of wood, MDF, acrylic, PVC and other compatible materials. Review the table below and specify the required motor voltage, electrical supply, mounting requirements and toolholder configuration before requesting a quotation.

  Collet quantity confirmation:    The source packing table lists 13 ER25-6mm collets. Please request an itemized collet-size list before ordering. The listed     42 × 41 × 20cm    is a package reference, not a square-spindle body dimension.

  Confirm 4kW Spindle Kit Specification and Accessories

CNC Routing, Engraving and Milling Applications

The described kit is intended for professional machining applications using appropriately selected tools. Actual capacity depends on the machine frame, rigidity, tool, workholding, cutting parameters and duty cycle.

Common applications include professional CNC woodworking, MDF panel routing, acrylic signage, PVC and plastics machining and selected light-duty aluminium or brass work. Tool choice, feeds, machine rigidity and safe spindle loading determine actual machining capability.

Wood, MDF and Furniture Panel Routing

Acrylic Signage, PVC and Plastic Machining

Light Aluminium and Brass Machining

Key Features of the ER25 4kW Spindle VFD Kit

Technical selection should begin with the complete spindle-and-inverter system: motor nameplate, matched VFD, controller wiring, collet setup and safe enclosure / cooling airflow.

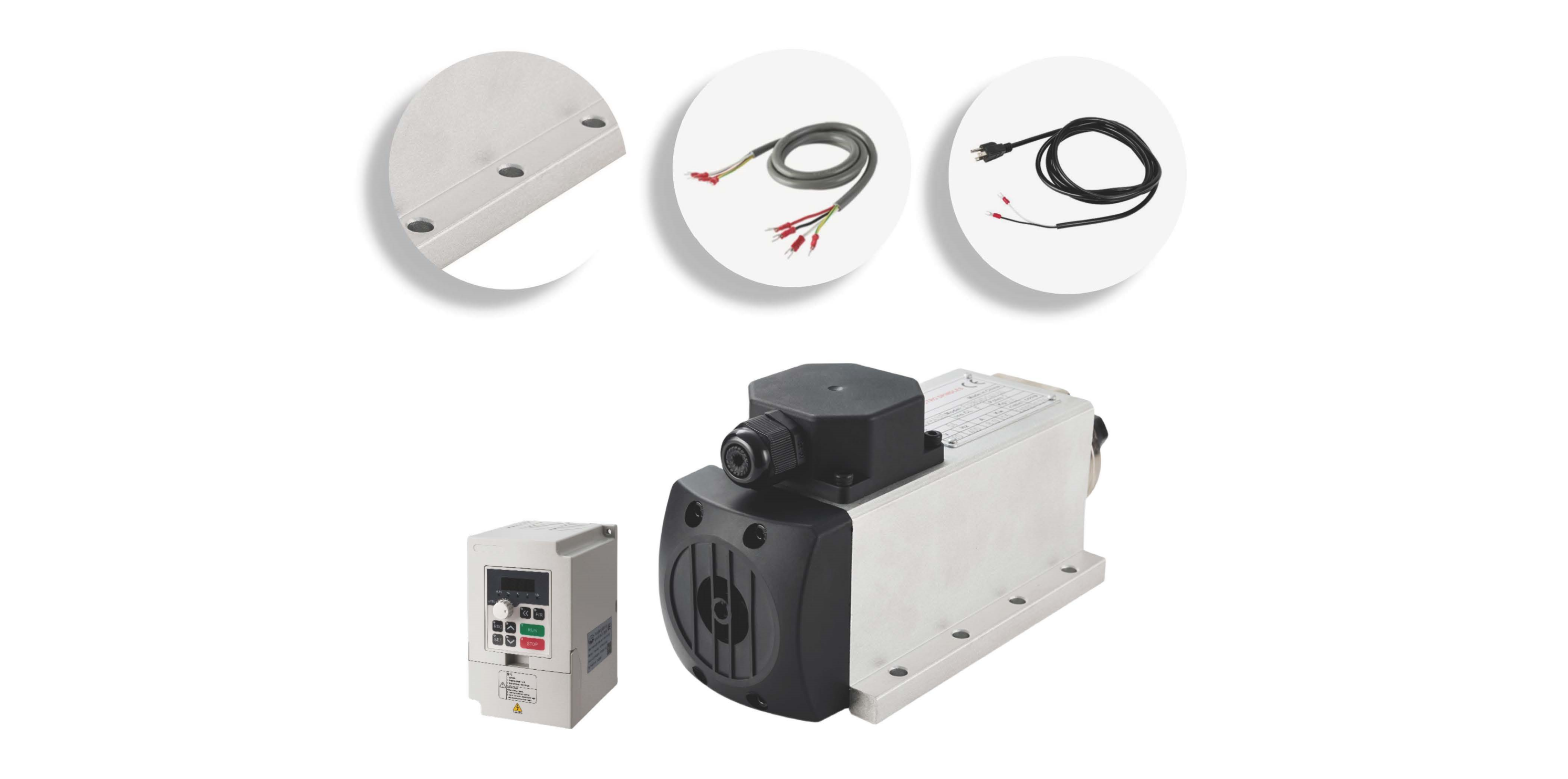

This spindle package combines the square     4kW ER25 motor    and a     4kW VFD    with accessories for suitable CNC machine integration. Compared with motor-only replacement products, the kit is intended for buyers who also require the matching inverter and associated electrical connections.

For the listed version, the website publishes     220V/380V options    ,     10,000–18,000 RPM    and     10A    for the spindle. The VFD parameters must be set for the delivered motor rather than copied from a different motor series; verify the actual nameplate and the inverter manual before commissioning.

4kW VFD Control and Motor Matching

The included     4kW VFD inverter    provides the means to control spindle speed and operating parameters. CNC controller integration depends on the inverter interface, electrical wiring and supported control functions. Confirm the exact drive model and input power requirements with the supplier.

ER25 Collet and Cutter Shank Compatibility

The     ER25    system accepts suitably sized ER25 collets to grip compatible tool shanks. Select the collet according to the actual shank diameter. The published packing list says “13 × ER25-6mm Collets”; buyers should confirm the sizes and quantity of the supplied set before placing an order.

CNC Controller and PLC Interface Requirements

A compatible CNC or PLC controller may be able to command spindle start/stop and speed through the inverter’s supported interfaces. Check the selected inverter documentation for available terminals, analogue control, communication protocols and required programming.

220V / 380V Electrical Configurations

The product offers     220V and 380V variants    . The corresponding spindle and VFD must be matched to the site electrical supply, motor winding voltage, frequency and output-current requirements. A qualified technician should complete electrical installation, grounding and protection settings.

Speed Control and Rated RPM

The published spindle operating range is     10,000–18,000 RPM    . Set the maximum output frequency and spindle speed according to the exact motor nameplate and drive documentation. Images depicting other spindle versions do not change the rated limit of the ordered configuration.

Air-Cooling and Workshop Ventilation

The integrated air-cooling design avoids an external water-circulation unit. When installing the spindle, leave adequate space around air inlets and outlets, control dust accumulation and follow the manufacturer’s operation and cooling instructions.

  Ask About 220V / 380V ER25 VFD Kits

Advantages of the Air-Cooled 4kW Spindle Kit

The retained product image shows information about speed and frequency upgrades across spindle versions. Always follow the rated parameters for the actual purchased 4kW motor; a generic marketing image does not override the product nameplate.

Dynamic Balancing and Vibration

The spindle maker describes dynamic balancing as a method of controlling vibration during operation. Cutting quality also depends on tool balance, tool clamping, spindle mounting, feed rate and the stiffness of the CNC machine.

Spindle Bearings and Construction

The published feature description mentions upgraded bearings, copper rotor windings and a square motor housing. Bearing material and arrangement should be specified for the exact supplied model; working life depends on load, temperature, dust exposure and maintenance.

Our Spindle Motor	Other Spindle Motor
Runout less than 0.005mm	Runout 0.05mm

Comparison measurements depend on the specified test instrument, collet, measurement position and conditions. Confirm acceptance criteria for precision-sensitive production orders.

Runout, Concentricity and Inspection

The retained comparison photos and table illustrate spindle runout examples, including a value below     0.005mm    . Precision-critical buyers should specify the collet, inspection point, measuring method and acceptable runout in the purchase agreement instead of relying on an illustrative comparison alone.

Spindle Runout Comparison

Square Spindle Installation

The kit includes aviation wiring, power wiring and three wrenches according to the original package list. The spindle housing is designed for a square-motor mounting arrangement. Check fixing holes, tool clearance, cable routing and electrical connections before machine assembly; verify VFD parameters before the first run.

Check the VFD Parameters Before Operation

Spindle Kit Packaging and Accessories

The original packing table under Technical Specifications provides the quantities. Check cable connector and length, VFD model and collet-size distribution when ordering.

  Request a Confirmed 4kW VFD Kit Packing List

Zhong Hua Jiang offers ER25 4kW spindle kit configurations to distributors, machine builders and professional CNC users. Please include your required voltage, power supply, CNC controller, tooling, purchasing quantity and destination when requesting a matched-kit quote.

Related Air-Cooled CNC Spindle Motor Kits

Please select a related model using its own product specifications; 0.5kW through 4kW models can differ in housing format, collet, speed range, inverter power and included accessories.

Other air-cooled spindle kits are available for smaller ER11/ER16/ER20 toolholding requirements and alternative spindle housing styles. The links below lead to separate products with their own power ratings, package lists and inverter requirements.

      ROUND



         ER11 0.5KW Air Cooled Spindle Motor Kit



         ER11 0.8KW Air Cooled Spindle Motor Kit



         ER11 1.5KW Air Cooled Spindle Motor Kit



         ER16 1.5KW Air Cooled Spindle Motor Kit



         ER20 2.2KW Air Cooled Spindle Motor Kit



         ER20 3KW Air Cooled Spindle Motor Kit

      SQUARE



         ER11 1.5KW Air Cooled Spindle Motor Kit



         ER16 1.5KW Air Cooled Spindle Motor Kit



         ER20 2.2KW Air Cooled Spindle Motor Kit



         ER20 3KW Air Cooled Spindle Motor Kit



         ER25 4KW Air Cooled Spindle Motor Kit
