CNC Spindle Motor Manufacturer Checklist: Bearings, Runout, VFD Matching, And Warranty

Power ratings alone do not make a reliable CNC spindle motor.

Real precision and support matter much more.

A poor choice can cause rough cuts, short tool life, vibration, and costly downtime.

Before buying, you need to check more than the nameplate.

Bearings, runout, VFD matching, and warranty all matter.

In this post, you’ll learn how to evaluate a CNC spindle motor manufacturer with confidence.

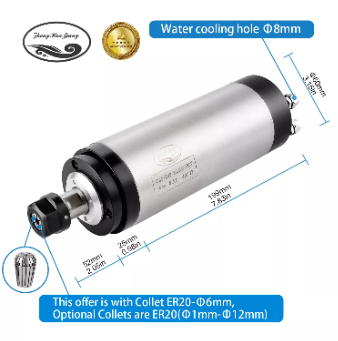

We’ll also use Zhong Hua Jiang as an example, covering spindle options, matched VFD kits, and technical support.

Checklist Item 1: CNC Spindle Motor Bearings and Bearing Layout

Why Bearings Matter More Than Many Buyers Think

When people compare a CNC Spindle Motor, they often start with power. That makes sense, but it is not enough. The bearings are the parts doing the hard work every second.

They support the rotor, absorb cutting force, and help the tool stay steady. If they are weak, the spindle may still spin fast. But it will cut poorly, shake more, and wear tools faster.

For daily production, bearing quality affects four things buyers care about most:

• Service life: Better bearings handle heat and load more smoothly. They reduce early failure during long machining cycles. This matters for workshops running jobs all day.

• Rigidity: A rigid bearing layout keeps the spindle nose stable. It helps the cutter stay centered. You get cleaner edges and fewer size errors.

• Vibration control: Poor bearings create noise and chatter. That vibration reaches the cutter quickly. It can leave marks on wood, acrylic, PCB, or aluminum parts.

• High-speed stability: Many CNC spindle motors run at 18,000 to 24,000 RPM. At those speeds, small bearing problems become big problems. Heat, friction, and imbalance all grow faster.

What Bearing Configuration Should Buyers Look For?

A good CNC Spindle Motor should not rely on cheap, basic bearings. Buyers should ask about bearing type, precision grade, layout, and preload. These details tell you much more than the power label.

High-precision angular contact ball bearings are often preferred for cutting loads. They can handle radial and axial force better. This is important during engraving, drilling, milling, and side cutting.

A multi-bearing layout is also worth checking. More support near the spindle nose usually means better rigidity. It helps reduce tool wobble when the cutter enters harder material.

Zhong Hua Jiang, for example, uses four upgraded high-precision steel bearings as a standard configuration. Its material also notes dynamic balance support to reduce bearing friction noise and vibration during high-speed operation.

How Bearing Quality and Sealing Affect Spindle Life

Bearings rarely fail for one reason only. They usually fail because heat, dust, coolant, and vibration build up together. That is why sealing matters almost as much as the bearing itself.

In woodworking, fine dust is everywhere. In PCB and soft metal machining, small chips can move toward the spindle nose. In wet or mist-cooled cutting, moisture can also reach sensitive areas.

A good sealing design helps block this damage before it starts. Dust-proof and water-proof sealing near the spindle nose protects the bearing chamber. It also lowers the chance of grease contamination.

For buyers, this is a practical maintenance issue. Better sealing can mean fewer bearing replacements. It can also mean less downtime, fewer emergency repairs, and more predictable production.

Questions to Ask Before Choosing a Manufacturer

Before placing an order, ask simple questions. Good manufacturers should answer them clearly. If they avoid details, that is usually a warning sign.

• What bearings are used inside this CNC Spindle Motor? Ask for the bearing type, quantity, and precision level. Do not accept only “high quality” as an answer. You need real technical details.

• How are the bearings arranged inside the spindle? A layout drawing or explanation is helpful. It tells you if the spindle has enough support near the nose. This matters during heavier cutting.

• Is the spindle designed for long-hour machining? Ask about heat control, sealing, lubrication, and balance. A spindle for short hobby jobs may not suit factory use. The duty cycle should match your workload.

• Do you support bearing replacement after purchase? Bearings are wear parts in real production. You need repair guidance, replacement support, or service documents. This is especially important for distributors and OEM buyers.

• How is vibration controlled before shipment? Ask about dynamic balancing and factory inspection. A stable spindle should not depend on luck. It should leave the factory already checked.

Checklist Item 2: CNC Spindle Motor Runout and Dynamic Balancing

What Is Spindle Runout?

Spindle runout means the tool does not rotate perfectly on center. It may look small, but it can change the whole cutting result. In CNC machining, even a tiny movement at the tool tip can affect accuracy, surface finish, and tool life.

Total indicated runout, or TIR, is the measured amount of this off-center movement. It is often checked at the spindle nose, inner taper, or tool tip. For buyers, the tool-tip value is especially useful because it shows what the cutter actually experiences during work.

A low-runout CNC Spindle Motor keeps the cutter more stable. It helps the edge cut evenly instead of scraping or bouncing. That is why precision engraving, PCB cutting, and soft metal milling all depend heavily on runout control.

Why Runout Directly Affects Tool Life

Think of runout like a car wheel out of balance. It still turns, but it does not run smoothly. A cutter has the same problem when the spindle is not concentric.

When runout is too high, one side of the tool cuts harder than the other. That creates uneven load, heat, chatter, and faster edge wear. Small tools suffer first because they have less strength.

• Poor engraving quality: Letters, logos, and fine lines may look rough or uneven. The tool does not follow the path cleanly. This is a common pain point for advertising shops and sign makers.

• Dimensional errors: The cutter may remove more material on one side. Holes can become oversized. Slot widths may become inconsistent during batch work.

• Shorter cutter life: Uneven cutting pressure damages the tool edge. It can also increase heat near the cutting point. Over time, buyers spend more on replacement tools.

• More spindle stress: High runout does not only hurt the cutter. It also adds load to bearings and the rotor. That can shorten spindle service life.

What Runout Standard Should Buyers Look For?

For a CNC Spindle Motor, buyers should ask for a clear number, not a vague claim like “high precision.” A useful target is low runout at the tool tip. Zhong Hua Jiang, for example, controls TIR at ≤0.005 mm at the tool tip as a factory inspection standard.

For wood routing, small runout may look less serious at first. But in acrylic, PCB, aluminum, and brass, it becomes obvious quickly. You see it in burrs, rough edges, tool marks, and unstable cutting sound.

Why Dynamic Balancing Is Just as Important

Runout is about center accuracy. Dynamic balancing is about smooth rotation at speed. Both are needed if the spindle runs at 18,000 RPM, 24,000 RPM, or near that range.

A balanced rotor reduces vibration before it reaches the tool. It also protects bearings because they do not fight constant shaking. That means smoother cuts, less noise, and better stability during longer machining jobs.

Buyers should not treat balancing as a small detail. A CNC Spindle Motor can have acceptable static runout, but still vibrate badly at speed. That is why dynamic balancing data, factory testing, and machining quality all deserve attention.

Ask the manufacturer for practical proof:

• Runout measurement data from factory inspection.

• Dynamic balancing information for the rotor assembly.

• Spindle shaft and collet surface details related to finish machining.

• Application advice for engraving, PCB work, soft metal milling, and long-hour use.

• Quality control process for repeat orders, especially for distributors and OEM buyers.

Checklist Item 3: CNC Spindle Motor VFD Matching and Electrical Compatibility

Why VFD Matching Is Critical

A CNC Spindle Motor depends on its Variable Frequency Drive. The spindle makes the cut, but the VFD controls how it starts, speeds up, slows down, and holds torque.

A strong spindle can still perform badly if the VFD is wrong. We see this often in small workshops. The motor looks correct on paper, yet it loses speed once the cutter touches material.

This matters more at high speed. Many CNC spindle motors run between 10,000 and 24,000 RPM. At this range, poor electrical matching can cause heat, unstable rotation, or weak cutting power.

What Can Go Wrong If the VFD Is Incorrect?

A mismatched VFD usually does not fail in a clean way. It often starts as small problems, then turns into downtime. Buyers may blame the spindle first, but the setup may be the real issue.

For example, a 400Hz spindle should not be treated like a normal low-frequency motor. It needs the right VFD range and settings. If those values are guessed, the buyer takes an unnecessary risk.

VFD Parameters Buyers Should Confirm

Before ordering a CNC Spindle Motor, ask for the motor data sheet and VFD setup guide. Good suppliers should explain the key values clearly. They should not leave buyers to search forums for basic settings.

Check these points before installation:

• Base frequency and maximum frequency: These values decide the usable speed range. If they are wrong, the spindle may run too slowly or too fast. This can hurt both cutting quality and motor life.

• Rated current and voltage: These settings protect the motor during real cutting. If current is too low, torque becomes weak. If it is too high, the winding may overheat.

• Pole count and speed range: These affect speed calculation and control accuracy. They help the VFD understand how the spindle should respond. This is useful for stable RPM control.

• Recommended wiring method: Clear wiring reduces mistakes. Pre-soldered aviation wires can save time. They also reduce loose connections during installation.

Zhong Hua Jiang supplies matched VFD kits for its spindle packages. Its materials mention factory-calibrated parameters, 400Hz VFDs for light and medium spindles, and 300Hz industrial VFDs for 7.5KW heavy-duty models.

Why Pre-Programmed VFD Kits Help Buyers

A pre-programmed VFD kit is useful because it removes guesswork. The spindle and inverter are already matched before shipment. Buyers can spend less time setting parameters and more time testing cuts.

This is especially helpful for first-time buyers, CNC router builders, and distributors. They do not need to explain complex VFD setup to every end user. The package becomes easier to sell, install, and support.

A matched kit also improves consistency. If a buyer orders several machines, they want each CNC Spindle Motor to behave the same way. Factory-set parameters help keep speed response and torque output more predictable.

Control compatibility still needs attention. Many buyers use GRBL or other mainstream CNC control systems. The VFD should support stable speed regulation under different cutting loads, from light engraving to deeper milling.

Checklist Item 4: CNC Spindle Motor Warranty, Documentation, and Technical Support

Why Warranty Matters for CNC Spindle Motor Buyers

A CNC Spindle Motor works under heat, speed, dust, and cutting pressure every day. Many units run at 18,000 RPM, 24,000 RPM, or close to those speeds. At that level, a small setup mistake can turn into bearing noise, electrical faults, or downtime.

Warranty is not only about free parts. It shows how much confidence the manufacturer has in its own production. For buyers, it reduces risk before the first order, especially when buying in bulk or building CNC router systems for resale.

If a supplier only talks about price, be careful. A low-cost spindle can become expensive after one failed job. You need clear warranty terms, fast answers, and support after the shipment leaves the factory.

What Warranty Terms Should Buyers Confirm?

Before ordering a CNC Spindle Motor, ask the supplier to explain the warranty in plain words. Do not rely on a short line such as “one-year warranty.” The details matter when a real problem happens.

Zhong Hua Jiang states a 12-month factory warranty for spindle motors, matched VFDs, and original accessories. Its support also covers defective parts caused by manufacturing quality, plus technical consultation after the warranty period.

What Technical Support Should a Reliable Manufacturer Provide?

Good support starts before installation. Many spindle problems come from wrong wiring, wrong VFD settings, poor cooling, or unsuitable tool selection. A reliable manufacturer should help buyers prevent these issues early.

For a CNC Spindle Motor package, technical support should include:

• Installation guidance: Buyers need clear wiring steps, mounting advice, and cooling instructions. This helps avoid early damage. It also helps new users start faster.

• VFD parameter setting support: The supplier should provide frequency, current, voltage, and speed settings. If the VFD is pre-programmed, ask for the saved values too. This makes later troubleshooting easier.

• Fault diagnosis: Support should cover noise, vibration, overheating, weak torque, and startup errors. Photos and short videos can help engineers respond faster. This saves time for workshops.

• Bearing replacement guidance: Bearings may need service after long use. A good supplier should provide tutorials or service documents. This is useful for distributors and OEM machine builders.

• Online consultation: Email, video call, and chat support are practical for global buyers. It helps when shipping parts back is slow or costly.

What Documents and Logistics Details Should Buyers Request?

Documentation is part of product quality. A CNC Spindle Motor should not arrive as a bare motor and a guesswork manual. Buyers need records to install it, check it, and support their own customers.

Ask for product manuals, wiring diagrams, VFD setup instructions, runout inspection data, dynamic balancing information, and electrical test details. If the supplier can provide factory test records, keep them for future maintenance and warranty claims.

After-sales logistics also matters. Standard spindle kits from Zhong Hua Jiang are listed at 3–7 working days, while customized or large batch orders take 10–20 days. Global tracked shipping and damaged-goods handling are also noted in its service information.

For distributors, this part is even more important. They need stable lead times, repeatable documents, and clear service rules. Their customers will not wait while the supplier tries to explain missing information.

Conclusion

Choosing a CNC Spindle Motor is not only about power or price.

Buyers should check bearings, runout, VFD matching, warranty, documents, and support before ordering.

A reliable spindle should run smoothly, match the right inverter, and stay stable under real cutting loads.

For air-cooled or water-cooled CNC Spindle Motor selection, matched VFD kits, or OEM/ODM needs, contact Zhong Hua Jiang for technical guidance.

FAQ

Q: What Is the Most Important Factor When Choosing a CNC Spindle Motor Manufacturer?

A: Check precision, bearing quality, VFD compatibility, warranty, and after-sales support.

Q: What Is a Good Runout Value for a CNC Spindle Motor?

A: Lower is better; ≤0.005 mm helps precision cutting.

Q: Do I Need a Matched VFD for My CNC Spindle Motor?

A: Yes. It improves safety, speed control, torque, and installation.

Q: Should I Choose an Air-Cooled or Water-Cooled CNC Spindle Motor?

A: Air-cooled is simpler; water-cooled is quieter for long runs.

Q: What Warranty Should a CNC Spindle Motor Have?

A: Look for 12-month coverage, support, and replacement policies.

Q: Can One CNC Spindle Motor Cut Wood, Acrylic, PCB, and Aluminum?

A: Yes, if power, speed, collet, cooling, tooling, and VFD setup match.
