1610 Easy Assemble CNC Router Machine Milling Machine Aluminum Profiles GRBL Control

  • Zhong Hua Jiang

Availability:
Quantity:

Zhong Hua Jiang Spindle Motor

“Zhong Hua Jiang” Brand story


How we started?

Huajiang was founded in 2000,starting in the production of CNC engraving spindle motor,then expanded production to VFD(Variable Frequency Drive) and engraving machines 3018,3020,3040,6040.

To explore and develop more market,we established Brand”Zhong Hua Jiang” on 2018.


What makes us proud ?

We have registered patent for our series of air cooling spindle motor .The patent No:200730184245.5.

We have 20 years manufacturing experience in this field.

We have been exporting our products to all over the world including well-known company in USA and Germany.




Specification of 1610 CNC Router Machine

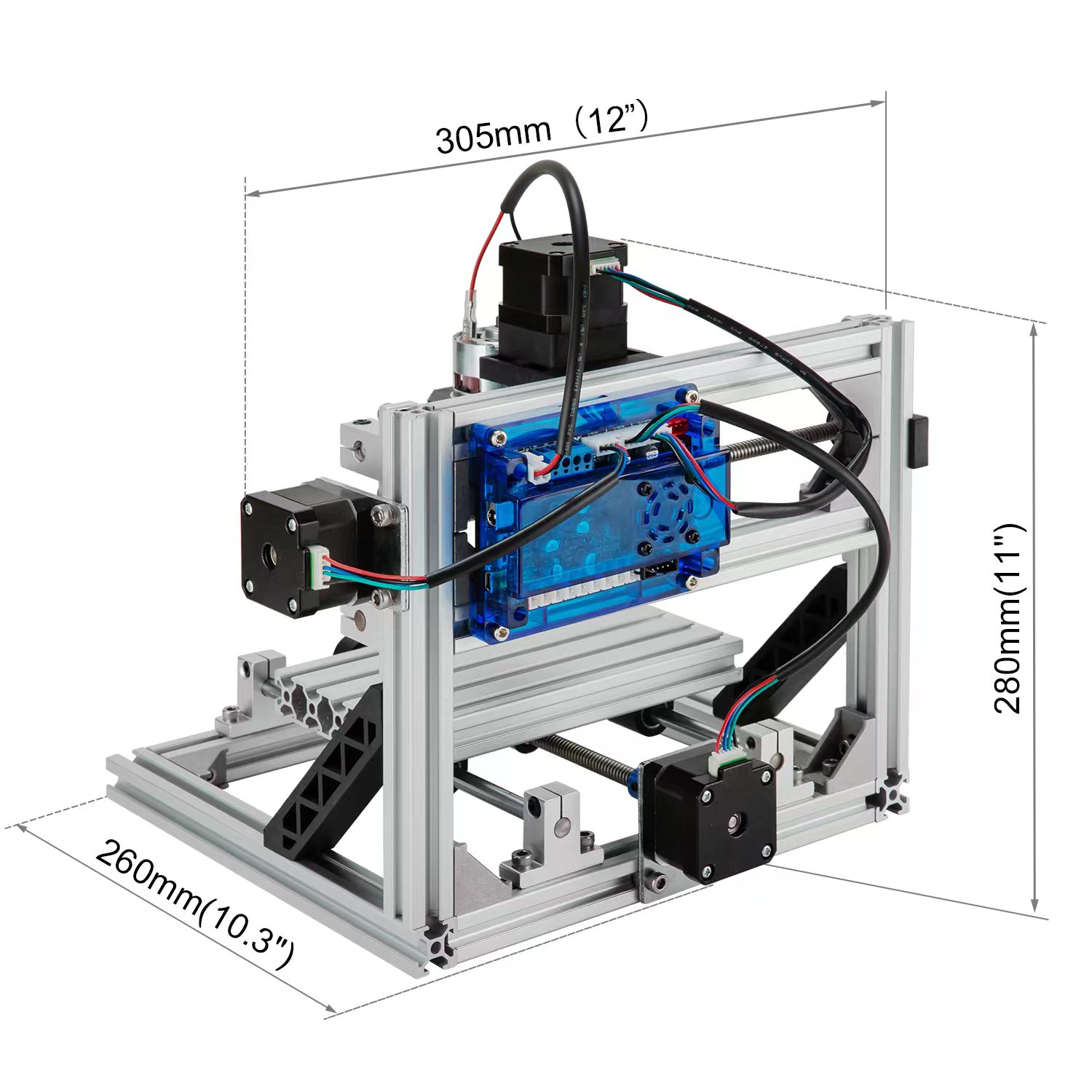

External dimension of 30.5x28x26cm (12"x11"x10.3")

Working Travel: 16(X)x10(Y)x4(Z)cm (6.3"x3.9"x1.6")

Spindle: 775 motor, 12V~24V, 10000 RPM;

Rated power: 60W; Maximum power: 120W

Step Motor: 1.5A, 2.2N torque

Drill Bits: Tip 0.1 mm, Diameter 3.175 mm 15 degrees(5pcs), 30 degrees(5pcs)

Supported OS: Windows XP, Windows 7 32/64 bits, Windows 8, Windows 10, Linux, MAC OS

Software: Grbl control(Candle)

Power Supply: 24V/5A





KEY FEATURE of 1610 CNC Router Machine

  • 【PREMIUM QUALITY】- With the external dimension of 30.5x28x26cm (12"x11"x10.3"), frames and fixed parts are made of 2020 aluminum profiles & black injection molding material. Working Travel: 16(X)x10(Y)x4(Z)cm (6.3"x3.9"x1.6").

  • 【EASY OF ASSEMBLE】- We offer pre-assembled parts and easy assembly taking less than 30 minutes out of the box.

  • 【UPDATED OPEN SOURCE】- Based on open-source Grbl v1.1,it has stepped up to more powerful but silent drivers with added life and performance along with added Optocouplers to protect your mainboard from hard stops without risk of damage and eliminate signal noise for more consistent projects and longevity.

  • 【WIDE APPLICATION】-Capable of carving and cutting different materials right out of the box, such as plywood, MDF, PCB, acrylic, nylon, carbon fiber, leather, graphite blocks, inlays in wood, plexiglass, vinyl, brass, and other soft metals.

  • 【WARRANTY ASSURANCE】-We have 20 years manufacturing experience in this field, any question or problem , pls contact us ,we will get you satisfied and get all problems resolved.




Product Description


微信图片_20220707134611


X and Y Axis parts pre-assembled】

This mostly pre-assembled desktop CNC machine gets you up and running in 30 minutes instead of hours, making it no challenge for beginners. A perfect gift for someone who would like to get into CNC.




微信图片_20220427160614



Powerful Motor

There are three stepper motors on three axes for smooth movement. The 775 DC(12-24V)24V spindle motor on the Z-axis can reach the speed of 10,000r/min.




微信图片_20220512134907


【Controller

Based on open-source Grbl v1.1 the PROVer has stepped up to more powerful but silent drivers with added life and performance along with added Optocouplers to protect your mainboard from hard stops without risk of damage and eliminate signal noise for more consistent projects and longevity.




微信图片_20220624153017

Effective engraving area】

The effective engraving area of this engraving machine is 6.3(X) x 3.9(Y) x 1.8(Z) inches.




微信图片_20220630145545



Wide application

Kinds of drilling and engraving materials , such as plastics, soft aluminum,brass, acrylics, PVC, PCB, wood,plywood, nylon.





Package list of 1610 CNC Router Machine

微信图片_20220707134611


1 x 1610 X axis&Y Axis (pre-assembled)

1 x Nut Accessories Box

4 x CNC Clamps

10 x Engraving Bits

1 x Assembly Instruction leaflet






What makes our product Unique?

Easy assembly

This package is with fully additional accessories, offline module, limit switches, emergency stop button, Z probe, etc

Professional and close technical support

We have 20 years manufacturing experience in this field




微信图片_20211222093746
