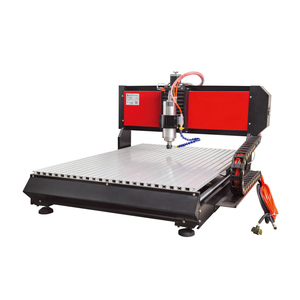

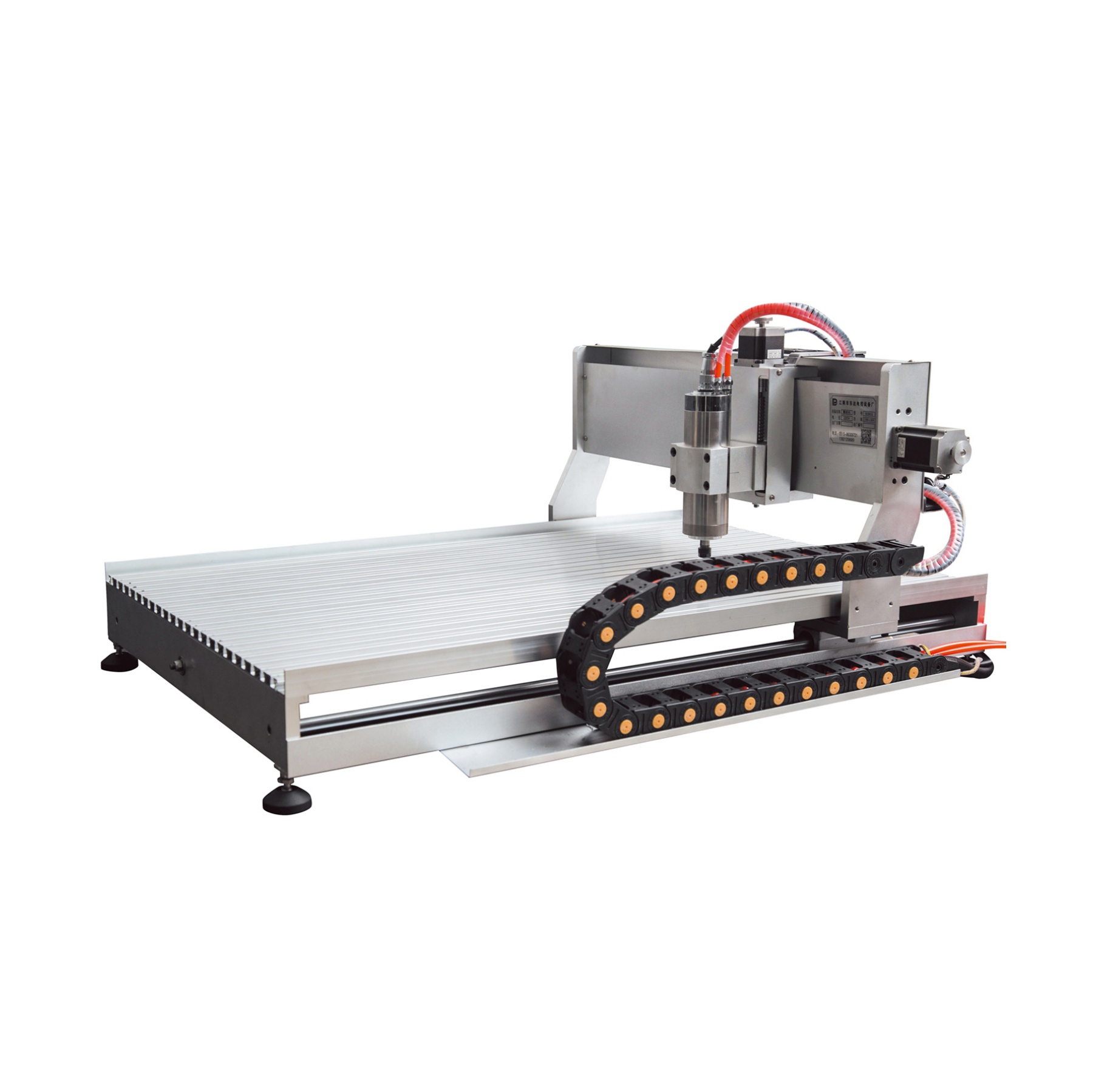

Zhong Hua Jiang 3 Axis 6090 Aluminum Structure Desktop CNC Router Machine for Wood Carving Metal Cutting

Share to:

Zhong Hua Jiang 3 Axis 6090 Aluminum Structure Desktop CNC Router Machine for Wood Carving Metal Cutting

The 6090 CNC Router Machine offers high precision and stability, perfect for engraving wood, acrylic, PCB, and soft metals with a powerful spindle motor.

Model:
6090
Brand:
Zhong Hua Jiang
Voltage:
220V
Package Dimensions:
1300*970*820
Weight:
240KG

Availability:

Quantity:



Inquire Add to Basket

Product Description

微信图片_20210909091707

01 Product Specification

0604P图03-1

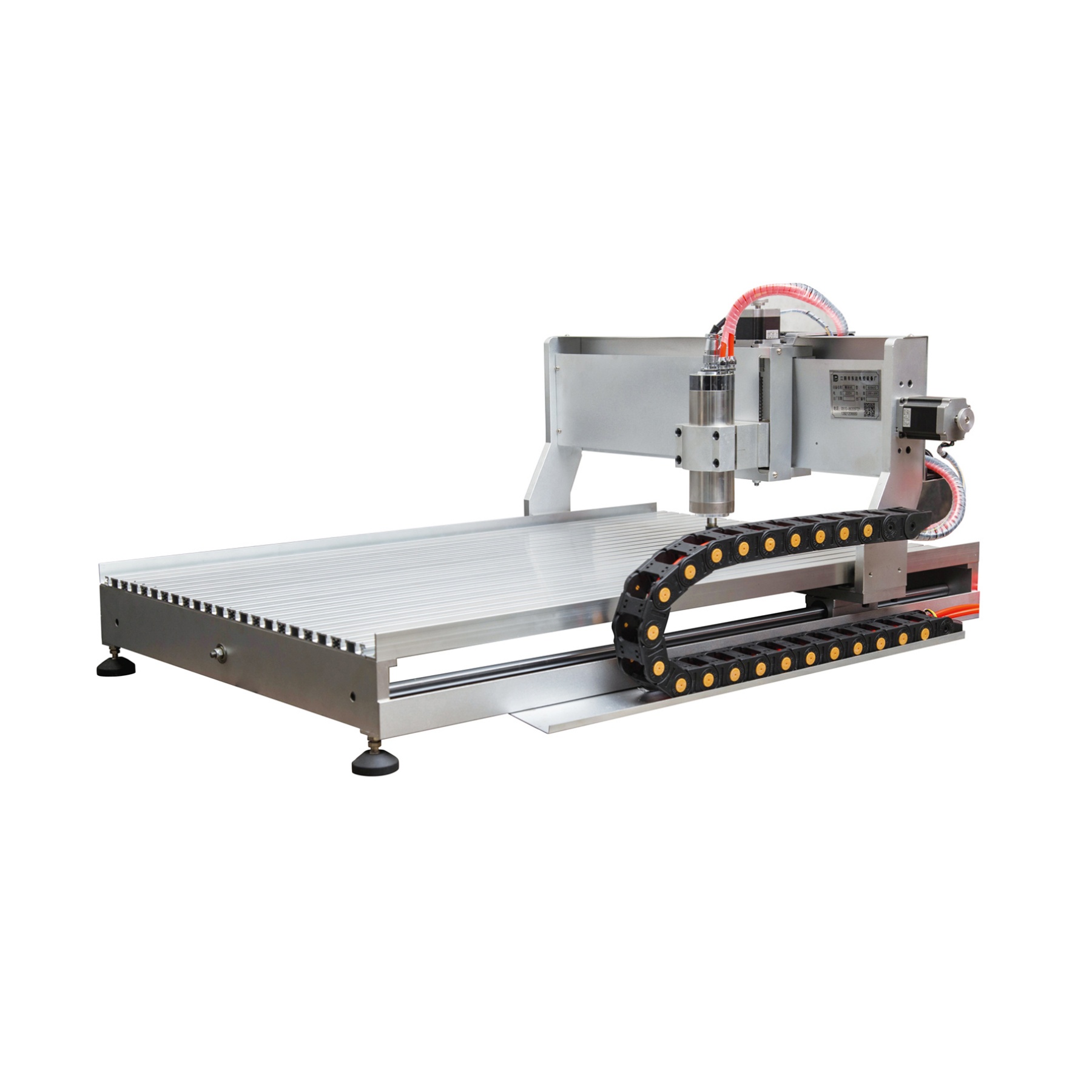

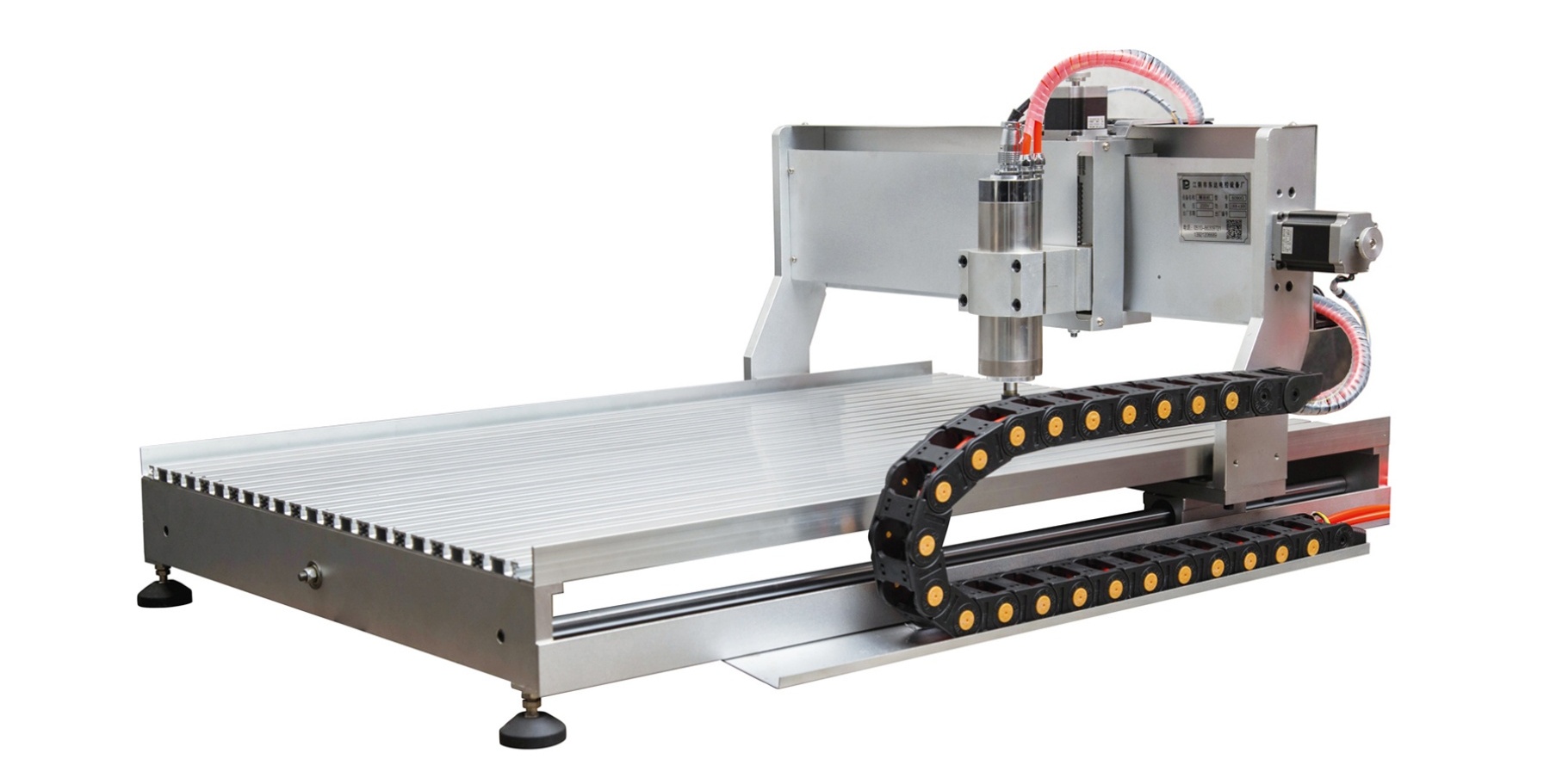

6090 CNC Router Machine

Dimension: 1200780580MM
Working Travel: 600900125MM
Working Height: ≤125MM
Machine Material: 6061-T6 Aluminum
Screw: Import 1605 Ball screw
Guide: Round Guide
Spindle Power: 0.8KW, 1.5KW, 2.2KW
Spindle Driver: VFD
Spindle Speed: 0-24000rpm/min
Spindle Cooling: Water cooling
Spindle Chuck: ER11-6mm/ER11-3.175mm/ER20-6mm
Stepper: 57BYH76
Stepper Driver: 8 division driver
Support Code: Standard G code、nc、tab、mmg、Plt、eng、def etc
Control Software: Mach3/WEIHONG/USB
Communication Port: LPT/PCI/USB
Voltage: AC220V/110VUNIVERSAL
Compatible softwares: Mach3/TYPE3/MasterCAM/CDR/ARTCAM/CAD/CAM/WENTAI/JINDIAO etc

0604P图05-1

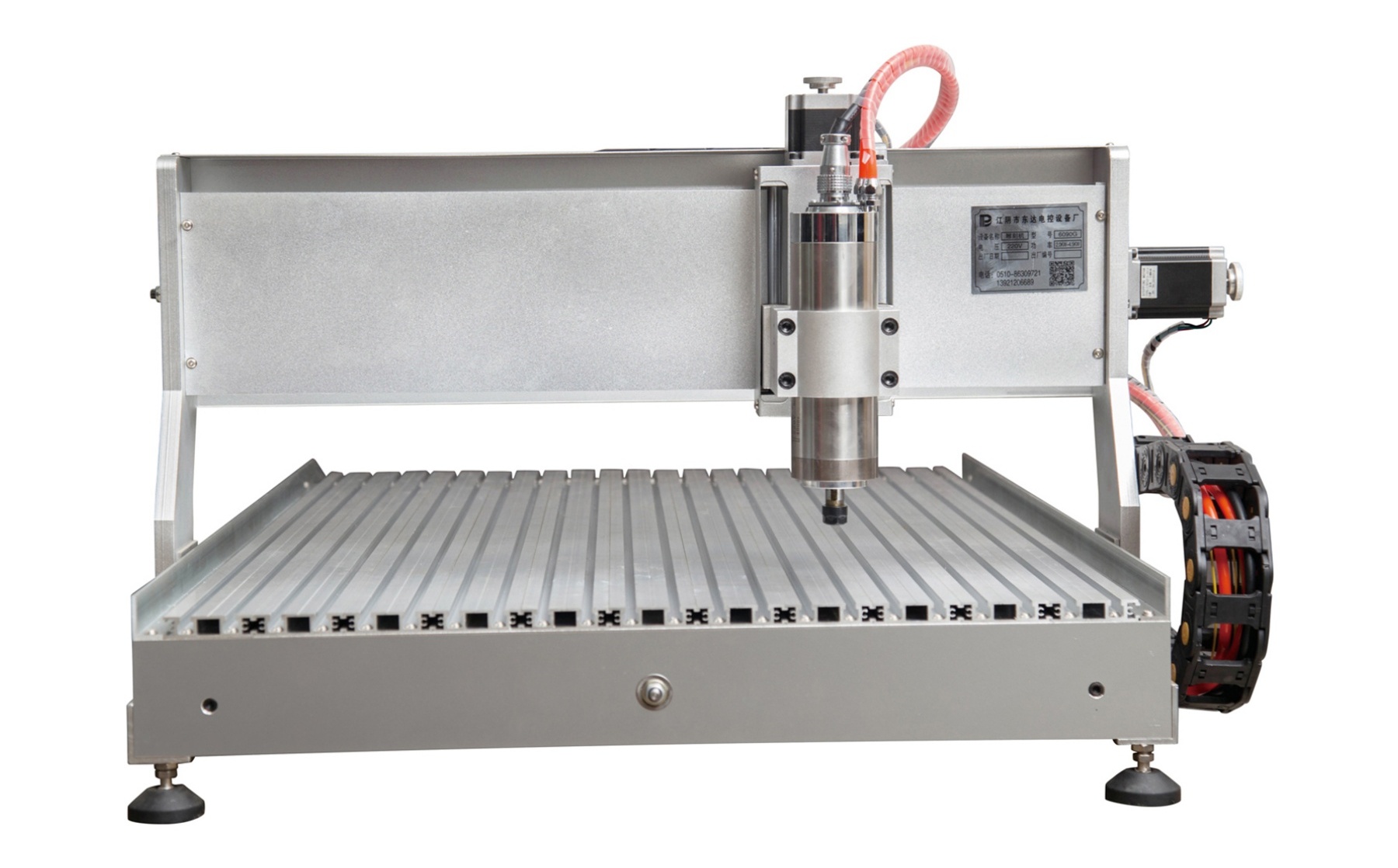

02 Product Key Feature

0604P图a-1

The Zhong Hua Jiang 6090G CNC Router Machine is a high-precision desktop CNC solution built for professionals, small workshops, and hobbyists looking for industrial-grade performance in a compact footprint. Designed with durability, precision, and versatility in mind, the 6090G series features a 6061-T6 aluminum alloy frame, ensuring lightweight rigidity and excellent resistance to deformation during long-term use.

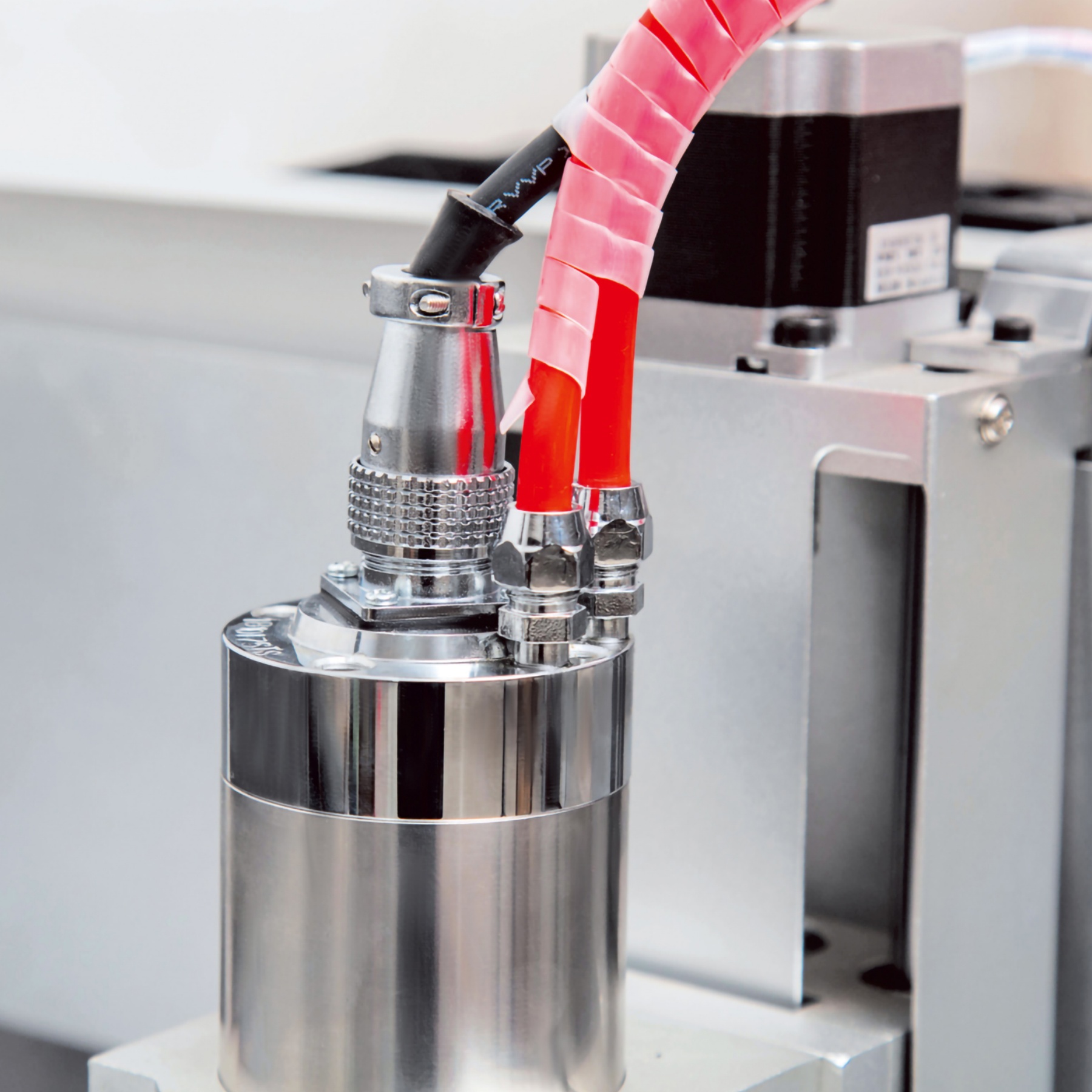

Available in three spindle power options — 800W, 1.5KW, and 2.2KW — the 6090G caters to a wide range of materials and cutting depths. Whether you’re engraving softwoods or cutting through aluminum and plastics, you’ll find a spindle configuration to meet your needs. All models come equipped with high-speed spindles (0–24000rpm) and water-cooling systems, keeping the motor at optimal temperatures for continuous operation.


The machine’s motion system uses imported 1605 ball screws for all axes, delivering exceptional accuracy and smooth movement.


Combined with round guide rails, it provides reliable travel and precision, with a working area of 600x900x125mm, capable of accommodating sizable workpieces up to 125mm in height.
For control, the 6090G supports multiple systems, including Mach3 and WEIHONG, and offers communication via LPT, PCI, or USB, allowing users to integrate the machine with a variety of software and control environments. It’s also compatible with popular design tools like TYPE3, MasterCAM, ARTCAM, CorelDRAW (CDR), CAD/CAM, Wentai, and Jindiao, making it a flexible choice for diverse design workflows.


The 6090G series uses 57BYH76 stepper motors paired with 8-division stepper drivers, ensuring stable motion control and accurate performance even at high speeds. With support for standard G-code, .nc, .plt, and other common file formats, this CNC router is plug-and-play ready for most engraving applications.


Whether you’re producing signs, jewelry, PCB boards, woodcarvings, or aluminum parts, the Zhong Hua Jiang 6090G CNC Router is engineered to deliver precision, reliability, and value.

03 Company File

04 Why Choose Us

04 Why choose us-1

05 Product Certificate

05 Product Certificate-1

06 Customer Feedback

Detail-10

07 FAQ

1. About Zhong Hua Jiang

Founded in 2000,we has over 20 years of experience in CNC engraving spindle motors and hasexpanded the product range to include Variable Frequency Drives (VFD) and engraving machines.

2. What are your main products?

Our company manufactures various models and specifications of spindle motors, all of which arecompatible with CNC machine tools produced by medium and large professional manufacturersboth domestically and internationally.Notably, the company's patented air-cooled spindle series has been especially well-received.
