How ATC Spindle Motors Maintain Tool Change Accuracy And Precision

Views: 0     Author: Site Editor     Publish Time: 2026-06-30      Origin: Site

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Can a CNC machine change tools in seconds and still cut with the same accuracy? That is the real challenge behind modern automatic tool changing. ATC Spindle Motors help CNC machines and CNC routers switch tools quickly without manual work. But speed alone is not enough—the tool must return to the right position every time. In this post, you’ll learn how mechanical design, precision bearings, cooling systems, control signals, and strong tool clamping work together to keep tool change accuracy and machining precision stable.



What Are ATC Spindle Motors?

Basic Definition of ATC Spindle Motors

ATC Spindle Motors are spindle motors built for Automatic Tool Change operations. They rotate the cutting tool, release it when needed, then lock the next tool into place through an automatic process. This lets a CNC machine move from cutting to drilling, engraving, trimming, or milling without an operator stopping production to change tools by hand. You will usually find them on CNC routers, CNC machining centers, woodworking machines, aluminum machining equipment, plastic processing lines, MDF cutting systems, and high-volume production lines. They are useful when one workpiece needs several tools during one cycle. They save time, reduce handling errors, and keep production moving more consistently.

How ATC Spindle Motors Differ from Standard CNC Spindle Motors

A standard CNC spindle motor normally needs manual tool replacement. It can work well for simple jobs, but it slows down production when frequent tool changes are required. ATC Spindle Motors are different because they work as part of a complete tool-changing system, not only as a rotating motor.

System Part

Role in ATC Operation

Tool magazine

Stores different cutting tools ready for automatic selection

Tool holder

Keeps each tool positioned securely during machining

Drawbar mechanism

Pulls and locks the tool holder into the spindle taper

Pneumatic release system

Opens the clamping system during tool change

Spindle orientation system

Stops the spindle at the correct angle for tool pickup

CNC control system

Coordinates speed, position, release, clamping, and safety signals

500W 0.5KW Spindle Speed Power Converter Air Cooled Spindle Motor Kit for CNC Router Engraving Machine

How Does the Automatic Tool Change Process Work?

ATC Spindle Motors follow a controlled sequence. It looks fast from outside, yet each move has a clear job. The spindle must stop, align, release, receive, clamp, verify, then restart. If one step is off, the next cut may lose accuracy.

Step-by-Step Tool Change Workflow

A tool change starts inside the CNC control system. It sends a command based on the machining program. The spindle then slows down, stops rotation, then moves into spindle orientation, also called quasi-stop, so the tool holder lines up correctly.

Step

What Happens

Why It Matters

1

CNC system sends the tool change command

It tells the spindle, tool changer, sensors, and magazine to start the same cycle. Good timing prevents tool change alarms.

2

Spindle stops, then performs quasi-stop

It must stop at the right angle. This helps the drive key meet the tool holder slot.

3

Drawbar releases the current tool holder

Air pressure opens the clamping system. The old tool can leave the spindle safely.

4

Tool magazine removes the old tool

The changer takes it back to its preset position. This keeps the tool library organized.

5

New tool enters the spindle

The tool holder seats into the taper. Clean contact supports low runout.

6

Drawbar clamps the tool holder

Strong clamping force locks it firmly. This prevents tool slip during cutting.

7

Sensors confirm tool status

Tool-in sensors check presence. Clamp sensors confirm safe locking.

8

Spindle accelerates to target RPM

It restarts under controlled speed. Smooth acceleration protects bearings, tool holders, and the workpiece.

Why Every Step Affects Tool Change Accuracy

A small error can create a visible defect. Poor clamping may let the tool move under load. Weak alignment may create tool misalignment, excessive runout, poor surface finish, dimensional errors, faster tool wear, or defective parts. This is why ATC Spindle Motors rely on both solid mechanics plus electronic control. The drawbar, tool holder, spindle taper, bearings, and rotor provide physical stability. The CNC controller, VFD, encoder feedback, and sensors manage timing, speed, position, and safety checks.



The Key Factors That Help ATC Spindle Motors Maintain Tool Change Accuracy

1. High-Precision Bearings Keep the Spindle Stable

Why Bearings Matter in ATC Spindle Motors

In ATC Spindle Motors, bearings do more than help the spindle spin. They support the rotating spindle shaft, keep it centered, and help it stay stable during high-speed cutting. When the machine changes tools, this stability helps the new tool return to a predictable cutting position instead of shifting slightly. For CNC routers, woodworking machines, and aluminum machining lines, this matters every day. A spindle may run for long shifts, change tools many times, then move from engraving to drilling or milling. If the bearing system is weak, vibration increases, the cutting edge moves off center, and the finished part may lose accuracy. Accuracy chain in a tool change cycle: Stable bearings → Low vibration → Low runout → Better tool seating → More accurate cutting

P4-Grade Precision Bearings and Low Runout

High-grade precision bearings are one reason quality ATC Spindle Motors can keep repeatable accuracy after many tool changes. P4-grade bearings, such as 7007C/P4 and 7005C/P4, are often used in high-speed spindle designs because they support smoother rotation, tighter control, and better resistance against cutting load. For example, the referenced Huajiang 3.2KW BT30 water-cooled ATC spindle uses a bearing set of 2×7007C/P4 + 1×7005C/P4, while Huajiang’s precision-focused ATC spindle design targets low vibration and runout values around ±0.01mm, depending on model, setup, tool holder quality, and operating conditions.

Bearing Factor

What It Controls

Impact on Tool Change Accuracy

Bearing grade

Rotation smoothness and shaft support

Higher-grade bearings help the spindle hold a more stable centerline during tool changes.

Bearing layout

Load capacity and rigidity

A stronger layout helps the tool stay aligned during cutting after it is clamped.

Low radial runout

Tool center accuracy

Lower runout helps reduce uneven cutting, tool marks, and size errors.

Vibration control

Cutting stability

Less vibration means better surface finish and less stress on the tool holder.

Customer Benefit

For buyers, bearing quality directly affects output quality. Better bearings help the spindle produce smoother surfaces, more accurate part sizes, and more stable cutting across long production runs. This is especially important when one CNC machine handles wood, MDF, plastic, or aluminum parts in the same shift. A strong bearing system also helps extend tool life. When the tool runs closer to center, the cutting edge wears more evenly. It reduces broken tools, rework, and scrap parts, which matters more than spindle price when production volume is high. When comparing ATC Spindle Motors, we usually suggest checking bearing grade, runout data, cooling method, and tool holder match together. A P4 bearing system can perform well, but it still needs proper installation, clean taper contact, balanced tools, and correct spindle speed. This is where a precision spindle starts to show its real value in daily CNC production.



2. Rigid Rotor Design Reduces Vibration and Positional Drift

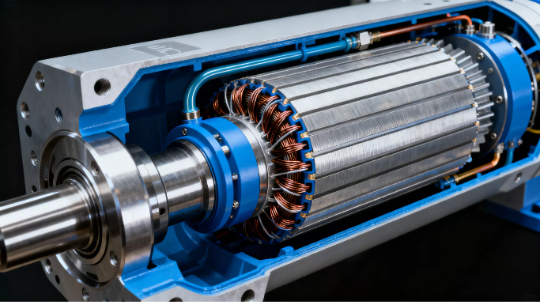

What Is a Rigid Rotor Design?

The rotor is the rotating core inside the spindle motor. In ATC Spindle Motors, it carries speed, torque, cutting load, plus every force created during machining. If it bends, shakes, or loses balance, the spindle axis can move slightly. That small movement may not look serious, but it can affect tool position after each automatic tool change. A rigid spindle structure helps keep the rotating shaft straight during high-speed cutting. It resists bending under load, reduces unwanted movement, and keeps the tool holder seated more consistently. This matters most during engraving, drilling, milling, and trimming, where even small tool position changes can leave marks or create size errors.

Dynamic Balancing for High-Speed Operation

Dynamic balancing means the rotor is tested and corrected while it rotates. The goal is simple: make the rotating mass as even as possible, so it does not shake at high RPM. In a high-speed ATC spindle, this process helps reduce vibration before it reaches the bearings, tool holder, cutting tool, or workpiece.

Rotor Design Factor

What It Controls

Impact on Tool Change Precision

Rotor rigidity

Shaft bending under cutting load

It helps the spindle axis stay stable after each tool change.

Dynamic balancing

Uneven rotating mass

It lowers vibration during high-speed operation.

Spindle axis stability

Tool center position

It helps each new tool stay aligned after clamping.

Vibration control

Tool movement during cutting

It reduces tool marks, chatter, and poor surface finish.

Customer Benefits

  • Lower vibration levels: A rigid, dynamically balanced rotor helps the spindle run smoothly at high RPM. It reduces chatter during cutting, especially when tools move across wood grain, aluminum edges, or plastic sheets. Less vibration also protects bearings, tool holders, and the spindle taper from extra stress.

  • Improved repeatability: Each tool change depends on stable alignment. When the rotor holds a steady centerline, the new tool returns closer to its expected cutting position. This helps shops maintain repeatable results across drilling, engraving, cutting, and milling steps.

  • Reduced tool marks on the workpiece: Vibration often shows up as lines, waves, rough edges, or uneven surfaces. A balanced rotor helps the cutting edge stay steady, so the finish looks cleaner. This is important for visible parts such as cabinet doors, aluminum panels, signage, and decorative components.

  • More reliable machining quality: Stable rotor behavior helps operators trust the machine during long runs. It reduces rework, scrap, tool wear, and unexpected stoppages. For production teams, this means more predictable output, better part quality, and fewer accuracy problems after repeated automatic tool changes.

Square ER25 4KW 4 Ceramic Bearings 220V Air Cooled Spindle Motor for CNC Router Engraving Machine

3. Precision Tool Holders Ensure Accurate Tool Positioning

The Role of Tool Holders in ATC Spindle Motors

In ATC Spindle Motors, the tool holder is the bridge between the spindle and the cutting tool. It holds the tool, seats inside the spindle taper, then carries cutting force during machining. If it does not seat cleanly, the spindle may still rotate well, yet the tool can cut off-center. This matters during automatic tool change because the machine depends on repeatable seating. The spindle releases one tool, accepts another, then expects the new tool to return to the same centerline. A good tool holder helps make this repeatable, even after many tool changes per shift. Common tool interfaces include ISO30, BT30, BT40, HSK, ER32, ER25, and ER20. In many CNC router setups, ISO30 and ER32 appear often because they balance speed, clamping force, and practical tool availability. BT30 or BT40 usually fit heavier machining needs, while HSK often suits high-speed precision work.

How High-Precision Tool Holders Improve Accuracy

A high-precision tool holder keeps the cutting tool centered. It reduces radial runout, improves taper contact, and lowers the chance of tool slippage under load. In real production, this helps the machine hold a cleaner edge, a steadier depth, and a more consistent part size. Proper taper alignment is also important. The tool holder taper must match the spindle taper closely, so the tool sits in the same position after every automatic tool change. When taper contact is poor, the tool may tilt slightly, causing vibration, poor finish, or uneven tool wear.

Tool Holder Factor

What It Affects

Practical Result

Taper accuracy

Seating position inside the spindle

Better repeatability after each tool change

Clamping surface quality

Grip between holder and spindle

Lower risk of slipping during cutting

Runout control

Tool centerline accuracy

Cleaner surface finish and more accurate parts

Interface match

Compatibility between spindle and holder

Fewer tool change errors and smoother operation

Balance quality

Stability at high RPM

Less vibration during engraving, milling, or trimming

Tool Holder Compatibility Questions Customers Often Ask

  • Which tool holder is best for woodworking CNC routers? ISO30 is common for many woodworking CNC routers because it works well for routing, drilling, trimming, and engraving. It offers fast automatic tool change plus enough rigidity for wood, MDF, acrylic, and light aluminum work. For high-volume furniture or panel processing, it is often a practical choice.

  • Is ISO30 better for light or medium CNC routing? Yes, ISO30 is usually a good fit for light to medium CNC routing. It keeps the spindle compact, supports fast tool changes, and works well at higher RPM. For heavy roughing or deeper aluminum cutting, buyers may need a stronger interface.

  • When should I choose BT30 or BT40? BT30 suits stronger cutting loads, especially when machining aluminum or doing heavier milling. BT40 offers more rigidity, but it also needs a larger machine structure. If the machine frame is not strong enough, the benefit may be limited.

  • Is HSK better for high-speed machining? HSK can perform very well at high speed because it supports strong taper and face contact. It helps reduce axial movement and improves tool stability. It is often selected for precision machining where speed, balance, and repeatability matter.

  • How does ER32 affect clamping stability? ER32 uses a collet system to grip cutting tools firmly. It gives good flexibility because one spindle can work with many tool diameters. For ATC Spindle Motors, ER32 can support stable clamping when the collet, nut, and tool shank are clean, matched, and properly tightened.



FAQ

Q: What makes ATC Spindle Motors accurate during tool changes?

A: Precision bearings, rigid tool holders, drawbar force, spindle orientation, sensors, and stable control systems keep each tool aligned.

Q: What is spindle orientation in an ATC spindle motor?

A: It stops the spindle at a fixed angle so the holder keyway matches the drive key.

Q: Why does low runout matter?

A: It keeps the tool centered, improving finish, accuracy, and tool life.

Q: Which cooling method is better?

A: Air cooling is simpler; water cooling offers better thermal stability.

Q: How does the drawbar help?

A: It clamps the holder firmly, preventing slippage and drift.

Q: What tool holders are common?

A: ISO30, BT30, BT40, HSK, ER20, ER25, and ER32.

Q: Can ATC Spindle Motors improve efficiency?

A: Yes. They reduce manual tool changes and downtime.

Q: How often should maintenance be done?

A: Check holders, tapers, cooling, and runout based on workload.



Conclusion

ATC Spindle Motors protect accuracy through the whole spindle system.

Precision bearings, rigid rotors, accurate tool holders, strong drawbar force, and spindle orientation all matter.

VFD control, cooling, sensors, and clean tool interfaces keep each tool change stable.

For faster production and fewer tool change errors, choose the right spindle carefully.

Contact Huajiang to select the right ATC Spindle Motor for your CNC machine.
