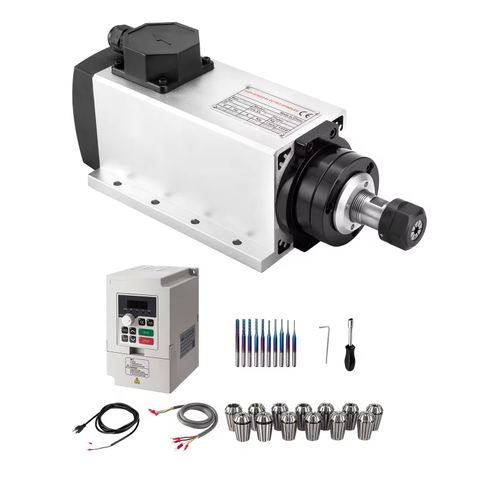

Can A CNC Spindle Motor Be Repaired? Common Faults And Solutions

Introduction

A sudden halt in your production line is a nightmare for any machinist. More often than not, the culprit behind this downtime is a failing CNC Spindle Motor. It serves as the heart of your milling, routing, or engraving machine. When it stops performing, your entire shop grindingly halts. This brings us to a critical, budget-defining question: Can you actually repair a CNC Spindle Motor, or must you buy a costly replacement?

The short answer is yes. Most common faults, from screeching bearings to electrical short circuits, are entirely repairable. Opting for a professional rebuild can save you up to 50% or even 70% of the cost of buying a new unit. However, successfully executing these repairs requires a deep understanding of what went wrong, how to diagnose the issue, and when it makes financial sense to intervene. In this extensive guide, we will break down the exact steps to identify faults, implement solutions, and prolong the life of your high-speed machining setup.

Can Your CNC Spindle Motor Be Repaired?

Before you spend thousands of dollars on a brand-new unit, you must evaluate the feasibility of rebuilding your current hardware. Precision machinery can almost always be restored to factory specifications if you approach the problem systematically.

Cost-Benefit Analysis of Spindle Repairs

A high-quality CNC Spindle Motor represents a significant capital investment. Throwing away a rebuildable unit is a major waste of resources.

• The 50% Rule: Industry experts generally follow a simple rule of thumb. If the estimated repair cost is under 50% of a new spindle's price, repair is the most logical route.

• Lead Time Advantages: Ordering a specialized new motor can sometimes take weeks or even months due to supply chain backlogs. A certified local repair shop can often rebuild your motor in a fraction of that time, dramatically reducing your workshop's costly operational downtime.

• Component Salvageability: In most failure scenarios, only a few internal components suffer wear. The heavy steel housing, the core shaft, and the complex stator windings are often perfectly intact. Swapping out worn sub-parts allows you to get maximum utility out of your initial investment.

When to Choose Rebuilding Over Buying New

Not all damage is created equal. Understanding the dividing line between a simple repair and a complete replacement is essential for your bottom line.

• Severe Structural Damage: If your machine experienced a catastrophic crash that bent the main rotor shaft beyond repair, a replacement is likely required. Re-machining a bent shaft to the required sub-micron tolerances is incredibly difficult and often costs more than a new unit.

• Extensive Stator Meltdown: A minor electrical short is fixable through rewinding. However, if the thermal overload was so severe that it melted the internal housing or warped the core laminations, structural integrity is lost.

• Obsolete Models: If you run an older machine, the original manufacturer might no longer produce replacement units. In this scenario, rebuilding is not just the cheaper option; it is your only option to keep the machine running.

Bearing Failure: The Most Common CNC Spindle Motor Threat

If your machine is making a high-pitched whining noise or running excessively hot, you are likely dealing with bearing failure. Bearings take the brunt of the physical load during high-speed cutting. Over time, they inevitably degrade under the constant stress of rotational force and contamination.

Diagnostic Signs of Worn Bearings

You can identify failing bearings before they seize completely and destroy other internal components.

• Audible Whining or Screeching: A healthy CNC Spindle Motor operates with a smooth, hum-like sound. If you hear a harsh metallic grinding, clicking, or high-amplitude vibration, the bearing raceways have chipped or worn down.

• Excessive Heat Generation: Touch the spindle housing after a short run. If it feels burning hot to the touch, the bearings are generating intense friction. This is usually caused by a lack of lubrication or over-tightened preload settings.

• Increased Spindle Runout: Worn bearings allow the shaft to wiggle microscopic distances. This manifests as poor surface finish on your workpieces, broken cutting tools, and dimensional inaccuracies.

The Step-by-Step Bearing Replacement Process

Replacing precision spindle bearings is not a job for a standard hammer and wrench. It requires a clean environment and specialized tools to maintain sub-micron accuracy.

1. Clean Dismantling: Clean the exterior of the motor thoroughly before disassembly to prevent dirt from entering the internal housing. Use a hydraulic press to gently slide the rotor shaft assembly out of the stator body.

2. Measuring Preload and Spacers: Note the exact orientation of the existing angular contact bearings. They are matched pairs. You must measure the precision spacer rings carefully; they control the preload force on the new bearings.

3. Installing the New Bearings: Never hit new bearings with a hammer. Instead, use an induction heater to expand the inner ring of the new bearings slightly. They will then slide onto the cool rotor shaft smoothly. Once they cool down, they will shrink to a perfect, secure fit.

4. Lubrication Application: Apply the exact recommended grease volume using a clean syringe. Too little grease causes premature wear; too much grease blocks heat dissipation and causes the bearings to overheat rapidly during high-speed runs.

Electrical Faults: Diagnosing Stator and Insulation Issues

Even the strongest mechanical parts cannot work without stable electrical power. Your CNC Spindle Motor relies on high-frequency electrical currents flowing through copper coils inside the stator. If these coils break down, your motor will stall, trigger drive errors, or trip your facility's circuit breakers.

Identifying Electrical Short Circuits and Open Grounds

When an electrical fault occurs, the variable frequency drive (VFD) controlling your spindle will usually display an error code like "Overcurrent" or "Ground Fault." You can diagnose these issues using basic testing equipment.

• Insulation Resistance Testing (Megger Test): A standard multimeter is not enough to find microscopic cracks in wire insulation. We use a Megohmmeter to apply high voltage (usually 500V or 1000V) between the motor windings and the ground frame. If the resistance is below 100 Megohms, your insulation is failing, allowing current to leak.

• Phase-to-Phase Resistance Matching: Use a digital multimeter to measure the resistance across all three power terminals (U to V, V to W, W to U). The values must be nearly identical (within 1% to 2% of each other). A significant difference indicates a shorted coil or a broken wire within the stator.

• Visual Inspection for Burn Marks: Open the terminal box and inspect the stator winding ends. If you see black charring, melted copper, or smell a distinct acrid, burnt-plastic odor, the coils have suffered major thermal damage.

Demystifying the Motor Rewinding Process

If the stator is shorted, you do not need to scrap the motor. You can perform a professional stator rewind to restore its electrical capacity.

1. Stripping the Old Coils: The technician places the damaged stator inside a controlled burnout oven. This thermal process vaporizes the old insulation varnish, allowing the old copper wire to be pulled out easily without damaging the surrounding laminated steel core.

2. Rewinding the Copper Coils: Using precision winding machines, the operator recreates the exact coil configurations, turn counts, and wire gauge matches of the original design.

3. Insulation Insertion: Slide high-temperature insulation paper into the stator slots. This acts as a physical barrier between the copper coils and the metal core.

4. Varnish Dipping and Baking: Once the new coils are in place, dip the entire assembly into high-grade insulating varnish. Bake it in an oven to cure. This process seals out moisture, stabilizes the wires physically, and enhances heat transfer.

Cooling System Failures and Thermal Overload Damage

Heat is the primary enemy of any CNC Spindle Motor. High-speed operations generate immense friction and electrical heat. If your cooling system fails, internal temperatures will soar in seconds, destroying both your bearings and your electrical insulation.

Water-Cooling Clogs vs. Air-Cooling Fan Failures

Depending on your machine's design, your spindle is cooled either by forced air or by liquid circulation. Each design has its own unique failure points that require specific repair solutions.

• Liquid-Cooled Spindles (Water-Cooled): These systems use internal water channels wrapped around the stator housing. Over time, mineral deposits, algae, or rust can clog these narrow paths. This stops water flow and causes rapid overheating.

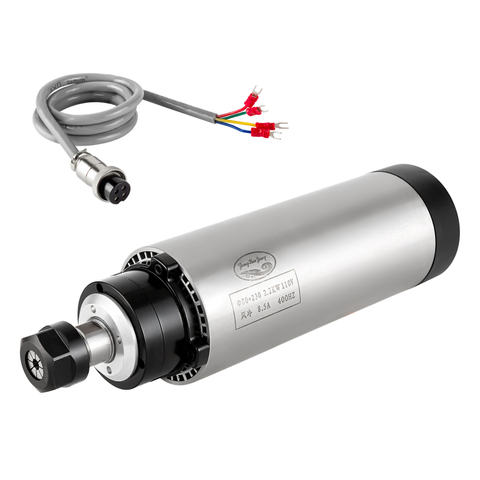

• Air-Cooled Spindles: These models rely on an integrated shaft-driven fan or an independent electric fan to blow air over cooling fins. Dust, oil mist, and metal chips can pack into these fins, acting as an insulating blanket that traps heat inside.

• The Condensation Risk: In water-cooled systems, running coolant that is too cold can cause condensation inside the motor housing. This moisture can drip directly onto the electrical coils, causing an immediate short circuit.

Restoring Thermally Damaged Components

If your cooling system failed and caused an overheat event, you must follow a methodical restoration process.

1. Clearing Clogged Channels: For water-cooled spindles, flush the internal channels with a mild descaling solution to dissolve mineral deposits. Ensure you flush with clean water afterward to stop any chemical corrosion of the aluminum cooling jacket.

2. Cleaning and Degreasing Air Fins: Blow out air channels with dry compressed air. Use a mild degreasing spray to dissolve oily residues that attract dust and debris.

3. Insulation Verification: Always run a Megger insulation test after any major overheating event. This confirms whether the heat permanently damaged the winding insulation.

4. Coolant System Upgrades: To prevent future issues, we recommend installing a flow-rate sensor and an inline filter. These devices will automatically stop your CNC program if coolant stops moving, protecting the spindle from thermal damage.

Mechanical Misalignment, Shaft Runout, and Balance Restoration

A CNC Spindle Motor operates at incredibly high speeds, sometimes exceeding 24,000 RPM. At these speeds, even a microscopic weight imbalance or physical misalignment will create massive centrifugal forces. This leads to heavy vibration, poor machining accuracy, and premature component destruction.

The Mechanics of Shaft Runout and Precision Tolerances

Shaft runout refers to how much the rotor shaft deviates from its perfect central axis when spinning.

• Measuring Runout: Place a high-precision dial indicator (with 0.001mm increments) against the inside of the spindle taper. Rotate the shaft by hand. Any movement on the dial represents runout. For quality milling, runout should be under 0.005mm (5 microns).

• Causes of Runout: Runout is usually caused by tool holder crashes, uneven wear on the taper, or a slightly bent shaft.

• Taper Grinding Repair: If the internal taper is damaged or worn, you do not need to replace the shaft. A technician can grind the taper while the spindle is mounted in its own bearings. This restores perfect concentricity relative to the rotation axis.

Dynamic Balancing Techniques for High-Speed Spindles

Simply static-balancing a spindle is not enough for high-speed operation. You must dynamically balance it while it rotates at its operating speed.

1. Vibration Analysis: Attach accelerometers to the spindle housing. Spin the motor up to speed and analyze the vibration waves using a specialized software tool.

2. Identifying the Heavy Spot: The software calculates the exact angle and weight of the imbalance.

3. Weight Adjustment: Technicians balance the shaft by either removing microscopic amounts of material (by drilling tiny holes in specific non-structural zones) or by adding tiny, precise set-screws into threaded balancing rings.

4. Verification Runs: Repeat the process until the vibration levels drop into acceptable ranges (typically G1 or G0.4 balance grades). This smooth operation ensures your cutting tools slice cleanly without vibrating.

Preventative Maintenance Strategies to Eliminate Future Repairs

The most cost-effective repair is the one you never have to make. By implementing a strict preventative maintenance program, you can significantly extend the lifespan of your CNC Spindle Motor and avoid unexpected production shutdowns.

Daily and Weekly Inspection Checklists

Do not wait for your spindle to fail before you pay attention to it. A few simple checks each day can save you thousands of dollars in emergency repairs.

• Listen During Start-up: Spin the spindle at low speed each morning. Listen closely for any clicking, whistling, or vibrating sounds.

• Check the Coolant Level: For liquid-cooled systems, verify that the chiller is filled with clean, uncontaminated coolant and that the pump pressure is within normal ranges.

• Keep the Taper Clean: Wipe the internal spindle taper with a clean, lint-free cloth and a light rust-preventative oil daily. This ensures your tool holders sit perfectly flush, preventing runout.

• Monitor Air Pressure: For pneumatic-seal spindles, check that the air filtration and drying system is working. If wet air enters the spindle, it will destroy the bearings within weeks.

Optimal Operating Parameters to Extend Spindle Lifespan

How you run your machine directly affects how long its components will last. Avoid pushing your hardware to its absolute limits for extended periods.

1. Spindle Warm-up Cycle: Never ramp a cold spindle up to 24,000 RPM instantly. Run a brief 10-minute warm-up program that gradually increases speed. This allows the grease to warm up and distribute evenly through the bearings, preventing thermal shock.

2. Avoid Maximum Load Continuous Runs: While your motor might be rated for 15kW, running it at 100% load continuously will generate extreme heat. Aim to keep continuous operations below 80% of maximum rated capacity.

3. Proper Tool Balancing: Ensure your tool holders and cutting tools are rated for the speeds you are running. An unbalanced tool holder is just as destructive to spindle bearings as a bent rotor shaft.

Conclusion

When your machine breaks down, remember that a broken CNC Spindle Motor is not a scrap piece of metal. In almost all cases, you can restore its original accuracy, power, and reliability through professional repair. By addressing bearing wear early, executing precise electrical diagnostics, keeping your cooling paths clear, and maintaining proper balance, you can bypass the immense costs of buying a new motor and maximize your return on investment.

About Huajiang Spindle

For those searching for top-tier spindle technology, repair advice, and replacement components, Zhonghuajiang Spindle is your trusted industrial partner. We design and manufacture high-performance CNC Spindle Motors built to withstand the most demanding manufacturing environments. Whether you need an upgrade to your existing machinery, specialized replacement parts, or technical guidance on keeping your spindle running smoothly, we deliver quality you can rely on.

Explore our full line of advanced high-speed spindles and support services by visiting us today at Huajiang Spindle. Let us help you keep your production lines moving with maximum efficiency.

FAQ

1. How long does a typical CNC Spindle Motor last before it needs a rebuild?

In a clean, well-maintained environment, high-quality spindle bearings can last between 6,000 and 10,000 hours of active cutting time. If the spindle is subjected to frequent crashes, poor cooling, or heavy tool imbalances, that lifespan can drop significantly.

2. Can I replace the spindle bearings myself in my own workshop?

Unless you have a clean room, a hydraulic press, an induction heater, and high-precision balancing equipment, DIY bearing replacement is highly discouraged. A microscopic dust particle entering the bearing during installation can cause it to fail in just a few hours.

3. What should I do immediately after my CNC machine crashes?

Immediately stop the spindle and do not restart it. First, visually inspect the tool holder and spindle nose for cracks or distortion. Next, mount a dial indicator and check the shaft runout. If the runout is significantly higher than normal, do not run the spindle, as spinning it will cause rapid damage to the bearings.

4. Why does my VFD keep showing an "Overcurrent" error when the spindle starts?

This error usually points to an electrical issue inside your CNC Spindle Motor. It is typically caused by a short circuit between phase windings or a breakdown of the stator's copper wire insulation. Conduct a phase resistance and insulation test to pinpoint the exact location of the short.

5. Is water-cooling better than air-cooling for a high-speed spindle?

Water-cooled spindles offer superior temperature control, making them ideal for high-speed, continuous, and heavy-duty cutting operations. However, they require more maintenance (chillers, pumps, filters). Air-cooled spindles are simpler, easier to install, and require less maintenance, but they are more sensitive to ambient workshop temperatures.
