Spindle Motor Problems And Maintenance Tips for Better CNC Cutting Performance

A small spindle motor problem can ruin an entire CNC job.

Poor spindle health affects cutting accuracy, surface finish, tool life, and RPM stability. It can also cause vibration, overheating, and costly downtime.

In this post, you’ll learn common spindle motor problems, their root causes, and practical maintenance tips.

We’ll also explain how Zhong Hua Jiang supports better CNC cutting performance with air-cooled spindle motors, water-cooled spindle motors, matched VFD inverters, P4 precision bearings, and technical support.

Common Spindle Motor Problems and Their Root Causes

A Spindle Motor rarely fails without warning. It usually gives small signs first: heat, noise, vibration, unstable RPM, or rough cutting marks. We see these issues most often during daily CNC cutting, engraving, drilling, and milling, especially when the spindle runs long hours or the setup is not matched well. The tricky part is that one symptom can have several causes. Overheating may come from cooling failure, wrong VFD settings, or worn bearings. Vibration may come from the cutter, ER collet, mounting base, or spindle shaft. That is why a clear troubleshooting path saves time and protects expensive workpieces.

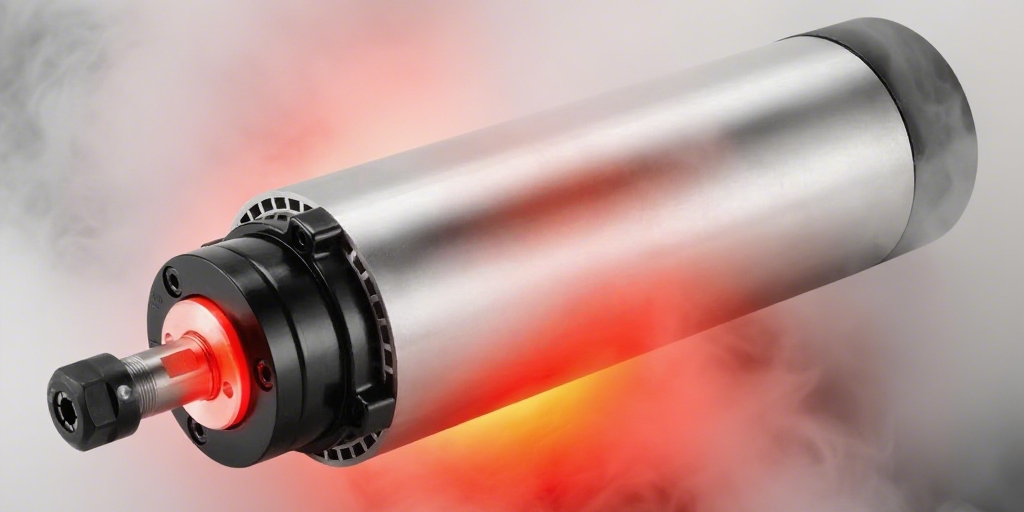

Spindle Motor Overheating

Overheating is one of the most common Spindle Motor problems. For air-cooled models, wood dust and metal debris often block fan vents. The fan may still spin, but airflow becomes weak. Heat then builds inside the spindle faster than users expect. For water-cooled spindle motors, check the water pump, coolant pipeline, and leakage points first. A clogged pipe or stopped circulation can cause dry running. Long-term operation at maximum RPM also adds risk, especially during deep cutting or hard material machining. Wrong VFD parameters can make this worse. If voltage, frequency, or current does not match the spindle nameplate, the motor may run hot. Bearing wear and insufficient lubrication also increase friction. That heat can damage windings, reduce accuracy, and shorten service life.

Excessive Vibration and Chattering During Cutting

Vibration is not only annoying; it is a warning sign. If the cutter leaves chatter marks, check the tool first. Bent, dull, or unbalanced cutting tools can shake the whole spindle system. A loose ER collet can also let the tool move under load. Next, inspect the mechanical setup. Loose mounting bolts, a weak mounting base, or shaft misalignment can create visible vibration during cutting. Worn P4 precision bearings may also allow the spindle shaft to move more than it should. Overload cutting is another common reason. If the cutting depth is too aggressive, the spindle fights the material instead of cutting cleanly. This often leads to short tool life, rough edges, and faster bearing wear.

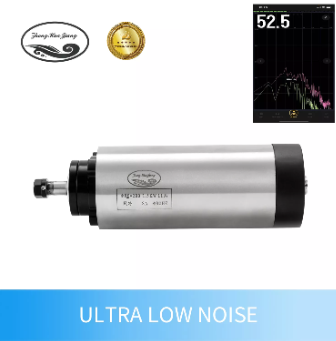

Abnormal Spindle Motor Noise

Noise tells a useful story. A rattling sound may point to loose internal parts. A grinding sound often suggests bearing wear or dried grease. A buzzing sound may come from electrical stress, poor wiring, or unstable VFD output. Dust and coolant are also big troublemakers. If sealing rings are cracked or worn, debris can enter the bearing chambers. Once that happens, grease breaks down faster, friction rises, and the noise becomes harder to ignore. Do not keep cutting when the sound changes suddenly. Stop the machine, rotate the shaft by hand, and check for roughness or binding. If the sound feels mechanical, bearings or internal components may need professional service.

Spindle Fails to Start or Stops Mid-Cutting

When a Spindle Motor fails to start, begin at the VFD display. Fault alarms often point to overload, overheating, wrong parameters, or electrical protection. This is especially important when using a matched VFD inverter, because the drive controls startup, acceleration, RPM, and torque. Then check the simple things. Loose power terminals, damaged shielded cables, poor grounding, or oxidation can cause unstable startup. These small issues are easy to miss, but they can stop production for hours. For water-cooled models, stopped coolant circulation may trigger protection during machining. Damp motor windings are more serious. They can lead to insulation failure, short circuit risk, and sudden shutdown under load.

Unstable RPM and Torque Loss

Unstable RPM usually shows up as uneven cutting depth or inconsistent material removal. The spindle may sound fine at idle, then slow down once the cutter touches the workpiece. In many cases, the problem is not the spindle alone. Check input voltage first. Fluctuating supply voltage can weaken torque and cause speed drift. Then review VFD settings. If parameters were reset after a power cut, the motor may lose its correct frequency, current, or acceleration behavior. Mechanical resistance can also cause torque loss. A bearing jam, over-tight collet, dull cutter, or heavy cutting load forces the motor to work harder. If the setup is wrong, even a good spindle may feel weak.

Poor Cutting Precision and Scratched Workpiece Surface

Poor precision often starts at the spindle nose. Metal chips, coolant residue, or dust on the spindle taper can stop the tool holder from seating correctly. Even a tiny particle can create tool wobble at high speed. Bearing clearance is another key factor. After long use, worn bearings may increase shaft runout. This creates burrs, scratches, rough edges, and uneven engraving depth. Zhong Hua Jiang spindle motor materials highlight low runout control and P4 precision bearings for stable CNC cutting performance. Thermal expansion can also shift accuracy during long jobs. If overheating is not solved, the spindle body expands, the tool position changes, and finished parts become inconsistent. For precision work, clean taper surfaces, stable cooling, correct VFD settings, and proper bearing condition all matter together.

Cooling System Maintenance for Air-Cooled and Water-Cooled Spindle Motors

A Spindle Motor works under heat, speed, and cutting pressure every day. If the cooling system is weak, the spindle may still run, but cutting quality will slowly drop. You may see rough edges, unstable RPM, shorter bearing life, or sudden shutdown during a long job. Good cooling keeps the spindle stable, protects internal bearings, and helps the tool cut cleaner for longer. For CNC workshops, cooling maintenance is not only about avoiding heat. It is also about keeping production predictable. A blocked fan, leaking pipe, or wrong VFD setting can turn a simple cutting job into downtime. Zhong Hua Jiang highlights cooling inspection as a key part of spindle maintenance, especially for air-cooled and water-cooled spindle models used in cutting, engraving, and milling.

Air-Cooled Spindle Motor Maintenance

Air-cooled spindle motors are simple to use, but they still need steady cleaning. The first thing to check is the fan vent area. Wood dust, MDF powder, acrylic chips, and metal debris can collect fast. Once airflow drops, the Spindle Motor runs hotter under the same cutting load. A good daily habit is easy. Wipe the fan vents before starting work. Then run the spindle briefly and listen to the fan. If rotation sounds weak, rough, or uneven, stop and inspect it before cutting. Do not wait until the spindle housing becomes too hot to touch. Zhong Hua Jiang air-cooled spindle motors use a dust-proof fan structure. This helps reduce daily maintenance pressure in small workshops and CNC router setups. They are a practical choice when users want simple installation, no water pump, and fewer cooling accessories. Still, heavy dust jobs need regular cleaning. Avoid long-term overload cutting. Air cooling works best when the cutting depth, feed rate, and RPM stay within a safe range. If the tool is dull or the cut is too deep, the fan cannot solve everything. The motor will heat up, and bearings may wear faster.

Water-Cooled Spindle Motor Maintenance

Water-cooled spindle motors are better for long-hour cutting and heavy machining. They are often used for aluminum, brass, mild steel precision milling, and high-standard surface finish work. Their cooling system can keep temperature more stable, but only when water circulation is clean and continuous. Before machining, run the water pump for several minutes. Confirm the coolant is moving through the pipe. Watch for bubbles, weak flow, leakage, or unusual pump noise. If the flow stops during cutting, the spindle may overheat quickly. Pipeline clogging is a common hidden issue. Dirt, algae, or coolant residue can narrow the flow path. Use clean water or proper coolant additive, based on the spindle supplier’s guidance. Check pipe bends too, because tight bends can slow circulation. Coolant leakage should never be ignored. Even small leaks can reduce flow and wet electrical areas. They may also allow coolant residue to reach the spindle body. If seals, pipes, or joints look worn, replace them before production starts.

How to Prevent Spindle Overheating During CNC Cutting

Heat control starts before the tool touches the material. Match the RPM to the material, cutter size, and cutting depth. Do not push maximum RPM for long periods when the job does not need it. For harder materials, reduce cutting depth and let the spindle work in a safer load range. Use the matched VFD settings for the Spindle Motor. Incorrect voltage, frequency, acceleration, or current values can create extra heat. If parameters change after a power cut, check them again before running production. This small step can prevent many shutdowns. Bearing lubrication also affects temperature. Too little grease increases friction. Too much grease creates drag and heat. Use the recommended high-speed bearing grease, then follow the correct maintenance interval. If you hear grinding or feel rough rotation, inspect the bearings before the next job.

• Keep fan vents or coolant channels clean before each shift. This is the fastest way to reduce preventable heat. It also helps the spindle keep stable RPM during long cuts.

• Give the spindle short rest periods during heavy work. This matters more when cutting thick stock, hard materials, or long tool paths. It protects bearings and reduces thermal expansion.

• Stop immediately after overheating alarms or abnormal vibration. Do not finish the cut first. A short pause may save the spindle, the tool, and the workpiece.

Bearing, Runout, Collet, and Tooling Checks for Better Precision

A Spindle Motor does not work alone. Its accuracy depends on several small mechanical parts working together. Bearings, runout, collets, tool holders, and cutting tools all affect the final surface finish. If one part is dirty, loose, or worn, the whole cutting result can change. In daily CNC work, many “spindle problems” are not motor power problems. They often come from poor clamping, bearing wear, dirty taper surfaces, or unbalanced tools. These small issues create vibration, scratches, tool marks, and unstable cutting depth. Zhong Hua Jiang highlights P4 precision bearings, low runout control, and regular runout checks as key points for stable CNC cutting.

Why P4 Precision Bearings Matter

P4 precision bearings are small, but they do heavy work. They support the spindle shaft at high speed. If they stay stable, the Spindle Motor can cut smoothly and hold better accuracy. Good bearings help reduce vibration and control spindle runout. This matters when users cut wood, acrylic, MDF, aluminum, brass, or other materials. Less vibration usually means cleaner edges, better surface finish, and longer tool life. Zhong Hua Jiang uses P4 grade precision bearings in its spindle motor products. This supports low runout performance and high cutting accuracy. For buyers, it means the spindle is built for more than speed. It is also built for stability.

How to Check Spindle Runout

Spindle runout means the shaft or tool does not rotate perfectly straight. Even tiny runout can leave marks on the workpiece. It can also wear tools faster, especially during engraving or precision milling. A dial indicator is the common tool for checking it. First, clean the spindle taper and tool holder. Then fix the dial indicator near the spindle shaft or test bar. Rotate the shaft slowly by hand and watch the reading. If runout is higher than 0.005mm, do not ignore it. It may point to bearing wear, poor tool seating, or shaft damage. Users should arrange bearing inspection or replacement before precision work continues.

How to Maintain the Spindle Taper and ER Collet

The spindle taper and ER collet should be cleaned before operation. Use a dry, clean cloth to remove chips, dust, and coolant residue. This is simple work, but it prevents many cutting problems. ER11 and ER20 collets need extra care. A dirty collet may not clamp the tool evenly. A loose collet can let the cutter move during cutting. Once the tool moves, scratches and chatter marks appear fast. Do not use damaged collets for fine cutting. Check for cracks, worn threads, and poor spring force. Also clean the tool holder before installation. A clean contact surface helps the tool sit straight and reduces spindle load.

• Clean the taper before every important job. Small chips can create big errors at high RPM. This is especially important for engraving and fine milling.

• Tighten the ER collet correctly. Over-tightening may damage the collet. Under-tightening may cause tool slipping.

• Keep coolant away from bearing areas. Residue can collect near the spindle nose. Over time, it may affect clamping and rotation.

How Cutting Tools Affect Spindle Motor Vibration

Cutting tools decide how much load the Spindle Motor must carry. A dull cutter increases resistance. A bent cutter creates vibration. An oversized tool may overload the spindle during deep cuts. Balanced tools are safer for high-speed cutting. They help the spindle rotate smoothly and protect the bearings. Correct tool diameter also matters. A small spindle should not handle aggressive cuts made for heavy industrial machines. Feed rate and cutting depth need to match the material. Harder materials need lighter passes. Softer materials may allow higher RPM, but the setup still needs control. If chatter starts, reduce depth first, then check tool balance and clamping.

Conclusion

Proper Spindle Motor maintenance keeps CNC cutting stable, clean, and predictable.

It reduces overheating, controls vibration, protects bearings, and keeps shaft runout within a safer range.

Do not judge a spindle only by power or maximum RPM.

Check cooling, VFD matching, bearing quality, collet condition, cutting load, and maintenance schedule.

For reliable air-cooled spindle motors, water-cooled spindle motors, matched VFD kits, OEM/ODM customization, and technical support, contact Zhong Hua Jiang.

FAQ

Q: What are the most common spindle motor problems in CNC machines?

A: Overheating, vibration, abnormal noise, startup failure, unstable RPM, torque loss, and poor cutting precision.

Q: Why does my spindle motor overheat during cutting?

A: Blocked fan vents, poor coolant flow, wrong VFD settings, overload cutting, or worn bearings.

Q: How can I reduce spindle motor vibration and chatter?

A: Use balanced tools, tighten ER collets, check mounting bolts, and avoid deep overload cuts.

Q: What causes abnormal spindle motor noise?

A: Bearing wear, dry grease, damaged seals, dust, coolant debris, or loose internal parts.

Q: Why does my spindle motor stop suddenly during machining?

A: VFD alarms, loose wiring, damaged cables, damp windings, or stopped coolant circulation.
