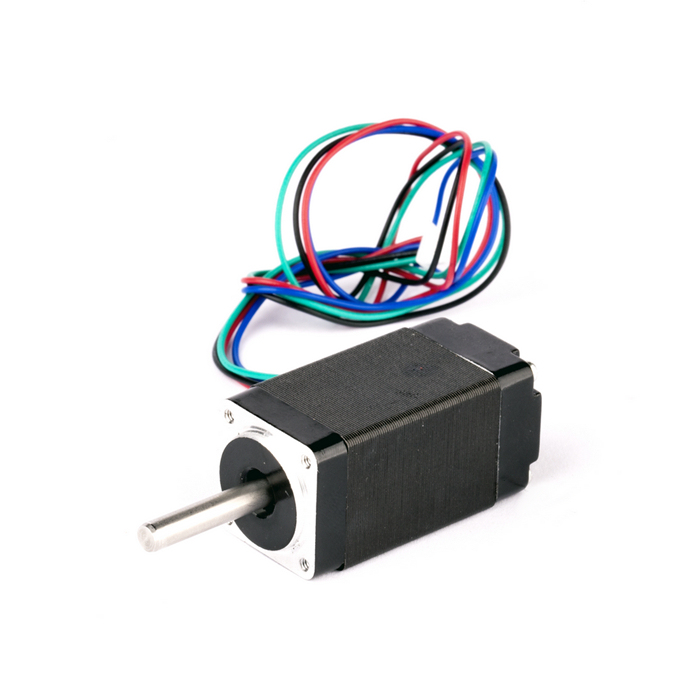

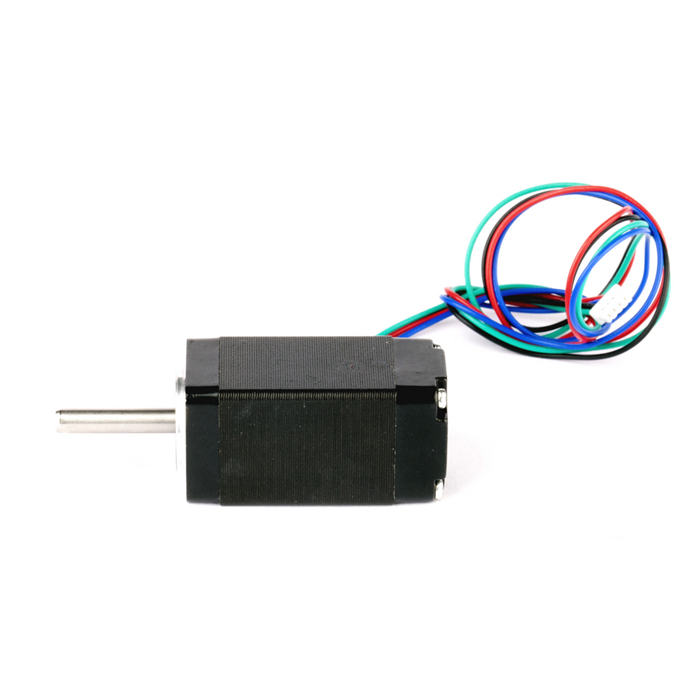

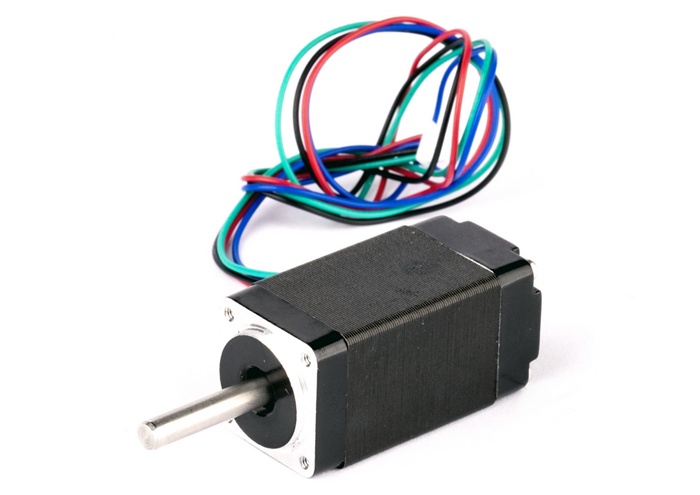

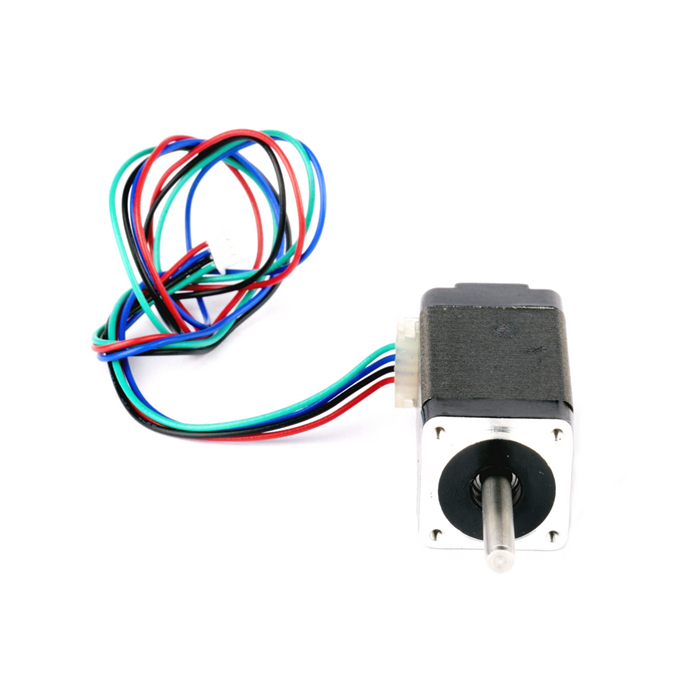

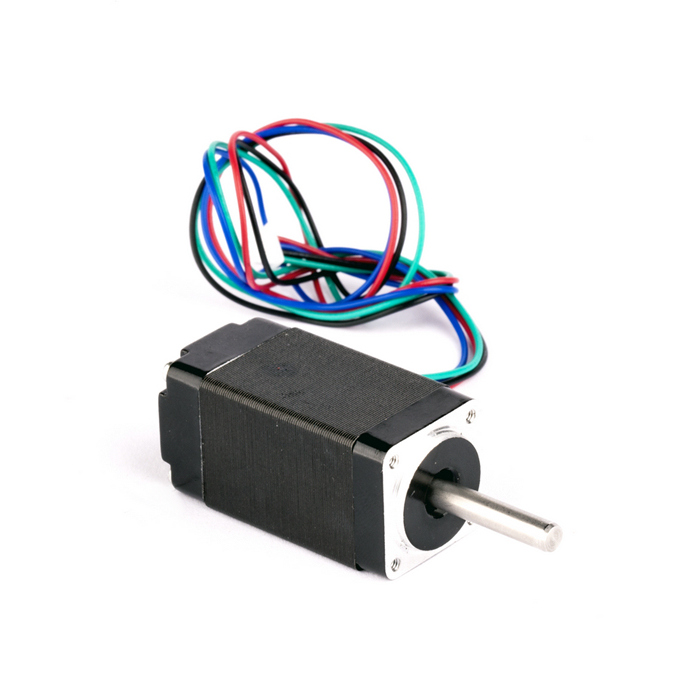

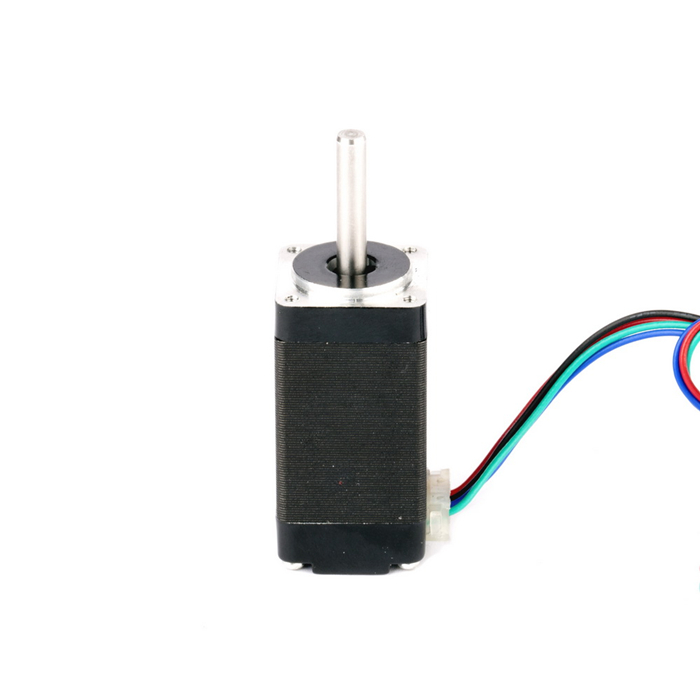

8HS4406
Zhong Hua Jiang
3.3V
50G
0.6A
60mm

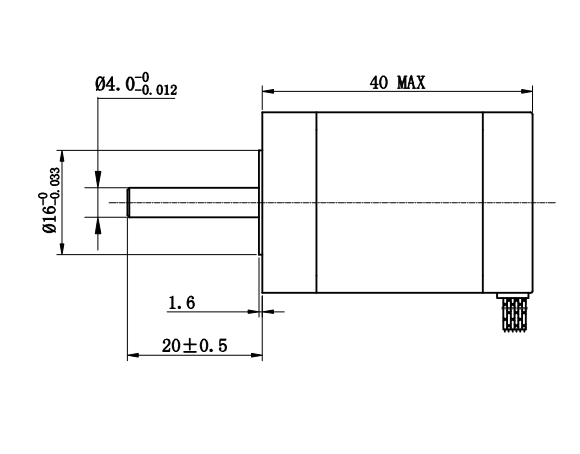

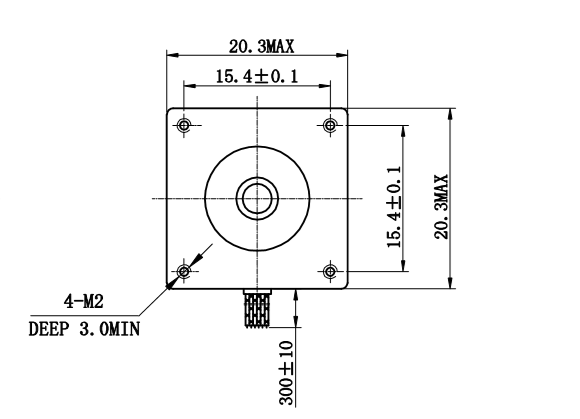

| Quantity: | |
|---|---|
| Item |
| Model No. | Step Angel | Motor Length | Voltage | Current | Resistance | Inductance | Holding Torque | Inertia | Weight |
| (°) | (L)mm | V | A | Ω | mH | mN.m | g.cm² | G | |
| 8HS4406 | 1.8 | 60 | 3.3 | 0.6 | 5.5 | 2.3 | 26 | 4.5 | 50 |
Above only for representative products, products of special request can be made according to the customer request.
| Insulation Level | Insulation Voltage | Insulation Resistance |
| Class B | 500V A.C 1 Minute | Above 100 MΩ |
| Class F | 500V A.C 1 Minute | Above 100 MΩ |
Insulation Level:
The insulation level of an electric motor refers to the heat resistance level of the insulation material used, which is divided into A、E、B、F and H. Allowable temperature rise refers to the limit at which the temperature of the electric motor increases compared to the ambient temperature.
| Temperature class of insulation | A Level | E Level | B Level | F Level | H Level |
| Maximum allowable temperature (℃) | 105 | 120 | 130 | 155 | 180 |
| Winding temperature rise limit (K) | 60 | 75 | 80 | 100 | 125 |
| Performance reference temperature (℃) | 80 | 95 | 100 | 120 | 145 |
| Step Angle Accuracy | ±5% |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Temperature Rise | 80°C Max. |
| Ambient Temperature | -20°C~+50°C |
| Insulation Resistance | 100MΩ Min 500V DC |
| Dielectric strength | 500V AC 1 Minute |
| Allowable Radial Load | 20N |
| Allowable Thrust Load | 2N |
