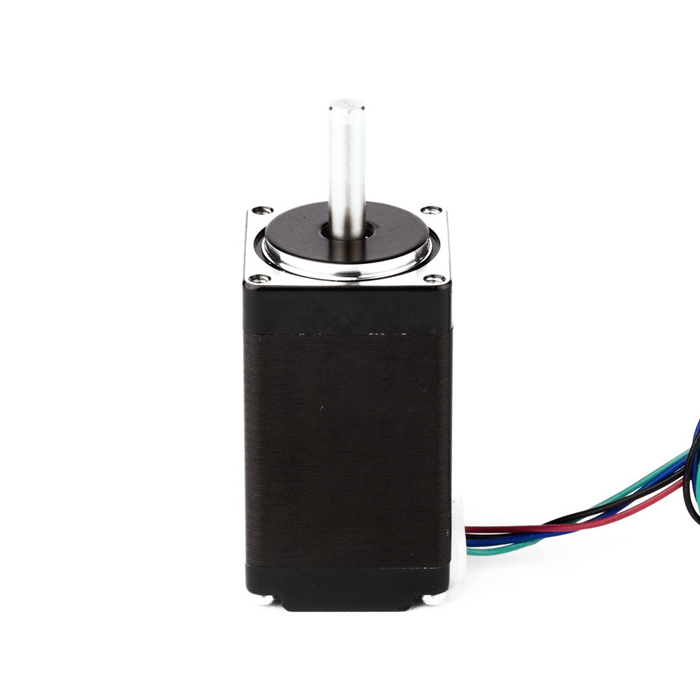

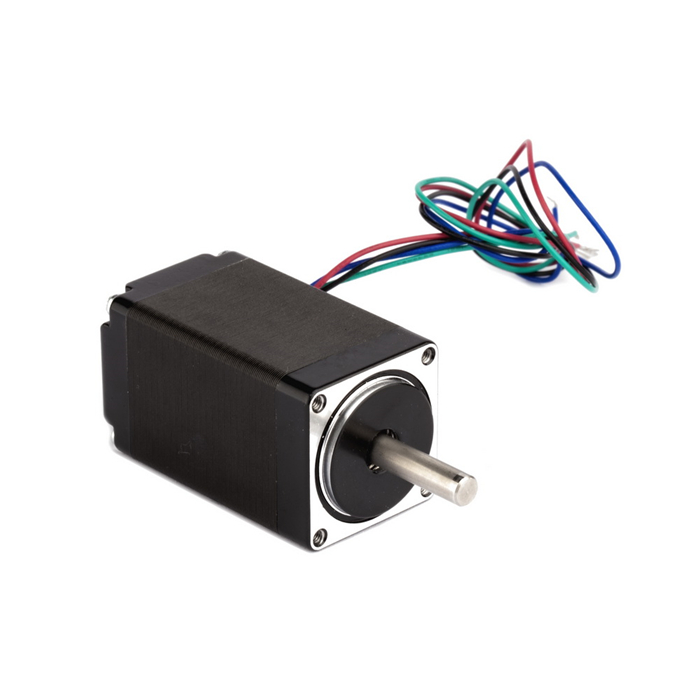

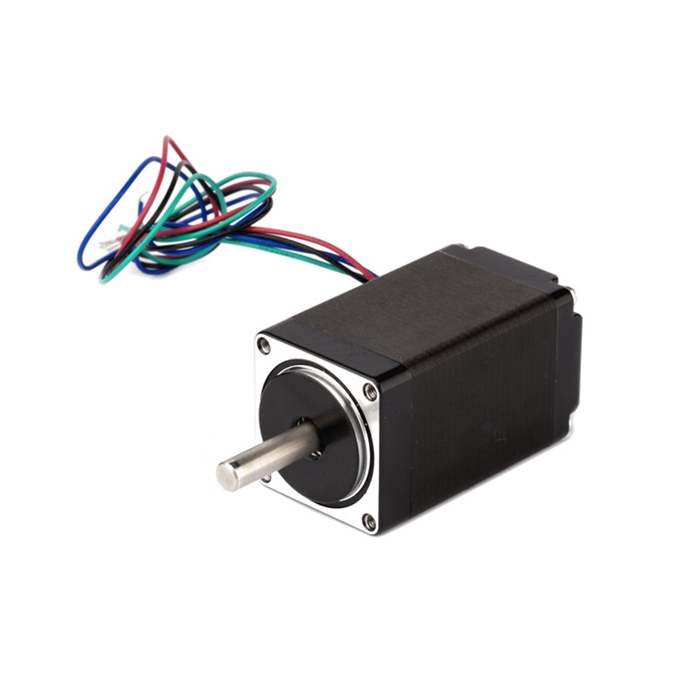

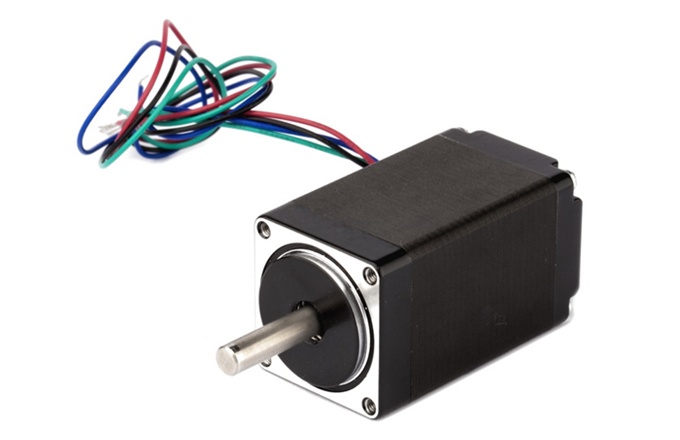

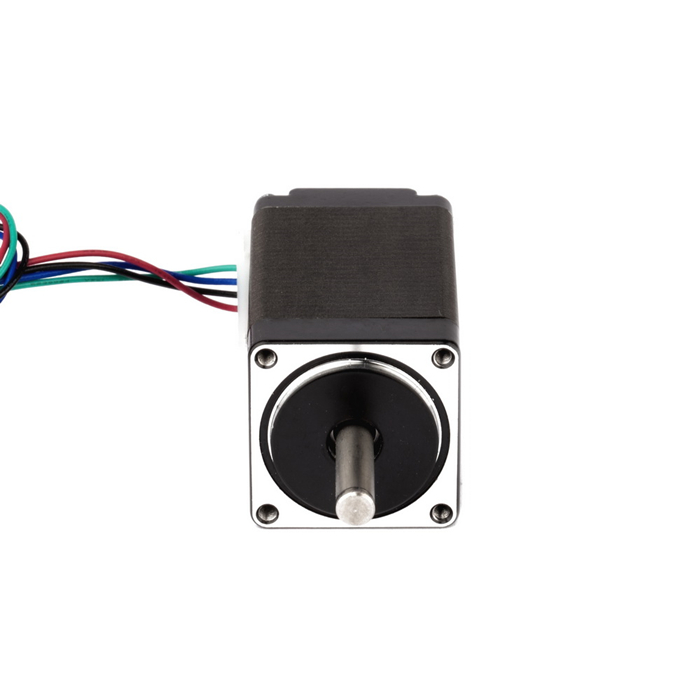

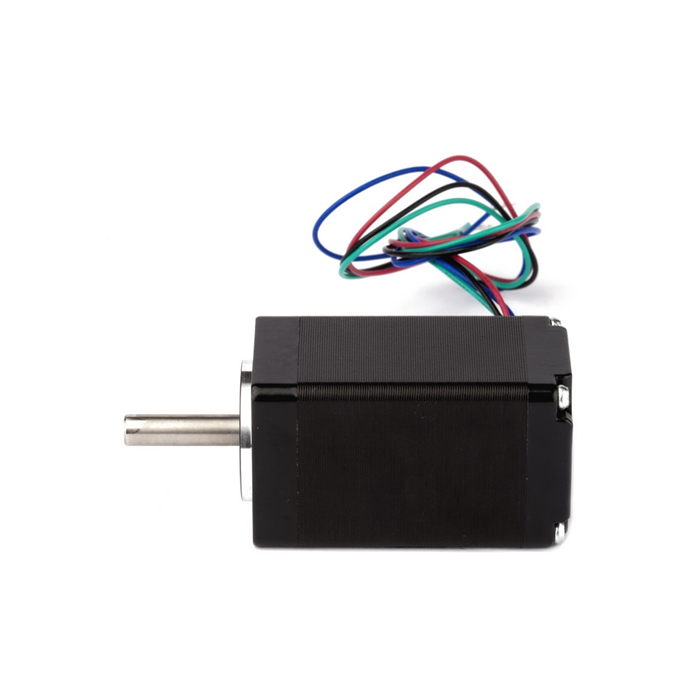

NEMA 28 Stepper Motor 6.2V High Torque 1.8° 2-Phase Hybrid Stepper for CNC, 3D Printer, Robotics, Automation, DIY Projects

  01    General Specification

This NEMA 28 high torque 2 phase hybrid stepper motor is designed for precision motion control applications requiring compact size, stable torque, and reliable positioning. It is suitable for CNC equipment, automation systems, robotics, packaging machinery, medical equipment, and custom motion control projects.

  02    Electrical Specification

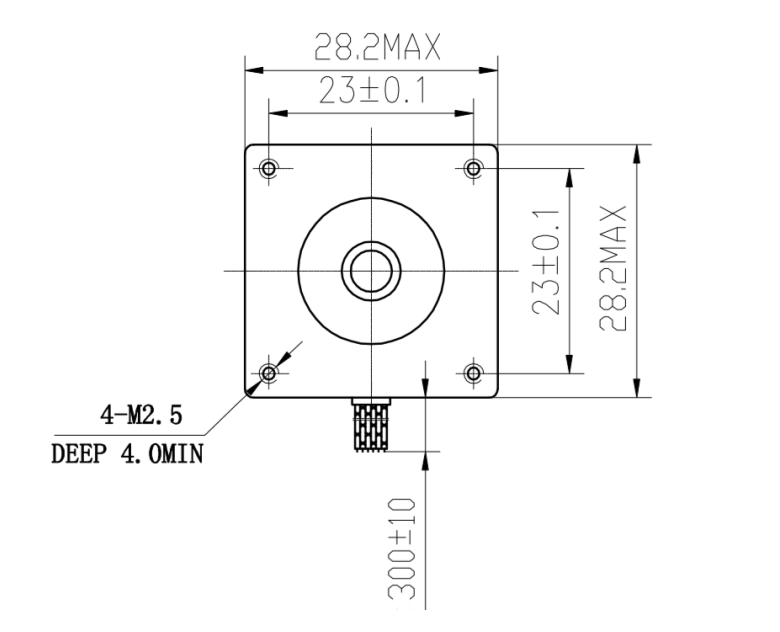

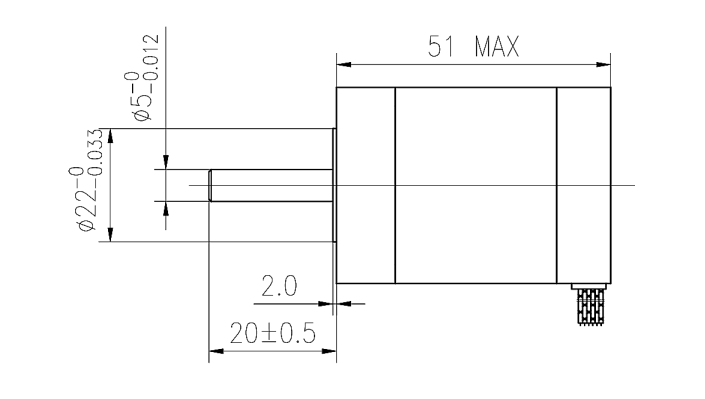

  03    Dimension

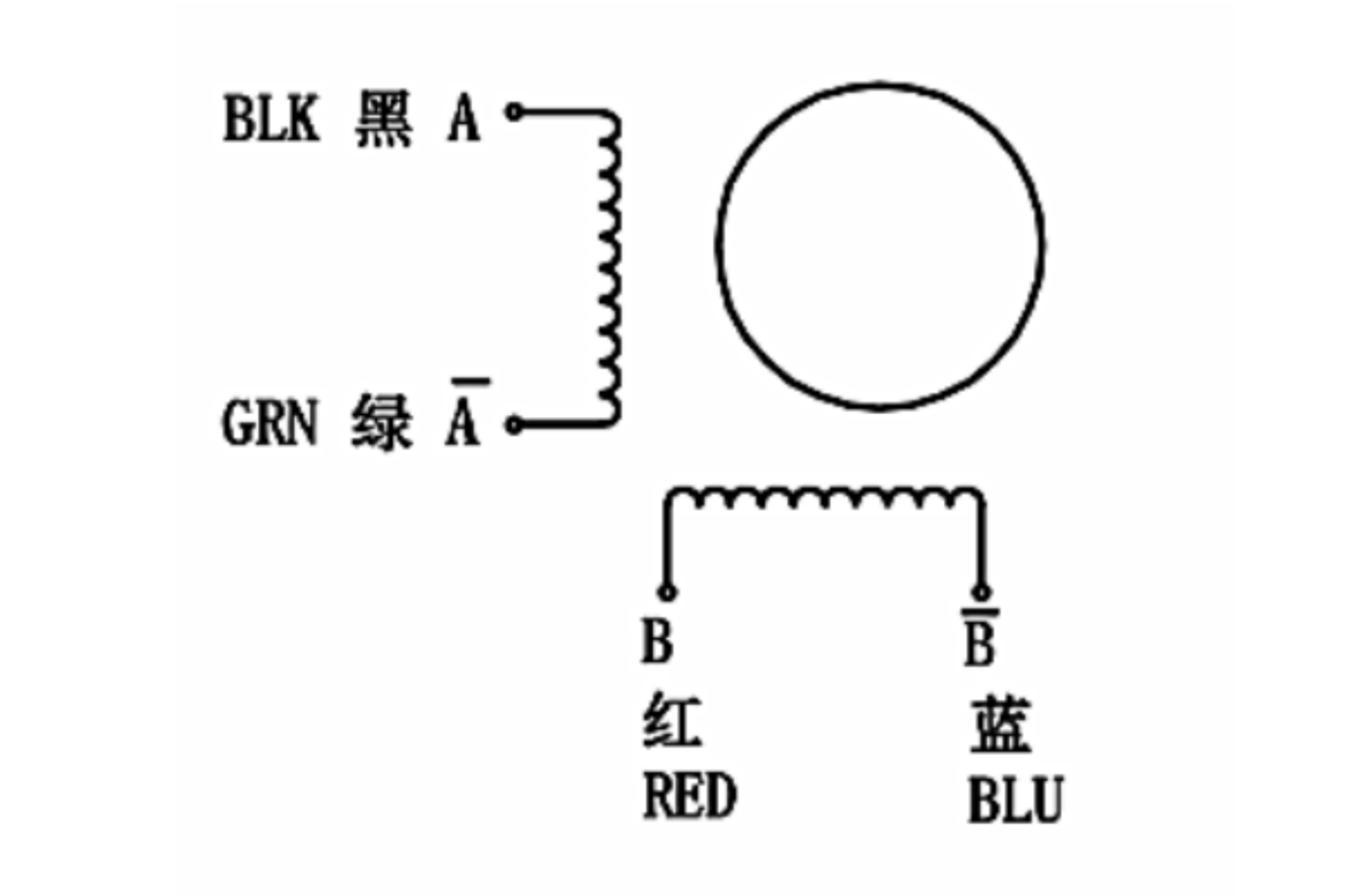

  Wiring Diagram

  04    Technology Conditions

  05    Product Advantages

• 2 phase hybrid stepper motor for precision motion control.

• 1.8° step angle for stable positioning and smooth operation.

• Compact NEMA 28 frame size for equipment with limited installation space.

• 120mN.m holding torque for small automation and CNC applications.

• Class B insulation and 500V AC dielectric strength for reliable operation.

• Suitable for OEM stepper motor projects, CNC motion systems, and automation equipment.

  06    Applications

• CNC router and CNC engraving machine axis control

• 3D printer and small automation equipment

• Robotics and precision positioning systems

• Packaging machinery and labeling equipment

• Medical equipment and laboratory instruments

• Custom OEM motion control systems

  07    Product Certificate

  FAQ

What is the step angle of this NEMA 28 stepper motor?

The step angle is 1.8° ±5%, which supports precise positioning for CNC, automation, robotics, and motion control applications.

What is the rated voltage and current?

The rated voltage is 6.2V and the rated current is 0.67A.

What is the holding torque of this motor?

The holding torque is 120mN.m, suitable for compact precision motion systems requiring stable torque output.

What applications is this 2 phase hybrid stepper motor suitable for?

It is suitable for CNC machines, automation equipment, robotics, 3D printers, packaging machinery, laboratory instruments, and OEM motion control systems.

Does this page include the wiring diagram and dimension drawing?

Yes. The product page includes mechanical dimension drawings and a wiring diagram to help engineers confirm installation space and wiring requirements.
