How To Improve Desktop CNC Engraving Quality: Tool Choice, Feed Rate, Z-Height, And Workholding

A tiny engraving error can turn sharp lettering into fuzzy, uneven marks. The frustrating part is rarely one bad setting. Tool geometry, feed rate, Z-height, machine condition, and workholding influence each other.

Improving Desktop CNC Engraving quality requires an ordered setup process. Random adjustments often hide the real cause and waste more material.

This guide explains how to select tools, balance cutting parameters, set depth, and secure stock. You will also learn how to diagnose common finish problems before running another job.

Diagnose the Whole Desktop CNC Engraving Setup First

Clean engraving depends on an accuracy chain stretching from the design file to the workpiece. A weak link changes line width, depth, edge quality, or repeatability. Therefore, inspect the complete setup before editing feed rate or spindle speed.

Begin inside your CAD/CAM software. Remove duplicate vectors, close V-carve regions, and confirm the selected tool matches your installed cutter. Preview the toolpath for unexpected plunges, missed lines, reversed depths, and clamp collisions.

Next, inspect the machine while its power is safely isolated. Clean the collet and tool shank, then check bearings and axis components for play. Excessive CNC spindle runout makes a fine tip orbit instead of rotating cleanly.

Check machine tramming if flat pockets show ridges or one side cuts deeper. The spindle should stand square to the work surface. Surface the spoilboard whenever it no longer runs parallel to X and Y movement.

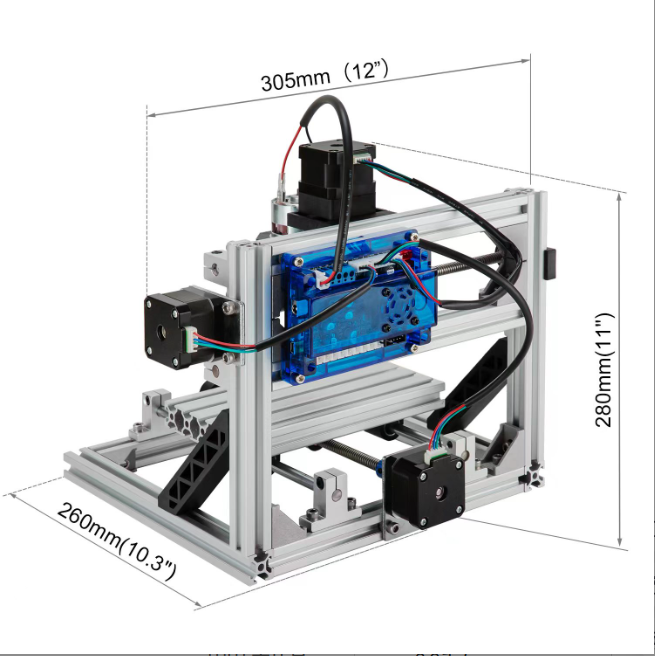

Frame rigidity also affects Desktop CNC Engraving quality. The official Zhong Hua Jiang product information connects stable motion, spindle condition, tool selection, and setup quality with repeatable results. That relationship matters more than any advertised maximum speed.

Run a simple baseline test after these checks. Engrave identical lines across the material using one conservative toolpath. If line width changes by position, investigate flatness, tram, Z motion, or workholding before changing cutting parameters.

Choose the Right Engraving Tool for the Material and Detail

The best bit for CNC engraving depends on line width, material, depth, and desired finish. A cutter made for broad wood lettering may destroy tiny PCB traces. Likewise, a fragile pointed tool can fail during deep clearing.

V-bit angle directly controls the relationship between depth and width. A 30-degree tool reaches narrow details but has a delicate point. A 60-degree or 90-degree tool creates wider marks and usually offers greater tip strength.

Tool material and coating also matter. Sharp carbide commonly suits wood, plastics, and nonferrous metals, but the exact geometry must match the job. This The Experts' Guide to CNC Engraving - In The Loupe explains how tip design, coating, entry, and depth influence tool life.

Keep tool stickout as short as safe clearance allows. Extra length increases leverage, vibration, and deflection. Never clamp on a cutting flute, and replace any collet showing wear, damage, or embedded debris.

Zhong Hua Jiang lists multiple compact configurations in its Desktop CNC router range. Listed uses include wood, acrylic, plastics, and light aluminum work. However, spindle capability does not replace correct CNC engraving tool selection.

Test a new cutter on matching scrap. Inspect the line under bright light, then check burrs, fuzzing, melting, and tip damage. Record its material, angle, tip size, flute count, stickout, and successful depth.

Balance Feed Rate, Spindle Speed, and Chip Load

Feed rate shows how quickly the cutter moves through the material. Spindle speed describes tool rotation in revolutions per minute. Their relationship determines how much material each cutting edge removes.

That amount is called chip load. The basic CNC chip load formula is:

Chip Load = Feed Rate ÷ (RPM × Number of Flutes)

Use this equation as a starting framework, not a universal answer. Desktop machines differ in rigidity, spindle torque, toolholding, and acceleration. Material grades also behave differently, even when their names appear identical.

Very small chip load makes the edge rub instead of cut. Rubbing produces heat, dulls the tool, burns wood, and melts plastic. Excessive chip load raises cutting force, causing chatter, deflection, rough edges, or broken tips.

The safest starting values come from the cutter manufacturer. Keep its recommended material, diameter, flute count, and depth assumptions in view. A general Understanding CNC Feeds and Speeds | Toolstoday also explains why charts remain starting points rather than final settings.

Use a controlled test grid to tune Desktop CNC Engraving:

1. Cut several short lines in matching scrap.

2. Keep the tool, depth, and workholding unchanged.

3. Change only feed rate across the first group.

4. Change only spindle speed across the second group.

5. Compare sound, chips, line width, heat, and finish.

Healthy cutting produces defined chips and a steady sound. Fine engraving may create very small chips, yet it should not generate only scorched dust. Acrylic chips should clear before the cutter recuts and reheats them.

Use shallow engraving passes whenever tip strength or machine rigidity is limited. Reduce plunge rate because a delicate tip receives its highest load during direct entry. A short ramp can soften engagement when the toolpath and material permit it.

Do not automatically lower feed when burning begins. That change may reduce chip load further and create more rubbing. Instead, confirm sharpness and chip evacuation, then adjust the feed-to-RPM balance.

Record every successful combination. Include material source, cutter code, RPM, feed, plunge, pass depth, stepover, and holding method. Those notes turn future setup from guessing into repeatable CNC engraving.

Set Z-Height and Engraving Depth Consistently

Z-height calibration controls where the tool meets the material. Small errors become obvious during V-carving because a tapered tool cuts wider as it moves deeper. Uneven V-carve depth usually begins with surface or reference errors.

First, verify the spoilboard is parallel to machine travel. Then inspect the workpiece for bow, twist, debris, and uneven tape. Surfacing the spoilboard cannot correct a warped board sitting above it.

Set Z-zero from the same reference selected in CAM. For shallow engraving, the material top is often the clearest reference. For through-cuts, the spoilboard surface can protect final depth, but measured stock thickness must remain accurate.

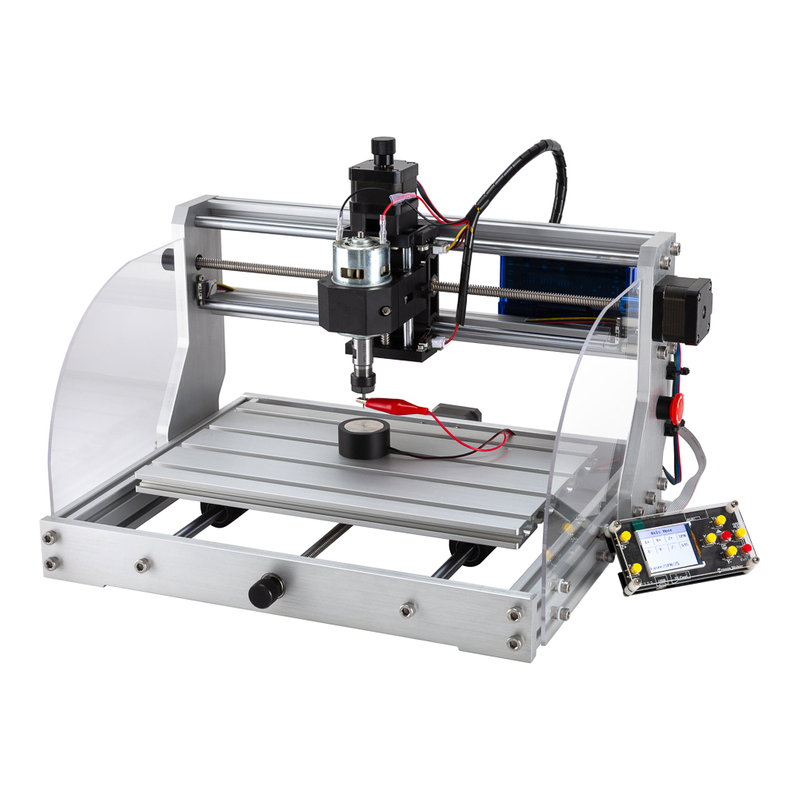

A touch probe provides fast, repeatable measurement when correctly calibrated. Without one, lower the tool slowly onto paper or a clean feeler gauge. Account for that gauge thickness instead of treating contact as exact zero.

Follow this Z-height setup sequence:

1. Clean the spoilboard, stock, cutter, and probe surface.

2. Secure the material before measuring its top.

3. Jog downward using increasingly smaller steps.

4. Set Z-zero and verify the displayed coordinate.

5. Re-zero after each manual tool change.

6. Run an air cut when depth or clearance seems uncertain.

Double-sided tape and fixture layers alter the real work height. Overlapping tape can tilt thin stock, while trapped chips create local high points. Measure intentional fixture thickness whenever CAM depends on the machine bed reference.

Deep engraving should usually use multiple passes. A large first pass increases tip load and may pull the cutter upward inside a weak collet. Shallow passes reduce force and reveal setup errors before the workpiece is ruined.

Warped PCB blanks and thin sheet require extra care. Probe several surface points or use height mapping when supported. This lets the tool follow small surface changes while maintaining a more consistent PCB engraving depth.

After zeroing, engrave a shallow line near several workpiece corners. Unequal width points toward surface tilt, bowing, tram error, or Z-axis movement. Correct that mechanical cause before adding an artificial depth offset.

Use Workholding That Prevents Movement and Bowing

Good CNC workholding prevents sliding, lifting, and vibration without bending the material. A part may feel secure by hand yet move under repeated cutting force. Thin stock can also bow between clamps and change engraving depth.

Choose the method around stock shape, cutting force, and access:

• Top or side clamps: They hold rigid plates securely and support quick adjustments. Place them close enough to control vibration, but outside every cutting and rapid path.

• Double-sided tape: It suits thin, flat parts and broad contact areas. Apply clean strips without overlaps, wrinkles, dust, or gaps that tilt the surface.

• Tape-and-glue method: It gives strong, low-profile holding for small parts. Use an adhesive system compatible with the material, spoilboard, and shop safety rules.

• Fixtures and locating pins: They improve repeat jobs and preserve a known X/Y origin. Confirm every locating surface is clean before loading the next part.

• Vacuum holding: It provides open tool access across sheet material. Its success depends on surface area, sealing, porosity, and expected cutting force.

Run the CAM simulation after positioning every clamp. Check cutting paths, rapid moves, retract height, and tool-change clearance. Low-profile hardware still causes crashes when its position is missing from the setup plan.

Avoid forcing warped material flat from only two edges. That stress can lift the center during machining. Use distributed pressure, a fixture plate, or supported adhesive holding instead.

Complete this preflight check before pressing start:

1. Push the stock gently in several directions.

2. Confirm clamps cannot enter the toolpath.

3. Rotate or jog the spindle through safe clearance positions.

4. Verify X, Y, and Z-zero against the CAM origin.

5. Start dust extraction or suitable chip control.

6. Stay beside the machine during the test cut.

Zhong Hua Jiang began with engraving spindle motors before expanding into VFDs and CNC machines. Operators comparing equipment or setup options can review its official website and discuss their material, tool, working area, and production needs.

Conclusion

Better Desktop CNC Engraving comes from controlling the complete cutting system. Match the tool to the material, balance chip load, establish repeatable Z-height, and secure flat stock.

Test in scrap before valuable work begins. Change one variable at a time, inspect the evidence, and record every successful setup. Those habits produce cleaner marks and fewer rejected parts.

FAQs About Desktop CNC Engraving

Q: What is the best bit for fine Desktop CNC Engraving?

A: Use a narrow V-bit or small engraving cutter for detailed lines. Choose tip angle and width around the material and minimum feature size. A 30-degree V-bit reaches fine details but remains depth-sensitive. Wider V-bits provide stronger tips and broader lettering. Use a flat end mill when constant groove width matters.

Q: Why is my CNC engraving depth uneven?

A: Common causes include warped stock, poor Z-zero, overlapping tape, and loose Z components. An unsurfaced spoilboard or tool movement inside the collet also changes depth. Check surface parallelism before adding a depth offset. Engrave test lines across several positions. Changing width by location usually signals a mechanical or workholding problem.

Q: How do I choose feed rate and spindle speed?

A: Begin with the cutter manufacturer’s recommendations for your tool and material. Use chip load to connect feed, RPM, and flute count. Then make shallow test cuts in matching scrap. Inspect chips, sound, heat, and edge quality. Change one variable per test and record the best result.

Q: Should I set Z-zero on the material or the spoilboard?

A: Use the reference selected in CAM. The material top is convenient for shallow engraving and precise surface depth. The spoilboard helps control through-cut depth, but it requires accurate material thickness. Whichever reference you choose, secure the stock first and re-zero after manual tool changes.

Q: How can I stop acrylic from melting during engraving?

A: Use a sharp O-flute or another cutter designed for plastics. Clear chips continuously and prevent recutting. Excessive RPM combined with low feed can create rubbing and heat. Test a more suitable feed-to-RPM balance without exceeding machine or tool limits. Keep passes shallow if rigidity is limited.

Q: What workholding method is best for thin material?

A: Clean double-sided tape or a compatible tape-and-glue method often works well. Apply support evenly so the sheet remains flat. Low-profile fixtures or vacuum holding can improve repeatability for batch work. Avoid clamp pressure that bows the center, and always verify toolpath clearance before cutting.
